RESEARCH/REVIEW ARTICLE

The oldest elasmosaurs (Sauropterygia, Plesiosauria) from Antarctica, Santa Marta Formation (upper Coniacian? Santonian–upper Campanian) and Snow Hill Island Formation (upper Campanian–lower Maastrichtian), James Ross Island

José P. O'Gorman^1,2

¹ División Paleontología Vertebrados, Museo de La Plata, Universidad Nacional de La Plata, Paseo del Bosque s/n., B1900FWA, La Plata, Argentina
² Consejo Nacional de Investigaciones Científicas y Técnicas Av. Rivadavia 1917 C1033AAJ, Buenos Aires, Argentina

Abstract

Elasmosaurs are recorded for the first time in the Lachman Crags Member (Beta Member) of the Santa Marta Formation (lower Campanian) and in the Herbert Sound Member of the Snow Hill Island Formation (upper Campanian). These are the first elasmosaurids from James Ross Island, Antarctic Peninsula. These records greatly improve our knowledge of the taxonomic diversity of plesiosaurs of the Santa Marta Formation and Herbert Sound Member of the Snow Hill Island Formation, and extend the lower limit of the record of Elasmosauridae in Antarctica to the lower Campanian, making this the oldest record of an Antarctic elasmosaur.

Keywords
Elasmosauridae; Antarctica; Late Cretaceous.

Correspondence
José P. O'Gorman, División Paleontología Vertebrados, Museo de La Plata, Universidad Nacional de La Plata, Paseo del Bosque s/n., B1900FWA, La Plata, Argentina. E-mail: joseogorman@fcnym.unlp.edu.ar

(Published: 30 October 2012)

Polar Research 2012. © 2012 J.P. O'Gorman. This is an open-access article distributed under the terms of the Creative Commons Attribution-Noncommercial 3.0 Unported License (http://creativecommons.org/licenses/by-nc/3.0/), permitting all non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Citation: Polar Research 2012, 31, 11090, http://dx.doi.org/10.3402/polar.v31i0.11090

Plesiosaurs are a clade of reptiles adapted to the marine environment. Their record extends from the Upper Triassic to the Upper Cretaceous and their geographical distribution is cosmopolitan, having been recorded in all continents, including Antarctica (Welles 1952, 1962; Persson 1963; del Valle et al. 1977; Brown 1981; Carpenter 1996, 1999; Bardet et al. 1999; Fostowicz-Frelik & Gazdicki 2001; O'Keefe 2001, 2004; Kear 2003; Ketchum & Benson 2010; Vincent et al. 2011).

The stratigraphic range of the Elasmosauridae, one of the best represented plesiosaur groups, is under debate because it depends largely on which genera are considered as belonging to this family (Ketchum & Benson 2010). According to different authors, their stratigraphic range could be Toarcian–Maastrichtian (Brown 1993), Valanginian–Maastrichtian (O'Keefe 2001) or Aptian–Maastrichtian (Ketchum & Benson 2010). However, all authors agree that Elasmosauridae became cosmopolitan during Late Cretaceous times. In the present article, the Elasmosauridae family is understood in a general way in the sense used by Ketchum & Benson (2010).

Elasmosaurs are characterized by the development of a cervical region with (1) a high number of cervical vertebrae (reaching 72 in Elasmosaurus platyurus); (2) an elongated vertebral centra; (3) vertebral centra with lateral ridges; and (4) dumbbell-shaped articular faces in Late Cretaceous genera, for example, Hydrotherosaurus alexandrae, Morenosaurus stocky and Terminonatator ponteixensis (Welles 1943, 1962; Brown 1981, 1993; Bardet et al. 1999; Carpenter 1999; Gasparini & Salgado 2000; O'Keefe 2001, 2004; Sato 2003). The combination of these characters allows the identification at family level, even when the material consists only of cervical vertebrae. Note that only (3) is considered a sinapomorphy of Elasmosauridae sensu Ketchum & Benson (2010; see Wiffen & Moisley 1986; Werner & Bardet 1996; Gasparini & Salgado 2000; O'Gorman et al. 2011).

Antarctic plesiosaurs were recorded for the first time in the 1970s (del Valle et al. 1977). Mostly elasmosaurids, they were discovered in James Ross Basin. However, elasmosaurs have never been recorded in Campanian levels in Antarctica (Table 1). During fieldwork organized by the Instituto Antártico Argentino and undertaken in the summer of 1986, Dr. E. Olivero collected two juvenile plesiosaurs referable to Elasmosauridae in the Herbert Sound Member of the Snow Hill Island Formation of James Ross Island (Figs. 1, 2). Currently housed at the Museo de La Plata (with identification numbers preceded by “MLP”), these specimens are important because they are the first records of plesiosaurs in the Herbert Sound Member. More recently, during fieldwork in 2011, organized by the Instituto Antártico Argentino and with the participation of scientists from the MLP, the Universidad Nacional del Comahue and the Museo Municipal Carmen Funes in Plaza Huincul, Elasmosauridae remains were collected from the Lachman Crags Member of the Santa Marta Formation. The aim of this article is to describe the material collected in 1986 and in 2011, discuss their elasmosaurid affinity and highlight the implications of these records for our knowledge of Antarctic plesiosaurs.

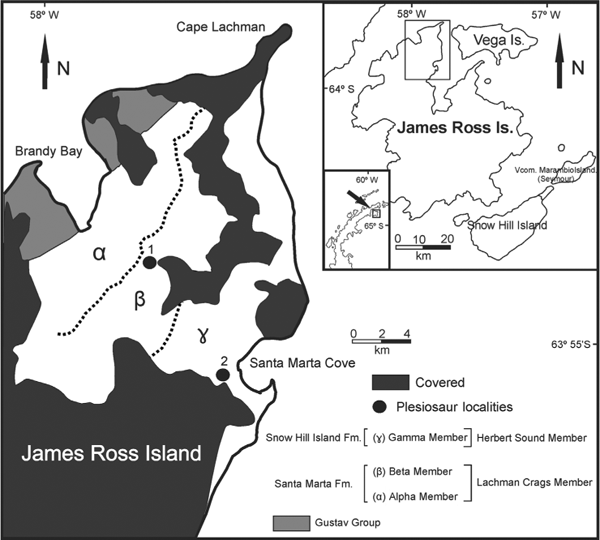

Fig. 1  Map of north-west James Ross Island, where the Snow Hill Island and Santa Marta formations crops out. The black dot numbered 1 is the location where the plesiosaur specimen MLP 11-II-20-4 was discovered; 2 is where specimens MLP 86-X-28-3 and MLP 86-X-28-(2-6) were found. (Illustration modified from Olivero 1992; McArtur et al. 2000; Olivero et al. 2008.)

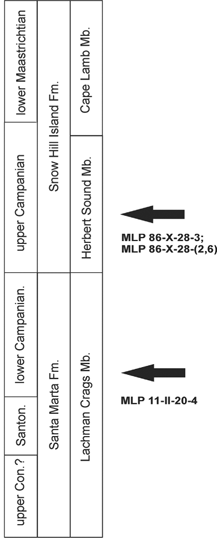

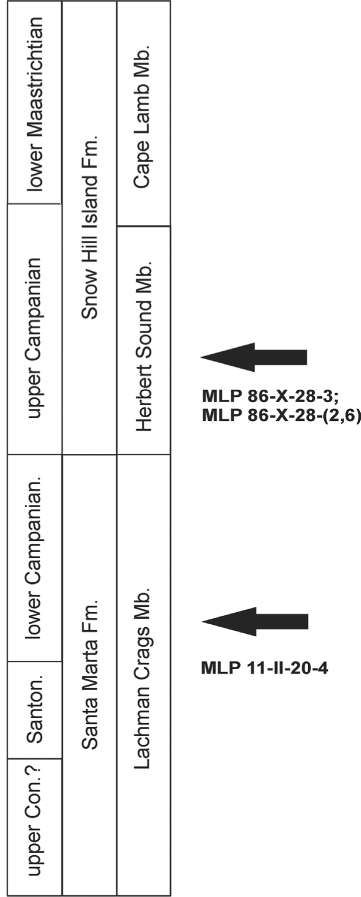

Fig. 2  Schematic stratigraphic column showing the levels where the elasmosaur materials were collected (modified from McArtur et al. 2000; Olivero et al. 2008).

Geological setting

The Marambio Group, which crops out mostly in the James Ross Archipelago, was deposited during the upper Coniacian–Danian interval (Macellari 1988; Ineson 1989; McArthur et al. 2000; Crame et al. 2004) or Santonian–Danian (Olivero & Medina 2000). This article follows the stratigraphy proposed by Olivero et al. (2008) in which the Marambio Group is divided into the Santa Marta, Snow Hill Island, Haslum Crag and López de Bertodano formations, and the Herbert Sound Member is considered to be the lower part of the Snow Hill Island Formation. The Santa Marta Formation, which roughly corresponds to the Lachman Crags Member proposed by Crame et al. (1991) (Figs. 1, 2), is divided into the Alpha and Beta members (Olivero et al. 1986; Olivero et al. 2008). The Alpha member is characterized by the abundance of tuffaceous sandstones and mudstones, whereas the Beta member includes interbedded conglomerates and carbonatic bioclastic layers (Olivero 1992). The Herbert Sound Member, now included in the Snow Hill Island Formation (Olivero et al. 2008), is composed of quartz sandstone and mudstone and a mudstone-dominated upper section (Olivero 1992).

The Santa Marta Formation (Alpha and Beta members) was deposited in a mid-to-outer shelf environment and the Herbert Sound Member of the Snow Hill Island Formation was deposited in a shallow marine environment (Crame et al. 1991; Olivero et al. 2008). The Santa Marta Formation represents (Alpha and Beta members) the late Coniacian–early Campanian interval (McArthur et al. 2000). Olivero & Medina (2000) interpreted that the Santonian–Campanian boundary is located in the lower to middle levels of the Alpha Member and the lower Campanian–upper Campanian boundary in the upper levels of the Beta Member (Olivero 1992; Olivero et al. 2008) and, therefore, the Herbert Sound Member is late Campanian in age (Olivero & Medina 2000).

Bivalves, ammonites (Olivero & Medina 2000), chondrichthyes, teleosts (Kriwet et al. 2006), turtles (de La Fuente et al. 2010) and plesiosaurs (D'Angelo et al. 2008; Kellner et al. 2011) have been recorded in the Santa Marta Formation. In the Herbert Sound Member of the Snow Hill Island Formation, bivalves, ammonites (Olivero & Medina 2000), chondrichthyes and teleosts (Kriwet et al. 2006) have also been recorded, as well as mosasaurs (Novas et al. 2002; Martin & Fernandez 2007; Fernandez & Gasparini 2012) and dinosaurs (Gasparini et al. 1987; Gasparini et al. 1996; Salgado & Gasparini 2006).

Material and methods

Fossils were prepared using Micro Jack and ME 9100 model jackhammers (Paleotool; Brigham City, UT, USA). The linear measurements were taken using an electronic caliper accurate to 0.01 mm. The vertebral indices used are those proposed by Welles (1952), which take into account the centrum length (L), the ratio between height (H) and length of the centrum (100*H/L), and the ratio between breadth (B) and length of the centrum (100*B/L). In addition, the ratio between the breadth and height (100*B/H) was considered. In this work, both breadth and height were measured on the posterior articular face of the centrum. The vertebral length index (VLI = L/[0.5*(H + B)]) (Brown 1981) was also used. Furthermore, the categories of ontogenetic development proposed by Brown (1981), based on the fusion of the neural arch to the vertebral centrum (neural closure), were employed to distinguish between “adult” and “juvenile” conditions.

Systematic paleontology

1. Sauropterygia Owen 1860
2. Plesiosauria de Blainville 1835
3. Plesiosauroidea Welles 1943
4. Elasmosauridae Cope 1869
5. Gen. and spp. indet.

Materials

MLP 11-II-20-4, one cervical vertebra preserving a partial rib; MLP 86-X-28-3, two cervical vertebrae; MLP 86-X-28-(2-6), 10 posterior cervical vertebrae articulated with three pectoral vertebrae, part of two dorsal vertebrae, ribs and indeterminate fragments.

Locality and horizon

MLP 11-II-20-4, Monolithic Lake (S 63° 52′ 38.4′′, W 57° 54′ 36′′), James Ross Island, James Ross Archipelago, Antarctica. Santa Marta Formation, lower part of Beta Member (middle levels of Lachman Crags Member), lower Campanian (McArthur et al. 2000; Olivero & Medina 2000) (Figs. 1, 2).

MLP 86-X-28-3 and MLP 86-X-28-(2-6), Santa Marta Cove, locality of QF stratigraphic section of Olivero (1992) (S 63° 55′ 36.4′′, W 57° 51′ 0.8′′), James Ross Island, James Ross Archipelago, Snow Hill Island Formation, Herbert Sound Member, upper Campanian (McArthur et al. 2000; Olivero & Medina 2000) (Figs. 1, 2).

Description

MLP 11-II-20-4

The vertebral centrum is longer than it is high and broader than it is long (Table 2). The articular faces are slightly concave, but their exact shape cannot be determined because they are damaged (Fig. 3b). The lateral surface has a conspicuous lateral ridge (Fig. 3a). There are two slightly anteroposteriorly elongated foramina in the ventral surface of the vertebral centrum and, in all likelihood, there was at least another one, but this cannot be determined because the ventral surface is not completely preserved and at least half of the ventral surface is lost. The left cervical rib is dorsoventrally compressed and it occupies a large part of the ventrolateral margin of the vertebral body. The suture of the rib with the vertebral centrum is closed (Fig. 3a). Because of the complete closure of the neurocentral suture, the individual is considered an adult.

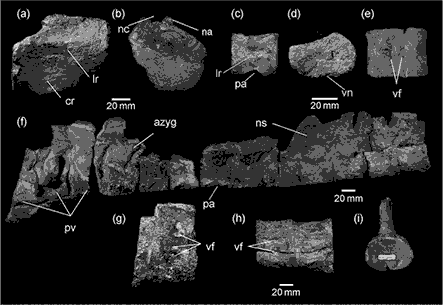

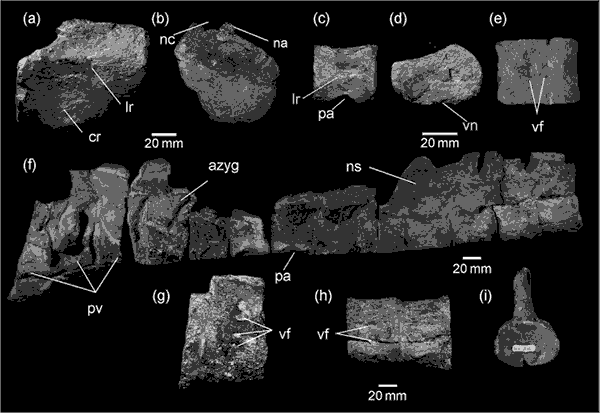

Fig. 3  Elasmosauridae indet. Material from Santa Marta Formation (Beta Member) and Snow Hill Island Formation (Herbert Sound Member). (a–b) MLP 11-II-20-4 cervical vertebra in (a) left lateral and (b) anterior views. (c–d) MLP 86-X-28-3 cervical vertebra in (c) left lateral and (d) anterior views. (e–h) MLP 86-X-28-(2-6) cervical–pectoral series in (e) right view; (f), first pre-pectoral in ventral view; (g), 10th and 9th pre-pectoral vertebrae in ventral view and (h) 9th pre-pectoral vertebra in anterior view. All scale bars are 20 mm. Anatomical features are abbreviated as follows: anterior zygapophyses—azyg; cervical rib—cr; lateral ridge—lr; neural arch—na; neural channel—nc; neural spine—ns; parapophyses—pa; pectoral vertebrae—pv; ventral foramina—vf; ventral notch—vn.

MLP 86-X-28-3

The vertebral centra are slightly longer than high and broader than long (Table 2). The articular faces are slightly dumbbell-shaped (Fig. 3d). One vertebral centrum has lateral ridges (Fig. 3c). The parapophyses are formed by a ventrolateral depression (Fig. 3c). On the ventral surface, there are two elongated ventral foramina separated by a blunt keel (Fig. 3e). The neurocentral suture of this specimen is open, so it is a juvenile sensu Brown (1981).

MLP 86-X-28-(2-6)

This specimen includes 10 cervical and 3 pectoral vertebrae, which were originally articulated (Fig. 3e). In addition, there are two dorsal vertebrae not articulated with the sequence. However, since all the material was collected together, they probably belong to the same individual. All of the vertebral centra are as long as high and both measurements are exceeded by breadth (Table 2). The VLI of the cervical vertebrae decreases cranio-caudally in the vertebral sequence (Table 2; Fig. 4). The articular faces are flat and suboval (Fig. 3i). The lateral surfaces of the centra are anteroposteriorly slightly concave. The parapophyses are suboval and cranio-caudally elongated in the most anterior cervical vertebrae. From the sixth pre-pectoral vertebra, the parapophyses drift dorsally towards the lateral surface and are more dorsoventrally elongated (Fig. 3f). Ventrally, there are two foramina separated by a blunt keel in the most anterior vertebrae (Fig. 3h), but in the first and third pre-pectoral vertebrae (the ventral surface of the second pre-pectoral vertebra is damaged) there are one or two extra smaller foramina in addition to the two main ones (Fig. 3g). The neural spines in the most anterior cervical vertebrae are anteroposteriorly expanded and posteriorly displaced with respect to the centrum. The pectoral region consists of three vertebrae in which the passage of the rib facet from the vertebral centrum to the neural arch can be observed (Fig. 3f). The dorsal region is represented only by two fragments of vertebral centra. This specimen is considered a juvenile because the neurocentral suture is open in all vertebrae.

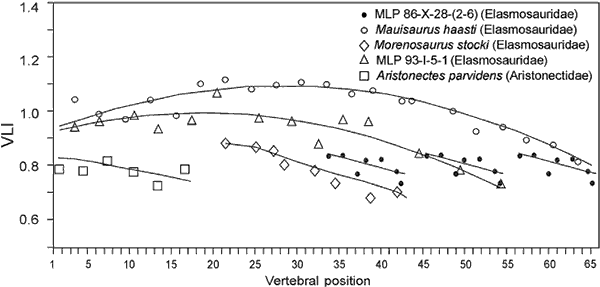

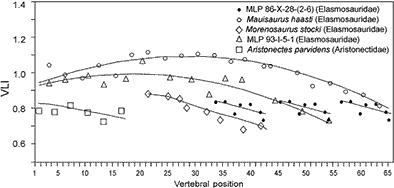

Fig. 4  Plot of vertebral length indices (VLI) of cervical vertebrae of three generalized elasmosaurids and Aristonectes parvidens compared with MLP 86-X-28-(2-6), an Elasmosauridae indet. specimen at the Museo de La Plata in La Plata, Argentina. The Mauisaurus haasti specimen is CM Zfr 115, at the Canterbury Museum, Christchurch, New Zealand. The Morenosaurus stocki is CIT 2802, at the California Institute of Technology, CA, USA. The second Elasmosauridae indet. specimen, MLP 93-I-5-1, is also at the Museo de La Plata, as is the A. parvidens specimen (MLP 40-XI-14-6). The data are drawn from Welles (1943) and O'Keefe & Hiller (2006) as well as the author's own data.

Discussion

In the MLP 11-II-20-4 vertebra, the neurocentral suture is closed and not visible (Fig. 3a, b), so it is considered to be an adult individual. Because MLP 86-X-28-3 and MLP 86-X-28-(2-6) show open neurocentral sutures, they are considered juveniles. Therefore, among the described specimens, there are individuals of different ontogenetic stages.

The specimen MLP 11-II-20-4 possesses a vertebral centrum longer than it is high and lateral ridges and is therefore referred to Elasmosauridae. Because the articular surfaces are badly damaged, it cannot be determined whether the articular faces were originally dumbbell-shaped. However, the elongation of the vertebral centrum and the lateral ridge is a combination of characters that has not been reported in any other families of Upper Cretaceous plesiosaurs and is exclusive to Elasmosauridae (Werner & Bardet 1996; Gasparini & Salgado 2000).

The MLP 86-X-28-3 vertebrae have slightly elongated centra, dumbbell-shaped articular faces and lateral ridges. This exclusive combination of characters allows us to refer MLP 86-X-28-3 to Elasmosauridae also.

The vertebral centra of MLP 86-X-28-(2-6) are as long as high and do not have dumbbell-shaped articular faces or lateral ridges. The absence of elongation of the vertebral centra, lateral ridge and dumbbell-shaped articular faces in MLP 86-X-28-(2-6) may be due to the ontogenetic stage and their position in the cervical region. This interpretation receives support from the posterior part of the cervical series of some elasmosaurids, which lacks certain characteristics, such as the centrum elongation, the lateral ridge and the dumbbell-shaped articular faces, although these characteristics are present in the anterior and middle cervical vertebrae (for example, in Mauisaurus haasti, Morenosaurus stocki; Welles 1943, 1952, 1962; Hiller et al. 2005). Therefore, the absence of typical characters of the Elasmosauridae in MLP 86-X-28-(2-6) does not necessarily exclude this specimen from this group because the sequence of MLP 86-X-28-(2-6) corresponds to the 10 first pre-pectoral vertebrae (the last 10 cervical vertebrae). Moreover, the limited elongation of MLP 86-X-28-(2-6) may be due to its juvenile condition (Welles 1952, 1962; O'Keefe & Hiller 2006). Another element to take into account is that the genus Aristonectes has been recorded in the James Ross Basin, López de Bertodano Formation, upper Maastrichtian (Chatterjee & Small 1989; Gasparini et al. 2003; O'Gorman et al. 2010). The phylogenetic relationships of Aristonectes parvidens have been debated recently and it has been located within the Elasmosauridae (Ketchum & Benson 2010) or Aristonectidae (O'Keefe & Street 2009). Although the revision of the phylogenetic relationships of Aristonectes is not the aim of this article, it is still necessary to determine whether the material described here could be referred to A. parvidens. The anterior cervical vertebrae of A. parvidens (Cabrera 1941) are dumbbell-shaped (middle and posterior cervical vertebrae are not known) and their centra are only moderately elongated with ventral foramina separated by a ventral keel (Gasparini et al. 2003). Figure 4 shows a plot of the VLI of the cervical vertebrae of four Upper Cretaceous plesiosauroid adults, including the holotype of Aristonectes parvidens (Cabrera 1941), and three elasmosaur species: M. haasti (Hector 1874); Campanian–Maastrichtian of New Zealand and Chile (Hiller et al. 2005; Otero et al. 2010); M. stocki (Welles 1943); Maastrichtian of California (Welles 1962); and MLP 93-I-5-1, an Elasmosauridae represented by a complete postcranial skeleton currently under study by the author from the Cape Lamb Member of the Snow Hill Island Formation (lower Maastrichtian levels). Figure 4 shows that in M. haasti, M. stocki and MLP 93-I-5-1 the last 10 cervical vertebrae have VLI values similar to those of the cervical vertebrae of MLP 86-X-28-(2-6). This similarity is not surprising since ontological changes in the VLI are less marked in the posterior cervical vertebrae than in the anterior vertebrae (O'Keefe & Hiller 2006). In contrast, in A. parvidens the VLI decreases in the first 19 anterior cervical vertebrae (Fig. 4). Assuming that the cervical region of A. parvidens has a structure similar to that observed in other plesiosauroids (maximum VLI in the middle and anterior cervical vertebrae, and a marked decrease at the posterior cervical region; Brown 1981; O'Keefe & Hiller 2006), the VLI of the posterior cervical vertebrae of A. parvidens would be substantially less than 0.8 and therefore it would be considerably less elongated than MLP 86-X-28-(2-6). Furthermore, MLP 86-X-28-(2-6) is a juvenile and its vertebral centra may have not yet reached their maximum elongation and, therefore, maximum VLI values at the time of death. Consequently, the vertebrae of MLP 86-X-28-(2-6) cannot be referred to as A. parvidens.

The morphology of MLP 86-X-28-(2-6) does not corresponds to the morphology observed in Polycotylidae, in which the vertebral centra are not elongated and the articular surfaces are subcircular and strongly depressed (Williston 1908; Storrs 1999; Sato & Storrs 2000; Salgado et al. 2007). Therefore, the specimen MLP 86-X-28-(2-6) can be reasonable assigned to Elasmosauridae.

On the basis of our present knowledge, the morphology of isolated cervical vertebrae cannot be used for taxonomic assignment below the family level in Elasmosauridae (O'Keefe & Hiller 2006). Hence, a generic determination of the described material is currently impossible.

Previous records of plesiosaurs in the Santa Marta Formation come from the Alpha Member (lower levels of the Lachman Crags Member) and include materials referred to Polycotylidae (MACN 19.781, Museo Nacional de Ciencias Naturales “Bernardino Rivadavia”, Buenos Aires; D'Angelo et al. 2008) and Plesiosauria indet (MN 7163-V at The Museu Nacional de la Universidade Federal de Río de Janeiro; Kellner et al. 2011). The vertebrae reported by Kellner et al. (2011) differ from the specimen MLP 11-II-20-4 (described in this article) in that the vertebral centrum of specimen MLP 11-II-20-4 is subequal in length and height and its articular faces are flat and dumbbell-shaped or elliptical, whereas the vertebrae described by Kellner et al. (2011) (MN 7163-V) show the vertebral centrum to be higher than long (the length of the vertebral centrum is inferred because the vertebrae are poorly preserved, although each vertebra has preserved its anterior or posterior half), with strongly concave circular articular faces. The presence of short cervical vertebrae together with strongly concave articular faces that are subcircular in shape is a combination characteristic of Polycotylidae (Williston 1908; Storrs 1999; Sato & Storrs 2000; Salgado et al. 2007). Therefore, specimen MN 7163-V may be referred to as Polycotylidae in accordance with the possibility stated by Kellner et al. (2011), making this specimen the second record of Polycotylidae in the Santa Marta Formation (D'Angelo et al. 2008).

These new records of Elasmosauridae increase our knowledge of the Plesiosauria diversity in the Santa Marta Formation. The Elasmosauridae are now recorded in three of the four formations of the Marambio Group: Santa Marta (upper Coniacian? Santonian–lower Campanian), Snow Hill Island (upper Campanian–lower Maastrichtian) and López de Bertodano (upper Maastrichtian). In contrast, the Polycotylidae are only recorded in the Santa Marta Formation (D'Angelo et al. 2008) (Table 1). Extending the record of Elasmosauridae from Antarctica to the lower Campanian, the new material described in this article constitutes the oldest record of this group in Antarctica.

Acknowledgements

This research was supported by funding to projects PICT 2008-0261, PICT 0365/2007, PIP 0426 and UNLP N607. The author thanks Z. Gasparini and L. Salgado for reading an earlier version of the manuscript, and E. Olivero, M. Reguero, N. Cerda, A Paulina-Carabajal and J. Moly for making the Antarctic fieldwork possible and for their comments that improved this manuscript, L. Acosta Burllaile for the preparation of some specimens, Bruno Pianzola for taking the photographs, and C. Deschamps and P. Arregui for improving the English. This contribution would not have been possible without the logistic support from the Instituto Antártico Argentino, as well as from the Argentine Air Force. The author also thanks the MLP, the Museo Nacional de Ciencias Naturales “Bernardino Rivadavia”, Museo Nacional de Historia Natural de Chile, Museo Paleontológico Egidio Feruglio, the Museo Municipal de Lamarque, the Museo de Cinco Saltos and the Museo de la Universidad del Comahue for permission to review their plesiosaur materials. Finally, the author thanks reviewers Tamaki Sato and Peggy Vincent and anonymous reviewers for comments that improved this manuscript.

References

Bardet N., Godefroit P. & Sciau J. 1999. A new elasmosaurid plesiosaur from the Lower Jurasic of southern France. Palaeontology 42, 927–952. [Crossref]

Brown D.S. 1981. The English Upper Jurassic Plesiosauroidea (Reptilia) and a review of the phylogeny and classification of the Plesiosauroidea. Bulletin of British Museum of Natural History, Geology Series 35, 253–347.

Brown D.S. 1993. A taxonomic reappraisal of the families Elasmosauridae and Cryptoclididae (Reptilia: Plesiosauroidea). Revue de Paléobiologie Volume Spécial 7, 9–16.

Cabrera A. 1941. Un plesiosaurio nuevo del Cretáceo del Chubut. (A new plesiosaur from the Cretaceous of Chubut.) Revista del Museo de La Plata 2, 113–130.

Carpenter K. 1996. A review of short-necked plesiosaurs from the Cretaceous of the Western Interior, North America. Neues Jahrbuch für Geologie und Palaontologie 201, 259–287.

Carpenter K. 1999. Revision of North American elasmosaurs from the Cretaceous of the Western Interior. Paludicola 2, 148–173.

Chatterjee S. & Small B.J. 1989. New plesiosaur from the Upper Cretaceous of Antarctica. Special Publications of the Geological Society 47, 197–215. [Crossref]

Cope E.D. 1869. Synopsis of the extinct Batrachia and Reptilia of North America. Part I. Transactions of the American Philosophical Society 14. Philadelphia: American Philosophical Society.

Crame J.A., Francis J.E., Cantrill D.J. & Pirrie D. 2004. Maastrichtian stratigraphy of Antarctica. Cretaceous Research 25, 411–423. [Crossref]

Crame J.A., Pirrie D., Riding J.B. & Thomson M.R.A. 1991. Campanian–Maastrichtian (Cretaceous) stratigraphy of the James Ross Island area, Antarctica. Journal of the Geological Society of London 148, 1125–1140. [Crossref]

D'Angelo J.S., Novas F.E., Lirio J.M. & Isasi M.P. 2008. Primer registro de Polycotylidae (Sauropterygia, Plesiosauria) del Cretácico Superior de Antártida. (First record of Polycotylidae [Sauropterygia, Plesiosauria] from the Upper Cretaceous of Antarctica.) In: Resúmenes del Tercer Congreso Latinoamericano de Paleontología de Vertebrados. (Abstracts of the Third Latin-American Congress of Vertebrate Palaeontology.) P. 72. Neuquén, Argentina: Committee of the Third Latin-American Congress of Vertebrate Palaeontology.

de Blainville H.D. 1835. Description de quelques espèces de reptiles de la Californie, précédée de l'analyse d'un système general d'Erpetologie et d'Amphibiologie. (Description of some species of reptiles of California, preceded by the analysis of a general system of herpetology and amphibiology.) Nouvelles Annales du Muséum (National) d'History Naturaelle, Paris 4, 233–296.

de La Fuente M., Novas F.E., Isasi M.P., Lirio J.M. & Nuñez H.J. 2010. First Cretaceous turtle from Antarctica. Journal of Vertebrate Paleontology 30, 1275–1278. [Crossref]

del Valle R.A., Medina F. & Gasparini Z. 1977. Nota preliminar sobre el hallazgo de reptiles fósiles marinos del suborden Plesiosauria en las islas James Ross y Vega, Antártida. (Preliminary note on the discovery of fossil marine reptiles from the suborder Plesiosauria from James Ross and Vega islands, Antarctica.) Contribuición del Instituto Antártico Argentino 212, 1–13.

Fernandez M. & Gasparini Z. 2012. Campanian and Maastrichtian mosasaurs from Antarctic Peninsula and Patagonia, Argentina. Bulletin de la Société Géologique de France 183, 93–102. [Crossref]

Fostowicz-Frelik L. & Gazdziki A. 2001. Anatomy and histology of plesiosaur bones from the Late Cretaceous of Seymour Island, Antarctic Peninsula. Palaeontologia Polonica 60, 7–32.

Gasparini Z., Bardet N., Martin J.E. & Fernández M. 2003. The elasmosaurid plesiosaur Aristonectes parvidens Cabrera from the latest Cretaceous of South America and Antarctica. Journal of Vertebrate Paleontology 23, 104–115.

Gasparini Z., del Valle R. & Goñi R. 1984. Un elasmosaurido (Reptilia, Plesiosauria) del Cretácico Superior de la Antártida. (An elasmoasurid [Reptilia, Plesiosauria] from the Upper Cretaceous of Antarctica.) Contribuciones del Instituto Antártico Argentino 305, 1–24.

Gasparini Z., Olivero E., Scasso R. & Rinaldi C. 1987. Un ankilosaurio (Reptilia, Ornithischia) Campaniano en el continente antártico. (A Campanian ankilosaur [Reptilia, Ornitischia] from Antarctica.) In: Anais do X Congresso Brasileiro de Paleontologia, Río de Janeiro. (Proceedings of the Tenth Brazilian Palaeontological Congress.) Pp. 131–141. Rio de Janeiro: Committee of the Tenth Brazilian Palaeontological Congress.

Gasparini Z., Pereda-Suberbiola X. & Molnar R.E. 1996. New data on the ankylosaurian dinosaur from the Late Cretaceous of the Antarctica Peninsula. Memoirs of the Queensland Museum 39, 583–594.

Gasparini Z. & Salgado L. 2000. Elasmosáuridos (Plesiosauria) del Cretácico Tardío del norte de Patagonia. (Elasmosaurids [Plesiosauria] from the Upper Cretaceous of northern Patagonia.) Revista Española de Paleontología 15, 13–21.

Hector J. 1874. On the fossil reptiles of New Zealand. Transactions of the New Zealand Institute 6, 333–358.

Hiller N., Mannering A.A., Jones C.M. & Cruickshank A.R. 2005. The nature of Mauisaurus haasti Hector 1874 (Reptilia: Plesiosauria). Journal of Vertebrate Paleontology 25, 588–601.

Ineson J.R. 1989. Coarse-grained submarine fan and slope apron deposits in a Cretaceous back-arc basin, Antarctica. Sedimentology 36, 793–819. [Crossref]

Kear B.P. 2003. Cretaceous marine reptiles of Australia: a review of taxonomy and distribution. Cretaceous Research 24, 277–303. [Crossref]

Kellner A.W.A., Rodrigues Simões T., Riff D., Grillo O., Romano P., de Paula H., Ramos R., Carvalho M., Sayão J., Oliveira G. & Rodrigues T. 2011. The oldest plesiosaur (Reptilia, Sauropterygia) from Antarctica. Polar Research 30, article no. 7265, doi: 10.3402/polar.v30i0.7265. [Crossref]

Ketchum H.F. & Benson R.J.B. 2010. Global interrelationships of Plesiosauria (Reptilia, Sauropterygia) and the pivotal role of taxon sampling in determining the outcome of phylogenetic analyses. Biological Reviews 85, 361–392. [Crossref]

Kriwet K., Lirio J.M., Nuñez H.J., Puceat E. & Lécuyer C. 2006. Late Cretaceous Antarctic fish diversity. In J.E. Francis et al. (eds.): Cretaceous–Tertiary high-latitude palaeonvironments: James Ross Basin, Antarctica. Pp. 83–100. London: Geological Society of London.

Macellari C.E. 1988. Stratigraphy, sedimentology, and paleoecology of Upper Cretaceous Paleocene shelf-deltaic sediments of Seymour Island (Antarctic Peninsula). In R.M. Feldmann & M.O Woodburne (eds.): Geology and paleontology of Seymour Island, Antarctic Peninsula. Pp. 25–53. Boulder, CO: Geological Society of America.

Martin J.E. & Crame J.A. 2006. Palaeobiological significance of high-latitude Late Cretaceous vertebrate fossils from the James Ross Basin, Antarctica. In J.E. Francis et al. (eds.): Cretaceous–Tertiary high-latitude palaeonvironments: James Ross Basin, Antarctica. Pp. 109–124. London: Geological Society of London.

Martin J.E. & Fernández M. 2007. The synonymy of the Late Cretaceous mosasaur (Squamata) genus Lakumasaurus from Antarctica with Taniwhasaurus from New Zealand and its bearing upon faunal similarity within the Weddellian Province. Geological Journal 42, 203–211. [Crossref]

Martin J.E., Sawyer J.F., Reguero M. & Case J.A. 2007. Occurence of a young elasmosaurid plesiosaur skeleton from the Late Cretaceous (Maastrichtian) of Antartica. USGS OF-2007-1047, Short Research Paper 066, doi: 10.3133/of2007-1047.srp066. [Crossref]

McArthur J.M., Crame J.A. & Thirlwall J.E. 2000. Definition of Late Cretaceous stage boundaries in Antarctica using strontium isotope stratigraphy. Journal of Geology 108, 623–640. [Crossref]

Novas F.E., Fernández M., Gasparini Z.B., Lirio J.M., Nunez H.J. & Puerta P. 2002. Lakumasaurus antarcticus, n. gen. et sp., a new mosasaur (Reptilia, Squamata) from the Upper Cretaceous of Antarctica. Ameghiniana 39, 245–249.

O'Gorman J.P., Concheyro A., Olivero E., Reguero M., Moly J.J., Marenssi S. & Gasparini Z. 2008. An elasmosaurid (Plesiosaur, Plesiosauroidea) from the Upper Cretaceous, Vega Island. Antarctica. In: Resúmenes del Tercer Congreso Latinoamericano de Paleontología de Vertebrados. (Abstracts of the Third Latin-American Congress of Vertebrate Palaeontology.) P. 181. Neuquén, Argentina: Committee of the Third Latin-American Congress of Vertebrate Palaeontology.

O'Gorman J.P., Gasparini Z. & Reguero M. 2010. Aristonectes parvidens Cabrera (Sauropterygia, Plesiosauria) from Cape Lamb, Vega Island (Upper Cretaceous), Antarctica. Paper presented at the Fourth Scientific Committee on Antarctic Research Open Science Conference. 3–6 August, Buenos Aires, Argentina.

O'Gorman J.P., Gasparini Z. & Salgado L. 2012. Postcranial morphology of Aristonectes (Plesiosauria, Elasmosauridae) from the Upper Cretaceous of Patagonia and Antarctica. Antarctic Science, doi: 10.1017/S0954102012000673 [Crossref]

O'Gorman J.P., Olivero E.B. & Cabrera D.A. 2012. Gastroliths associated with a juvenile elasmosaur (Plesiosauria, Elasmosauridae) from the Snow Hill Island Formation (upper Campanian–lower Maastrichtian), Vega Island, Antarctica. Alcheringa, doi: 10.1080/03115518.2012.688673. [Crossref]

O'Gorman J.P., Salgado L. & Gasparini Z. 2011. Plesiosaurios de la Formación Allen (Campaniano-Maastrichtiano) en el área del Salitral de Santa Rosa. Provincia de Río Negro, Argentina. (Plesiosaurs from the Allen Formation in the Salitral de Santa Rosa zone, Río Negro Province, Argentina.) Ameghiniana 48, 129–135. [Crossref]

O'Keefe F.R. 2001. A cladistic analysis and taxonomic revision of the Plesiosauria (Reptilia: Sauropterygia). Acta Zoologica Fennica 213, 1–63.

O'Keefe F.R. 2004. Preliminary description and phylogenetic position of a new genus and species of plesiosaur (Reptilia: Sauropterygia) from the Toarcian of Holzmaden, Germany. Journal of Paleontology 78, 973–988.

O'Keefe F.R. & Hiller N. 2006. Morphologic and ontogenetic patterns in elasmosaur neck length, with comments on the taxonomic utility of neck length variables. Paludicola 5, 206–229.

O'Keefe F.R. & Street H.P. 2009. Osteology of the cryptocleidoid plesiosaur Tatenectes laramiensis, with comments on the taxonomical status of the Cimoliasauridae. Journal of Vertebrate Paleontology 29, 48–57. [Crossref]

Olivero E. 1992. Asociaciones de amonites de la Formación Santa Marta (Cretácico Tardío), Isla James Ross. (Ammonite asociations in the Santa Marta Formation [Late Cretaceous].) In C. Rinaldi (ed.): Geología de la Isla James Ross. Pp. 47–76. Buenos Aires: Argentine Antarctic Institute.

Olivero E.B. & Medina F.A. 2000. Patterns of Late Cretaceous ammonite biogeography in southern high latitudes: the family Kossmaticeratidae in Antarctica. Cretaceous Research 21, 269–279. [Crossref]

Olivero E.B., Ponce J.J. & Martinioni D.R. 2008. Sedimentology and architecture of sharp-based tidal sandstones in the upper Marambio Group, Maastrichtian of Antarctica. Sedimentary Geology 210, 11–26. [Crossref]

Olivero E.B., Scasso R.A. & Rinaldi C.A. 1986. Revision of the Marambio Group, James Ross Island, Antarctica. Contribuciones del Instituto Antartico Argentino 331, 1–28.

Otero R.A., Soto–Acuña S. & Rubilar–Rogers D. 2010. Presence of the elasmosaurid plesiosaur Mauisaurus in the Maastrichtian (Late Cretaceous) of central Chile. Acta Palaeontologica Polonica 55, 361–364. [Crossref]

Owen R. 1860. On the orders of fossil and recent Reptilia, and their distribution in time. Reports of the British Association for the Advancement of Science 29, 153–166.

Persson P.O. 1963. A revision of the classification of the Plesiosauria with a synopsis of the stratigraphical and geographical distribution of the group. Lunds Univerisitets Arsskrift 59. Lund: Royal Physiographic Society in Lund.

Salgado L. & Gasparini Z. 2006. Reappraisal of an ankylosaurian dinosaur from the Upper Cretaceous of James Ross Island (Antarctica). Geodiversitas 28, 119–135.

Salgado L., Parras A. & Gasparini Z. 2007. Un plesiosaurio de cuello corto (Plesiosauroidea, Polycotylidae) del Cretácico superior del norte de Patagonia. (A short necked plesiosaur [Plesiosauroidea, Polycotylidae] from northern Patagonia.) Ameghiniana 44, 349–358.

Sato T. 2003. Terminonatator ponteixensis, a new elasmosaur (Reptilia: Sauropterygia) from the Upper Cretaceous of Saskatchewan. Journal of Vertebrate Paleontology 23, 89–103.

Sato T. & Storrs G.W. 2000. An early polycotylid plesiosaur (Reptilia: Sauropoterygia) from the Cretaceous of Hokkaido, Japan. Journal of Paleontology 74, 907–914.

Storrs G.W. 1999. An examination of Plesiosauria (Diapsida: Sauropterygia) from the Niobrara Chalk (Upper Cretaceous) of central North America. The University of Kansas Paleontological Contributions 11, 1–15.

Vincent P., Bardet N., Pereda Suberbiola X., Bouya B., Amaghzaz M. & Meslouh S. 2011. Zarafasaura oceanis, a new elasmosaurid (Reptilia: Sauropterygia) from the Maastrichtian Phosphates of Morocco and the palaeobiogeography of latest Cretaceous plesiosaurs. Gondwana Research 19, 1062–1073. [Crossref]

Welles S.P. 1943. Elasmosaurid plesiosaurs with description of new material from California and Colorado. Memoirs of the University of California 13, 125–254.

Welles S.P. 1952. A review of the North American Cretaceous elasmosaurs. University of California Publications in Geological Sciences 29, 47–144.

Welles S.P. 1962. A new species of elasmosaur from the Aptian of Colombia and a review of the Cretaceous plesiosaurs. Berkeley: University of California Press.

Werner C. & Bardet N. 1996. A record of elasmosaurs (Reptilia, Plesiosauria) in the Maastrichtian of the Western Desert of Egypt. Berliner geowissenschaftliche Abhandlungen 18, 335–341.

Wiffen J. & Moisley W.L. 1986. Late Cretaceous reptiles (Families Elasmosauridae and Pliosauridae) from the Mangahouanga Stream, North Island, New Zealand. New Zealand Journal of Geology and Geophysics 29, 205–252. [Crossref]

Williston S. 1908. North American plesiosaurs: Trinacromerum. Journal of Geology 16, 715–736. [Crossref]
