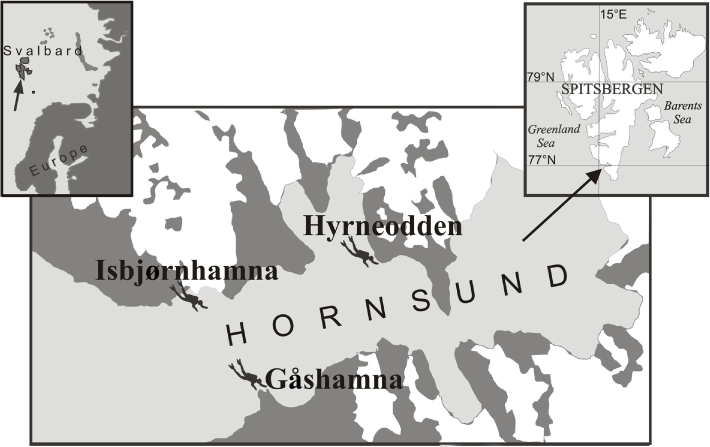

Fig. 1 Location of the sampling sites. Glaciers are indicated by the white areas.
RESEARCH/REVIEW ARTICLE
Marta Ronowicz,1 Joanna Legeżyńska,1 Piotr Kukliński1,2 & Maria Włodarska-Kowalczuk1
1 Institute of Oceanology, Polish Academy of Sciences, ul. Powstancow Warszawy 55, PL-81-712 Sopot, Poland
2 Natural History Museum, Cromwell Road, SW7 5BD London, UK
Abstract
Distribution and abundance of the amphipod Caprella septentrionalis in relation to environmental conditions and habitat preferences were investigated in a kelp forest in Hornsund, Spitsbergen. Three sampling sites differed in hydrodynamics, organic and inorganic suspension concentration, and sedimentation rates. None of these abiotic factors or species of a macroalgal host appeared to have a significant influence on C. septentrionalis abundance and size range. An apparent preference towards the blade parts of the algal thalli was observed. These results support the idea of C. septentrionalis as a generalist Arctic–boreal species that takes advantage of the protective nature of kelp forests.
Keywords
Caprellid amphipod; Arctic fjord; kelp forest; population structure; distribution; macroalgae.
Correspondence
Marta Ronowicz, Institute of Oceanology, Polish Academy of Sciences, ul. Powstancow Warszawy 55, PL-81-712 Sopot, Poland.
E-mail: martigor1@o2.pl
(Published: 20 November 2013)
Polar Research 2013. © 2013 M. Ronowicz et al. This is an Open Access article distributed under the terms of the Creative Commons Attribution-Noncommercial 3.0 Unported License (http://creativecommons.org/licenses/by-nc/3.0/), permitting all non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Citation: Polar Research 2013, 32, 21037, http://dx.doi.org/10.3402/polar.v32i0.21037
In the high-latitude glacial Arctic fjord, Hornsund, an extensive kelp forest develops on hard bottom, from about 5 to 25 m. The kelp community is dominated by three perennial species: Alaria esculenta, Laminaria digitata and Saccharina latissima (Tatarek et al. 2012). The overall biomass of these species may reach up to 3443 g wet weight m−2 (Tatarek et al. 2012). Apart from being important primary producers and habitat formers (Christie et al. 2009), kelps are also ecosystem engineers that change the environmental properties by altering water flow and sedimentation (Jones et al. 1994) and constitute hot spots of diversity in temperate and coldwater regions of the Northern Hemisphere (Graham et al. 2007). Diverse communities of sessile and mobile invertebrates find food, physical substratum and shelter from predators in the kelp forests of Spitsbergen fjords (Lippert et al. 2001; Ronowicz et al. 2008; Włodarska-Kowalczuk et al. 2009).
Caprella septentrionalis Kröyer, 1838 (Amphipoda, Caprellidae) is one of the most common species associated with macroalgae in Spitsbergen fjords (Węsławski 1990; Lippert et al. 2001; Włodarska-Kowalczuk et al. 2009). It is a taxon noted in boreal and Arctic regions of the North Atlantic—Greenland, the Barents Sea, the White Sea, Svalbard, Faroe Islands, north Scotland, Iceland, Baffin Bay and the Gulf of Maine (Vasilenko 1974; Guerra-García 2002). The species plays an important role in the food web of the White Sea, where its mass occurrence on macroalgal, poriferan and hydrozoan substrata attracts many fishes including the commercially exploited Gadus morhua (Geptner 1963; Marfenin & Belorusceva 2006). Limited information is available concerning its biology and ecology. The species occurs at temperatures between 0 and 7.9°C (Larsen 1998), typically in shallow waters (McCain 1968; Vasilenko 1974; Węsławski 1990), but it has also been recorded at 1026 m depth by Larsen (1998). According to Węsławski & Legeżyńska (2002), C. septentrionalis in Hornsund requires more than two years to complete its life cycle. Its typical upright posture and possession of densely setose second antennae used for filtering particles out of the water column and grooming behaviour indicate suspension feeding is its main feeding strategy (Guerra-García 2002; Legeżyńska et al. 2012).
The main goal of this study was to investigate the population structure (body size distribution, sex ratio) and patterns of distribution and abundance of C. septentrionalis in relation to hydrodynamics, glacier-induced environmental conditions (inorganic sedimentation rate, inorganic suspension concentration) and macroalgal host species.
The study was carried out in Hornsund (76°56′–77°03′N; 15°28′–16°45′E), in south-western Spitsbergen, in July 2003 (Fig. 1). Hornsund is a typical glacial fjord with 14 tidal glaciers discharging high loads of freshwater and inorganic suspensions to the system in summer. A detailed description of the Hornsund physical features can be found in Swerpel (1985), Węsławski et al. (1995) and Włodarska-Kowalczuk et al. (2009).
Fig. 1
Location of the sampling sites. Glaciers are indicated by the white areas.
The material was collected by SCUBA divers at three sites with different physical characteristics: Isbjørnhamna and Hyrneodden, situated close to glacier outflows, and Gåshamna, situated far from the glacier outflows (Fig. 1). The highest mineral and organic sedimentation rates, and mineral and organic suspended matter concentrations were observed in Isbjørnhamna, while the lowest values were noted in Gåshamna, which is less affected by glacier-induced disturbance (Ronowicz et al. 2008). Secchi disc transparency, which indicates water transparency, was much higher in Gåshamna (about 10 m) compared to the two other sites (1.6 m in Isbjørnhamna and 1.77 in Hyrneodden; Ronowicz et al. 2008). Isbjørnhamna and Hyrneodden are more exposed sites while Gåshamna is sheltered from wave action (Ronowicz et al. 2008).
At each site, the three most common kelp species—Laminaria digitata, Saccharina latissima and Alaria es culenta—and the understory macroalga Desmarestia aculeata together with associated fauna, were collected at two depths of 5 and 10 m. Each algal specimen was cut from the substratum with a knife and placed in a bag. A total of 372 algal samples were collected and fixed in buffered 4% formaldehyde. In the laboratory C. septentrionalis specimens were removed from the kelp, counted and measured from the tip of the head to the end of the telson to the nearest 0.1 mm. Caprellid abundance is given as the number of individuals per alga. The frequency of occurrence of Caprella was estimated as the percentage of algal samples in which the amphipod occurred in the total number of algae collected. Sex was determined using the presence of genital papillae for identifying males and the presence of oostegites for identifying females. If no sexual characteristics were observed, a specimen was considered juvenile. Sex ratio was calculated as the proportion of males to females. Environmental parameters such as current velocity, water transparency, sedimentation rate and suspension concentration are described by Ronowicz et al. (2008).
The differences between abundance and size of C. septentrionalis among different algal species and among sites were tested using the nonparametric Kruskal–Wallis test. All statistical analyses were conducted with Statsoft's Statistica software version 6.
The mean number of Caprella septentrionalis individuals varied from 2.0±2.9 (mean±SD) in Isbjørnhamna to 3.6±7.4 in Gåshamna (Table 1). The abundance did not differ significantly between the three sites (Kruskal–Wallis test: H=4.14, p=0.53). There was also no difference in the size range of amphipods between different sites (Kruskal–Wallis test: H=8.27, p=0.14).
C. septentrionalis was present in 15% of 372 collected algal samples. The abundance and body length did not differ significantly among different algal hosts (Kruskal–Wallis test for abundance: H=5.97, p=0.11; and body length: H=1.377, p=0.71). The highest number of individuals was recorded on A. esculenta (up to 32 per algal sample at Gåshamna, mean 5.5±7.1), while on other host species the number of caprellids did not exceed four specimens per algal sample. C. septentrionalis occurred more frequently on the alga D. aculeata (F=37%) than on kelp species A. esculenta, L. digitata and S. latissima (Table 1).
A total of 156 individuals were collected. Body length of the animals ranged from 2.9 to 25 mm with a mean value of 12.8 mm (± 5.7 SD). Juveniles comprised 23%, males 45% and females 32% of specimens. There was a male predominance (sex ratio = 1.3). Mean body length of juveniles was 4.8 mm (± 1.5 SD). Adult males were generally larger than females (Fig. 2). Body length of males ranged from 5.7 to 24.8 mm (mean 14.9±5.4 mm), while in females it varied from 6 to 20 mm (mean 13.8±2.6 mm). Three ovigerous females were found.

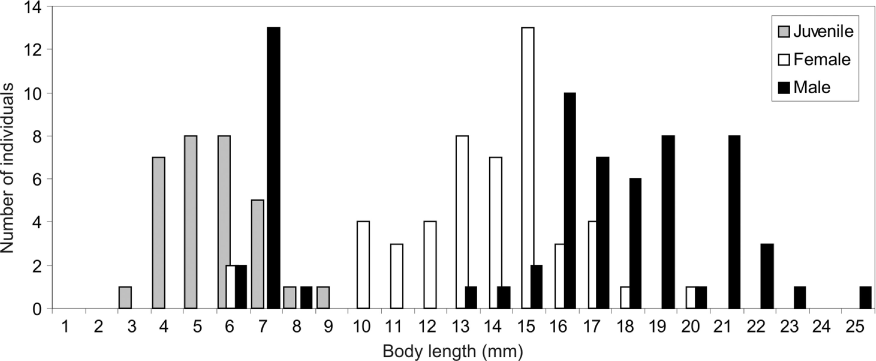

Fig. 2
The population structure of Caprella septentrionalis in July.
Caprella septentrionalis has been found to be the dominant mobile crustacean associated with kelp beds in Hornsund, making up to 43% of the total crustacean abundance (Włodarska-Kowalczuk et al. 2009). However, little is known about its population structure in the Arctic. The present study shows the predominance of males in July (sex ratio = 1.3). This result differs from what is reported in other studies. An earlier study from Hornsund showed predominance of females (sex ratio = 0.76; Węsławski & Legeżyńska 2002). However, that earlier material was collected in several seasons and was not limited to summer only, as in this study. Geptner (1963) reported that the sex ratio of the White Sea population of C. septentrionalis changed during the year. He observed that females dominated in June (sex ratio = 0.7). Later in the year, young individuals predominated due to adult mortality after breeding. Later, there was no clear pattern of dominance of any sex. This finding differs from our July material when juveniles, males and females were represented by comparably large numbers of individuals. There are probably two age cohorts of males: small males up to 8 mm of length that hatched in spring the same year and big males 13–25 mm long that are one or two years old. Our results do not suggest mortality of adults in July. It is possible that the life cycle in the colder waters of Svalbard is delayed compared to the White Sea, and adult mortality occurs in late summer. We found three ovigerous females in July. Węsławski & Legeżyńska (2002) showed that C. septentrionalis in Hornsund incubates eggs in winter, releases its offspring in May and females with empty marsupia are found in July. Since our material only comprised three ovigerous individuals, we cannot speculate about this difference.
This study indicates that C. septentrionalis should be considered a substratum generalist since its distribution was patchy and it occurred on different algal species with no statistically important preference. Studies from other regions showed the use of various substrata, such as brown, green and red algae, seagrass, sponges, hydrozoans, alcyonarians, bryozoans and tunicates (Geptner 1963; McCain 1968). In Kongsfjorden, located further north in Spitsbergen, the species occurred on soft and hard bottom, but dominated in a benthic community associated with kelp species (Kaczmarek et al. 2005). In the same fjord, Lippert et al. (2001) observed that C. septentrionalis preferred the alga D. aculeata which offered good structures for attachment and a high degree of camouflage. In our study, C. septentrionalis reached the highest frequency of occurrence on the highly branched D. aculeata but was less abundant on this alga than on the kelp A. esculenta. The lower abundance of caprellids on D. aculeata was probably due to the much smaller size of this alga compared to the large kelp species.
Underwater observations enabled us to detect a clear preference of Caprella towards the uppermost part of the host algal species. The amphipods were mainly observed clinging to algal fronds (Fig. 3), using them as a physical support that lifts them up into the water column where they can access sufficient water flow (Hirst 2007).
Fig. 3 Caprella septentrionalis Kröyer, 1838 on the frond of kelp showing its typical vertical position. Photo by P. Kukliński.
The results suggest that C. septentrionalis is not particularly vulnerable to high loads of mineral suspension concentration and high sedimentation rates in near-glacier areas. As this caprellid is assumed to be a suspension feeder (Guerra-García 2002; Legeżyńska et al. 2012), some effect of sediment disturbance on the caprellid distribution in localities adjacent to glacier fronts was expected. In areas exposed to high sediment stress, suspension-feeding organisms suffer damage resulting from burial or clogging of the filtering apparatus (Moore 1977; Ronowicz et al. 2011). However, recent studies of gut contents of C. septentrionalis (Legeżyńska et al. 2012) revealed the possibility of other means of feeding such as predation and scraping (Legeżyńska et al. 2012). Employment of different feeding strategies by C. septentrionalis may be the adaptation to survive in a sediment-impacted environment.
The abundance and size distribution of C. septentrionalis did not vary between the three sites with different hydrodynamics. Comparisons of fauna associated with macroalgae in the areas of high and low wave exposure showed that in sites affected by strong water dynamics abundance of the total fauna was much lower, while clinging animals, such as mobile amphipods predominated (Hagerman 1966; Fenwick 1976). The caprellid domination at exposed sites is explained by its ability to hold onto algae firmly with its strong grasping appendages (Hagerman 1966) to avoid dislodgment by wave action (Guerra-García & García-Gómez 2001). Therefore, water hydrodynamics is not a key factor determining their distribution.
Kelp forests provide favourable conditions for C. septentrionalis by shielding its populations from the direct impacts of sedimentation and wave action and offering a relatively stable substrate that allows for effective feeding. Warming of the Arctic, with global climate change (IPCC 2007), will likely have a positive impact on the kelp forests in Arctic coastal seas due to longer ice-free periods and decreasing ice cover extent (Krause-Jensen et al. 2012). We can expect that kelp-associated fauna with a wide temperature tolerance—including the species studied here—will not be threatened by climate change but will broaden its distribution in step with the expanded kelp forest distribution.
Caprella septentrionalis does not show any preference between kelp species hosts. The physical factors of sedimentary regime and wave action do not affect its distribution in a glacial Arctic kelp forest. Our results indicate that C. septentrionalis is an opportunistic species taking advantage of the protective attributes of its habitat in the Arctic glaciated fjord of Hornsund.
The authors thank M. Zajączkowski, B. Witalis and T. Kirzeniewski for help with fieldwork in Hornsund. Dr H. M. Feder, Prof. J. M. Węsławski, Prof. M. Thiel and an anonymous reviewer offered valuable comments on the manuscript. This study has been completed thanks to funds from the Polish National Science Centre (grant no. E12AP004) and the Polish Ministry of Science and Higher Education (grant no. 396/N-EOL-ENC/2009/0).
Christie H., Norderhaug K.M. & Fredriksen S. 2009. Macrophytes as habitat for fauna. Marine Ecology Progress Series 396, 221–233. Publisher Full Text
Fenwick G.D. 1976. The effect of wave exposure on the amphipod fauna of the alga Caulerpa brownii. Journal of Experimental Marine Biology and Ecology 25, 1–18. Publisher Full Text
Geptner M.V. 1963. Biologija razmnoženija i žiznennyj cikl Caprella septentrionalis Krøyer (Amphipoda, Caprellidae) v rajone belomorskoj biologičeskoj stancii moskovskogo universiteta. (Reproduction biology and life cycle of Caprella septentrionalis Krøyer [Amphipoda, Caprellidae] in the White Sea.) Zoologičeskij Žurnal 42, 1619–1630.
Graham M.H., Vasquez J.A. & Buschmann A.H. 2007. Global ecology of the giant kelp Macrocystis: from ecotypes to ecosystems. Oceanography and Marine Biology: an Annual Review 45, 39–88.
Guerra-García J.M. 2002. Re-descriptions of Caprella linearis (Linnaeus, 1767) and C. septentrionalis Krøyer, 1838 (Crustacea: Amphipoda: Caprellidea) from Scotland, with an ontogenetic comparison between the species and a study of the clinging behaviour. Sarsia 87, 216–235. Publisher Full Text
Guerra-García J.M. & García-Gómez J.C. 2001. Spatial distribution of Caprellidea (Crustacea: Amphipoda): a stress bioindicator in Ceuta (North Africa, Gibraltar area). Marine Ecology 22, 357–367. Publisher Full Text
Hagerman L. 1966. The macro- and microfauna associated with Fucus serratus L., with some ecological remarks. Ophelia 3, 1–43. Publisher Full Text
Hirst A.J. 2007. Vertical stratification of mobile epiphytal arthropod assemblages between the canopy and understorey of subtidal macroalgae. Marine Biology 150, 427–441. Publisher Full Text
IPCC (Intergovernmental Panel on Climate Change) 2007. Climate change 2007: synthesis report. Cambridge: Cambridge University Press.
Jones C.G., Lawton J.H. & Shachak M. 1994. Organisms as ecosystem engineers. Oikos 69, 373–386. Publisher Full Text
Kaczmarek H., Włodarska-Kowalczuk M., Legeżyńska J. & Zajączkowki M. 2005. Shallow sublittoral macrozoobenthos in Kongsfjord, west Spitsbergen, Svalbard. Polish Polar Research 26, 137–155.
Krause-Jensen D., Marbà N., Olesen B., Sejr M.K., Christensen P.B., Rodrigues J., Renaud P.E., Balsby T.J.S. & Rysgaard S. 2012. Seasonal sea ice cover as principal driver of spatial and temporal variation in depth extension and annual production of kelp in Greenland. Global Change Biology 18, 2981–2994. PubMed Central Full Text | Publisher Full Text
Larsen K. 1998. Caprellidea (Crustacea: Amphipoda) from Faroe Islands waters, with a key to the north-Atlantic species. Fródskaparrit 46, 81–90.
Legeżyńska J., Kędra M. & Walkusz W. 2012. When season does not matter: summer and winter trophic ecology of Arctic amphipods. Hydrobiologia 684, 189–214. Publisher Full Text
Lippert H., Iken K., Rachor E. & Wiencke C. 2001. Macrofauna associated with macroalgae in the Kongsfjord (Spitsbergen). Polar Biology 24, 512–522. Publisher Full Text
Marfenin N.N. & Belorusceva S.A. 2006. Illjustrirovannyj atlas bespozvonočhnyh Belogo Morja. (Illustrated atlas of invertebrates of the White Sea.) Pp. 222–223. Moscow: Tovariščestvo Naučnyh Izdanij KMK.
McCain J.C. 1968. The Caprellidae (Crustacea: Amphipoda) of the western North Atlantic. Bulletin United States National Museum 278, Pp. 1–147. Washington, DC: Smithsonian Institution Press.
Moore P.G. 1977. Inorganic particulate suspensions in the sea and their effects on marine animals. Oceanography and Marine Biology: an Annual Review 15, 225–363.
Ronowicz M., Włodarska-Kowalczuk M. & Kukliński P. 2008. Factors influencing hydroids (Cnidaria: Hydrozoa) biodiversity and distribution in Arctic kelp forest. Journal of the Marine Biological Association of the United Kingdom 88, 1567–1575. Publisher Full Text
Ronowicz M., Włodarska-Kowalczuk M. & Kukliński P. 2011. Patterns of hydroid (Cnidaria, Hydrozoa) species richness and distribution in an Arctic glaciated fjord. Polar Biology 34, 1437–1445. Publisher Full Text
Swerpel S. 1985. The Hornsund fiord: water masses. Polish Polar Research 6, 475–496.
Tatarek A., Wiktor J. & Kendall M.A. 2012. The sublittoral macroflora of Hornsund. Polar Research 31, article no, 18900, doi: 10.3402/polar.v31i0.18900. Publisher Full Text | Publisher Full Text
Vasilenko S.V. 1974. Kaprellidy (Morskie Kozocčki) morej SSSR i sopredel'nych vod: otrjad Amphipoda (semejstva Paracercopidae, Phtisicidae, Caprellidae). (Caprellids of the seas of the USSR and adjacent waters. Order Amphipoda (families Paraceropidae, Phtisicidae, Caprellidae.) Leningrad: Izdatel'stvo Nauka.
Węsławski J.M. 1990. Distribution and ecology of south Spitsbergen coastal marine Amphipoda (Crustacea). Polish Archives of Hydrobiology 37, 503–519.
Węsławski J.M., Koszteyn J., Zajączkowski M., Wiktor J. & Kwaśniewski S. 1995. Fresh water in Svalbard fjord ecosystems. In H.R. Skjoldal et al. (eds.): Ecology of fjords and coastal waters. Pp. 229–241. Amsterdam: Elsevier Science.
Węsławski J.M. & Legeżyńska J. 2002. Life cycle of some Arctic amphipods. Polish Polar Research 23, 253–264.
Włodarska-Kowalczuk M., Kukliński P., Ronowicz M., Legeżyńska J. & Gromisz S. 2009. Assessing species richness of macrofauna associated with macroalgae in Arctic kelp forests (Hornsund, Svalbard). Polar Biology 32, 897–905. Publisher Full Text
