Incomplete degradation of lichen usnic acid and atranorin in Svalbard reindeer (Rangifer tarandus platyrhynchus)

Michał Hubert Węgrzynsymbol1, Paulina Wietrzyk-Pełkasymbol1, Agnieszka Galantysymbol2, Beata Cykowska-Marzenckasymbol3 & Monica Alterskjær Sundsetsymbol4

1Prof. Z. Czeppe Department of Polar Research and Documentation, Institute of Botany, Jagiellonian University, Kraków, Poland;
2Department of Pharmacognosy, Pharmaceutical Faculty, Medical College, Jagiellonian University, Kraków, Poland;
3Laboratory of Bryology, W. Szafer Institute of Botany, Polish Academy of Sciences, Kraków, Poland;
4Department of Arctic and Marine Biology, UiT—The Arctic University of Norway, Tromsø, Norway

(Published 23 January 2019)


Previous studies of Eurasian tundra reindeer (Rangifer tarandus tarandus) in Norway indicate that their rumen microbiota play a key role in degrading lichen secondary metabolites. We investigated the presence of usnic acid and atranorin in faecal samples from Svalbard reindeer (R. tarandus platyrhynchus). Samples were collected in Bolterdalen valley together with vegetation samples from the study site. The mesic tundra in this area was dominated by vascular plants (59% of vegetation cover). Bryophytes (16%) and lichens (25%) were also present. Qualitative and quantitative analyses of usnic acid and atranorin in lichen and faeces samples were performed using high-performance liquid chromatography. Contents of atranorin averaged 12.49 ± 0.41 mg g–1 in the thalli of Stereocaulon alpinum, while the average level of usnic acid was lowest in Cladonia mitis (12.75 ± 2.86 mg g–1) and highest in Flavocetraria cucullata (34.87 ± 0.47 mg g–1). Atranorin and usnic acid were detected in the faecal samples, averaging 0.41 ± 0.53 and 0.74 ± 1.11 (mean ± SD) mg g–1 dry matter, respectively. The presence of lichen secondary compounds in faeces from Svalbard reindeer shows that lichens are indeed included in their diet, although probably in small amounts because of depleted pastures. Contrary to previous findings in reindeer on mainland Norway, atranorin and usnic acid are not completely degraded or absorbed in Svalbard reindeer. To elucidate the mechanisms behind detoxification of lichen secondary compounds in reindeer, more research is needed on their respective rumen microbiomes and digestive enzymes.

Lichen secondary metabolites; ruminant; faecal samples; Spitsbergen; Arctic

HPLC: high-performance liquid chromatography
SD: standard deviation

Citation: Polar Research 2019, 38, 3375,

Copyright: © 2019 M.H. Węgrzyn et al. This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial 4.0 International License (, permitting all non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Published: 23 January 2019

Competing interests and funding: No potential conflict of interest was reported by the authors.
The authors are grateful to their private sponsors for enabling them to organise their expedition to Spitsbergen. They also received financial support from the statutory fund of the Institute of Botany of the Jagiellonian University (DS/MND/WBiNoZ/23/2015). The work of BCM was supported by the statutory fund of the W. Szafer Institute of Botany of the Polish Academy of Sciences.

Contact: Michał Hubert Węgrzyn, Prof. Z. Czeppe Department of Polar Research and Documentation, Institute of Botany, Jagiellonian University, Gronostajowa 3, 30-387 Kraków, Poland. E-mail:


Lichens are associations between fungi and algae or cyanobacteria and are hence chemically and structurally very different from vascular plants. Lichens synthesize and accumulate a large variety of secondary metabolites (Orange et al. 2001) that serve diverse functions, including defence against herbivory and microbes. Perhaps the most studied of these secondary compounds are usnic acid and atranorin (Cocchietto et al. 2002; Honda et al. 2010; White et al. 2014). Atranorin (3-hydroxy-4-methoxy-carbonyl-2,5-dimethylphenyl; C19H18O8) is a β-orcinol derivative biosynthesized through the acetyl-polymalonyl pathway (Studzinska-Sroka et al. 2017). Usnic acid (2,6-diacetyl-7,9-dihydroxy-8,9b-dimethyl-1,3(2H,9bH)-dibenzo-furandione; C18H16O7) is a yellow pigment, which occurs in two enantiomeric forms (Ingólfsdóttir 2002). Both substances are insoluble in water. Solubility is weak in methyl and ethyl alcohol, but both compounds dissolve very well in acetone and chloroform (Stark et al. 1950; Podterob 2008). The process of usnic acid hydrolysis is not known, whereas the atranorin hydrolysis takes place after application of water acidified to pH 2 with HCl and heated for one day at 60°C (Bourgeois et al. 1999). Total degradation of the usnic acid is known to occur under extreme conditions after the use of strong bases or acids and long-term heating at high temperature (Shoji 1962). Absorbing and protecting the lichen from UV radiation, atranorin and usnic acid are completely resistant to UV radiation (BeGora & Fahlset 2000, 2001). There are no studies so far on the microbial degradation process of these substances in nature, apart from in the digestive system of ruminants (Palo 1993; Sundset et al. 2008; Barboza et al. 2010; Sundset et al. 2010; Glad et al. 2014; Sundset et al. 2015). Laboratory studies have shown that the bacteria Pseudomonas sp. (Kutney, Leman et al. 1977), the mould fungus Mucor globosus (Kutney et al. 1984) and the soil fungus Mortierella isabellina (Kutney, Baarschers et al. 1977) can take part in the decomposition of usnic acid derivatives.

Data regarding usnic acid degradation or absorption are limited, although the liver toxic effect in humans is well known. Many in vitro studies have described the mechanism of usnic acid toxicity as the uncoupling of oxidative phosphorylation in liver mitochondria (Araújo et al. 2015), but information on usnic acid pharmacokinetics in the living organism is scarce. Some experiments on rabbits indicate that mean terminal half-life of usnic acid level in plasma was 18.9 ± 2.9 hours after oral administration (Krishna & Venkataramana 1992). No information exists on the in vivo metabolism of usnic acid; only some in vitro studies on human liver fraction suggest the presence of oxidized metabolites and two glucuronide conjugates after incubation (Foti et al. 2008). Recent results on human, rat and mouse microsomes in vitro indicated that usnic acid was converted into two reactive metabolites, which formed adducts with glutathione, and suggested a possible structure of the metabolites (Piska et al. 2018). Further experiments are needed to explain the metabolic fate of usnic acid in the living organism.

Both atranorin and usnic acid are known for their antiviral, antimicrobial and antiprotozoal properties and their importance in chemical ecology by demonstrating lichen–microbe, lichen–plant and lichen–animal interactions (Ingólfsdóttir 2002). Lichens are the only organisms able to synthesize usnic acid (Ingólfsdóttir 2002), while atranorin can also be found in two bryophytes, the tropical species Frullania trichodes (Ragasa et al. 2016) and the Eurasian range species Homalia trichomanoides (Wang et al. 2005), and some tropical trees (de Carvalho et al. 2000; Nasser et al. 2009). None of the above species is present in Svalbard. In the Arctic, the only known sources of both compounds are terricolous and fruticose lichens (Table 1).

Table 1  Macrolichens in the study area showing presence (+) of the secondary metabolites (atranorin and usnic acid) (Olech et al. 2011; Węgrzyn et al. 2013; Węgrzyn et al. 2016; Ziaja et al. 2016).
Species of macrolichens Atranorin Usnic acid
Cladonia amaurocraea (Flörke) Schaer. +
Cladonia gracilis (L.) Willd. +
Cladonia macroceras (Delise) Hav. +
Cladonia mitis Sandst. +
Cladonia pleurota (Flörke) Schaer. +
Cladonia rangiferina (L.) Weber ex Wigg. +
Cladonia uncialis (L.) Wigg. +
Flavocetraria cucullata (Bellardi) Kärnefelt & Thell +
Flavocetraria nivalis (L.) Kärnefelt & Thell +
Stereocaulon alpinum Laur. +

Atranorin is antibacterial, but its toxicity has not been shown in animal models so far (De Melo et al. 2011), while usnic acid can be toxic to both animals and humans (Dailey et al. 2008) and even lethal in high doses, as shown for sheep (Durazo et al. 2004). Still lichens may contribute more than 50% of the winter diet of reindeer in Subarctic and Arctic areas where lichens are an abundant part of the vegetation (Borch-Iohnsen et al. 1996; Svihus & Holand 2000; Storeheier et al. 2002; Denryter et al. 2017). It is not fully understood how reindeer cope with such high intakes of lichen secondary compounds. There may be several answers to this, but studies so far have indicated that usnic acid and other phenolic secondary compounds are detoxified through microbial degradation in the rumen (Sundset et al. 2009). In addition, endogenous enzymes in the intestine and/or the liver of the animal may also contribute to detoxification. However, if not degraded or only partly degraded, and not absorbed, the secondary compounds will appear in the faeces. In general, lichens are low in proteins but contain large amounts of polysaccharides and are easily digested by reindeer, as long as the rumen microflora has had time to adapt to the substrate (Storeheier et al. 2002). The bacterial and archaeal profiles in the rumen and cecum of Eurasian tundra reindeer (Rangifer tarandus tarandus) in Norway change significantly in response to a pure lichen diet compared to a concentrate reindeer feed (Salgado-Flores et al. 2016). The ability of reindeer to utilize lichens as a source of energy and nutrients indicates that the rumen microflora must have adapted both resistance to and even enzymes to degrade usnic acid and other secondary phenolic compounds in the lichens (Sundset et al. 2015). This hypothesis is supported by studies indicating that the rumen microbiota in reindeer play a key role in detoxifying usnic acid (Palo 1993; Sundset et al. 2008; Sundset et al. 2010; Glad et al. 2014). Furthermore, Sundset et al. (2010) demonstrated the complete degradation of usnic acid in the rumen of lichen-fed reindeer in Norway, documenting a very efficient rumen microbial degradation of this lichen secondary compound in these animals, with no usnic acid appearing in their liver or faeces.

Despite their ingestion, lichens are not essential to the survival of reindeer as not all populations of reindeer have access to lichens as part of their natural diet. On the Svalbard tundra, the presence of fruticose lichens has decreased with the increase in the number of reindeer (Wegener et al. 1992; Wegener & Odasz-Albrigtsen 1998). Comparative studies of the conservation of tundra plant communities in Sørkapp Land and Kaffiøyra, both on the island of Spitsbergen, showed that Svalbard reindeer eat mainly Flavocetraria nivalis, F. cucullata and Cladonia mitis. Svalbard reindeer do not feed on Cetrariella delisei, which means that its contribution in tundra plant communities in Svalbard increases significantly (Węgrzyn et al. 2013; Węgrzyn & Wietrzyk 2015; Ziaja et al. 2016; Węgrzyn et al. 2016).

The Svalbard reindeer (R. tarandus platyrhynchus) is the most northerly herbivorous mammal in the world. They have been isolated and resident at the archipelago of Svalbard (74–81°N) for thousands of years (Van der Knaap 1986; Tyler 1986; Reimers 2012) and are adapted to austere nutritional conditions (Hakala et al. 1986; Tyler 1986; Solberg et al. 2001; Bjørkvoll et al. 2009; Hansen et al. 2010). During the short Arctic summer, Svalbard reindeer feed on a lush tundra vegetation of vascular plants, including grasses, herbs, sedges and deciduous shrubs in the lowland plains and valleys, to accumulate fat for the winter (Reimers 1982; Tyler 1986; Staaland et al. 1993; Henriksen et al. 1997; Sørmo et al. 1999; Lindner 2003; Bjørkvoll et al. 2009). These body reserves are usually exhausted in early winter and for the rest of the winter the reindeer rely on pastures along mountain slopes, plateaus and ridges where less snow accumulates (Tyler 1986; Bjørkvoll et al. 2009). The winter diet consists of bryophytes and fibrous vascular plants (Sørmo et al. 1999; Bjørkvoll et al. 2009). Optimal utilization of these poor-quality, fibrous forages is crucial for survival through the long, cold winter. Svalbard reindeer have adapted a unique rumen microbiome that is unusually effective in degrading cellulose and plant biomass (Orpin et al. 1985; Sundset et al. 2007; Sundset et al. 2009; Pope et al. 2012).

The aim of this study was to investigate whether Svalbard reindeer are capable of degrading lichen secondary compounds such as usnic acid and atranorin. Do Svalbard reindeer seek and eat terricolous and fruticose lichens—the only sources of these two substances in Svalbard—despite their low coverage, and are they able to degrade these lichen secondary compounds—or do they appear in their faeces?

This research was carried out in three stages: (1) the quantitative proportion of fruticose lichens in the tundra ecosystem grazed by reindeer in the Borteldalen valley in Svalbard was determined by using phytosociological methods (Braun-Blanquet 1964); (2) fruticose lichens occurring in the research area were collected and analysed to determine their concentration of atranorin and usnic acid; and (3) reindeer faeces samples occurring in the research area on the transect were collected and analysed to determine their concentration of atranorin and usnic acid.

Our hypothesis is that the relatively low abundance of lichens in Svalbard has reduced the capacity of Svalbard reindeer to metabolize atranorin and usnic acid compared to populations with access to abundant lichens in their environments. Therefore, we will detect atranorin and usnic acid in the faeces of reindeer in our study.

Material and methods


The fieldwork was conducted in Bolterdalen in July and August 2015. This valley (78°08’28.6”, N 16°00’13.8”) is located in central Spitsbergen about 10 km east of Longyearbyen. Twenty-eight sampling sites were designated along the transect running through the valley (Fig. 1). The sample sites were located on the eastern hillside at heights ranging between 150 and 250 m a.s.l. At each sampling site (10 m × 10 m), all reindeer faecal material was collected and divided into three separate samples for chemical analyses. Along the transect, in the selected sites of faeces collection, 1 m2 plots were designated to map the vegetation of the study area. Plot sites were selected in accordance with the phytosociological methodology (Braun-Blanquet 1964), with the objective of capturing the species diversity of the habitat. Within plots, the species of vascular plants, bryophytes and lichens and their percentage cover were obtained. Ten plots were analysed. Vegetation data were calculated according to the Braun-Blanquet scale (Braun-Blanquet 1964). Fruticose lichens were collected from the plots to determine usnic acid and atranorin contents in the lichen thallus. The small amounts of lichens in the study area (which were heavily grazed by reindeer) made it difficult to collect all studied lichen species in all sampling sites. Altogether, seven samples of the fruticose lichen were collected: three individual samples of C. mitis, one sample of F. cucullata, one sample of F. nivalis (containing usnic acid) and three samples of Stereocaulon alpinum (containing atranorin). The lichen specimens of each species were divided into three separate samples for chemical analyses. All samples were air-dried and packed in sealed plastic bags.

Fig 1

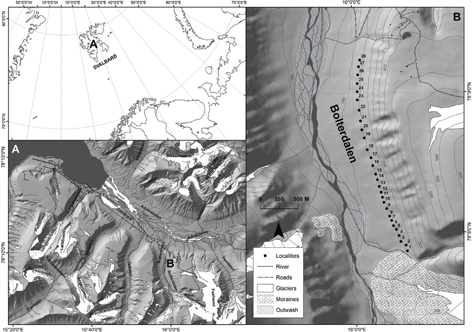

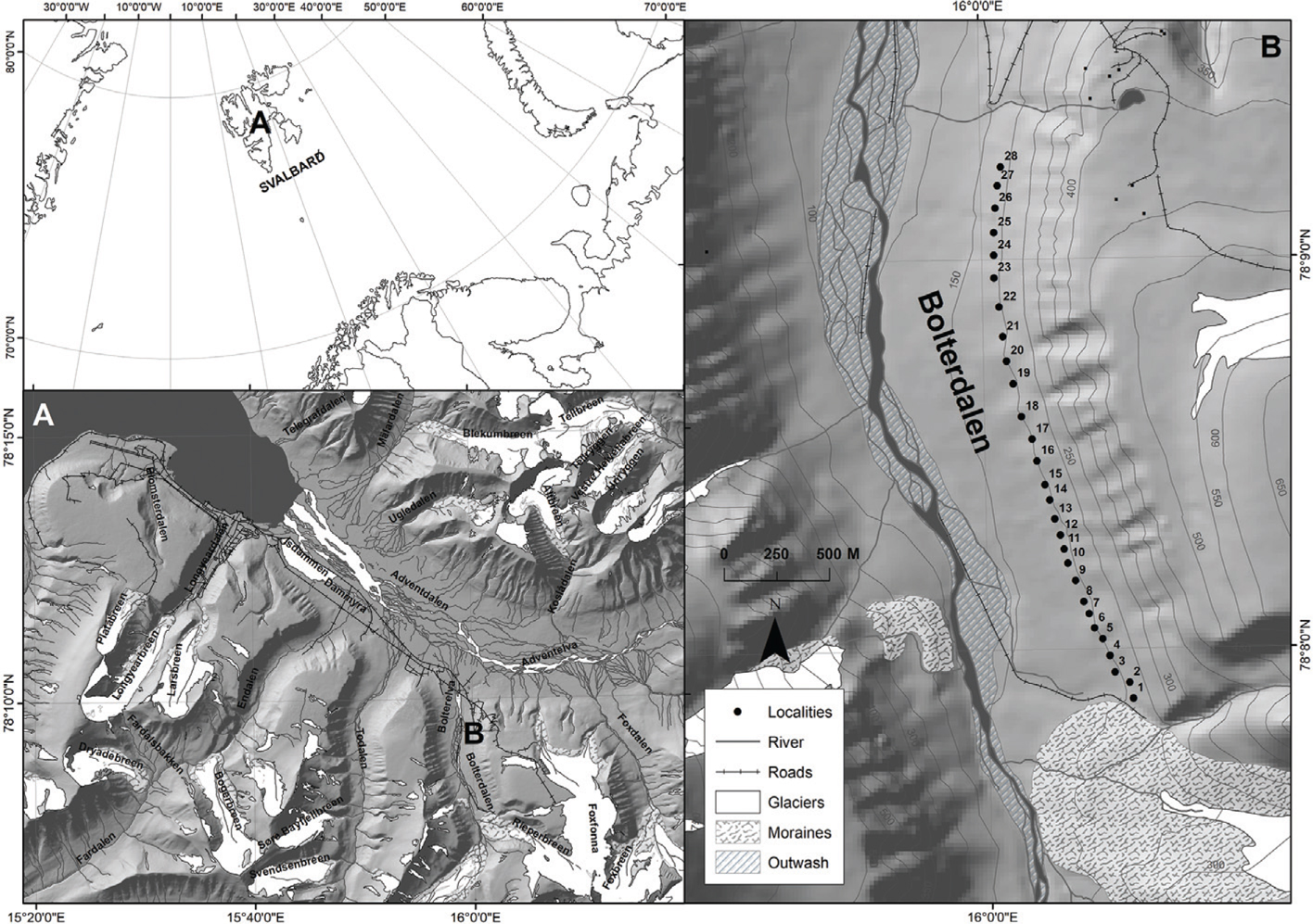

Fig. 1  Map of study area showng the location of Adventdalen (A) and Bolterdalen (B) (© Norwegian Polar Institute 2016).

Chemical analyses

The quantity of atranorin and usnic acid in the faecal and lichen samples was examined according to the method described by Manojlović et al. (2010), with a minor modification. The modification to the method was that the mobile phase proportion was changed from 80:20 to 85:15, which gave better peak separation in the chromatograms. The analysis was performed by using a Dionex high-performance liquid chromatography (HPLC) system with a C-18 column (5 µm, 250 mm × 4.6 mm) and a C-18 precolumn (5 µm, 10 mm × 4 mm) at 25°C. The mobile phase featured water with 1% 0.1N H3PO4 (v/v) (A) and methanol (B), A:B 15:85. The sample injection volume was 20 μl and the flow rate was 1.0 ml/min. The task was performed with a photodiode array detector set at 250 nm.

To prepare stock standard solutions for the calibration curve, 5 mg of standard atranorin (Chromadex) and (+)-usnic acid (Sigma-Aldrich) was dissolved in 5 ml chloroform. The appropriate volumes were transferred to volumetric flasks and diluted with the same solvent to give working standard solutions of the concentrations: 1, 0.5, 0.25, 0.125 and 0.0625 mg ml–1. Each concentration was analysed in triplicate in the conditions described above to obtain a calibration curve.

Samples of the reindeer faeces and lichen material, previously dried at room temperature for seven days, were ground in a mortar. From each sample, an amount of 100 mg was used for extraction with HPLC grade chloroform (10 ml) in a water bath (90°C) under reflux for one hour. The extracts were transferred to a 10-ml volumetric flask. Volumes of 1.5 ml were filtered through a 0.45-µm micropore membrane into HPLC vials for analysis. Atranorin and usnic acid were identified by comparing retention times with that of the reference compounds and the amounts were quantified by integrating peak area with the reference to the standard curve.

Statistical analyses

The Braun-Blanquet method (Braun-Blanquet 1964) was used to characterize vegetation in the Bolterdalen valley. This method involves making a series of 1-m2 phytosociological plots (divided into 100 squares, each 10 cm × 10 cm), within which the species numbers and percentage cover of species of vascular plants, bryophytes and lichens are obtained. One square corresponds to 1% cover of each taxon (Table 2). The synthetic table of vegetation in Bolterdalen valley was created based on data from plots. For each species the stability value was determined, which is the ratio within which species were present in all plots. It was calculated to specify the percentage of sampling sites in which the species were recorded.

Table 2  Synthetic table of vegetation showing the species coverage according to the Braun-Blanquet scale: r is 0.1%; + is 0.5%; 1 is < 5%; 2 is 5–25%; 3 is 25–50%; 4 is 50–75%; 5 is 75–100% and stability of each taxon (percentage of sampling sites in which species were recorded): I is 0–20%; II is 20–40%; III is 40–60%; IV is 60–80%; V is 80–100% (Braun-Blanquet 1964). For lichens, the morphological form of thallus is indicated: C is crustose, Fr is fruticose, Fo is foliose and S is squamulose.
Species Plot numbers
1 2 3 4 5 6 7 8 9 10 Stability
Vascular plants
Dryas octopetala 3 2 2 3 3 3 3 3 3 3 V
Salix polaris 1 3 1 1 3 2 2 2 1 1 V
Bistorta vivipara + + 1 2 2 2 1 + 2 1 V
Poa alpina var. vivipara + 1 + + 2 1 + + + 1 V
Cassiope tetragona 1 + + 1 1 + 1 1 1 + V
Luzula confusa + + + 1 r + + r + V
Cerastium arcticum + + 1 1 + 1 IV
Cerastium regelii + + + + + 1 IV
Cochlearia groenlandica r r r II
Oxyria digyna 3 + + II
Draba alpina r 1 + II
Saxifraga caespitosa + + I
Saxifraga cernua + + I
Saxifraga hieracifolia + + I
Draba lactea + + I
Festuca rubra + + I
Pedicularis dasyantha + I
Saxifraga oppositifolia + I
Sanionia uncinata 1 1 1 1 1 1 + + + 1 V
Aulacomnium turgidum + 1 + 1 1 1 1 + 1 + V
Ditrichum flexicaule 1 1 1 1 1 + + + + 1 V
Dicranum scoparium 1 1 1 1 1 + + + + 1 V
Tritomaria quinquedentata + + + 1 1 1 1 1 1 + V
Scorpidium scorpioides 1 1 1 1 1 + r + + 1 V
Hygrohypnum alpestre r + 1 + r + + r r r V
Timmia norvegica r + 1 + + + r r r r V
Dicranum laevidens r + 1 + r + r r r r V
Lophozia badensis r + + + r + r r r r V
Racomitrium lanuginosum + + 2 + + 1 + 2 + V
Syntrichia ruralis + + + + r r + r IV
Bartramia ithyphylla + + r + + r r + IV
Ptilidium ciliare + 1 I
Racomitrium ericoides + r I
Barbilophozia kunzeana + + I
Blepharostoma trichophyllum + I
Stereocaulon alpinum Fr 1 2 1 2 1 2 1 1 2 + V
Collema ceraniscum C 1 + + 2 1 2 1 1 + + V
Ochrolechia frigida C + 1 + 1 + 1 1 1 2 + V
Protopannaria pezizoides C 1 + + + + + + 1 1 1 V
Cladonia pyxidata Fr + + + + + + + 1 1 1 V
Cladonia macroceras Fr r r 1 1 + + + + 1 + V
Cetrariella delisei Fr r + + 1 + + + + + + V
Ochrolechia androgyna C + + r + + + + 1 + + V
Peltigera venosa Fo 3 1 2 + + + + + IV
Peltigera didactyla Fo 2 + + + 1 1 1 + IV
Cladonia mitis Fr + + + + + III
Psoroma hypnorum C + + + r + III
Peltigera leucophlebia Fo + + 1 II
Cladonia coccifera S/Fr r + + II
Flavocetraria cucullata Fo + + + II
Flavocetraria nivalis Fo + + I
Caloplaca tiroliensis C r r I
Caloplaca ammiospila C r r I
Solorina crocea Fo r r I
Biatora subduplex C r + I
Lecidea ementiens C r + I
Arthrorhaphis alpina C + I
Polyblastia shaereriana C + I
Rinodina turfacea C r I


Study area vegetation

Table 2 shows the list of recorded species with the degree of coverage and stability of each taxon. Vegetation was represented by mesic tundra dominated by vascular plants (59% of vegetation cover), mainly dwarf shrubs such as Dryas octopetala, Cassiope tetragona and Salix polaris. Bryophytes (16% of vegetation cover) and lichens (25% of vegetation cover) comprised less of the vegetation cover than vascular plants (Table 2).

Among the lichens, the crustose and foliose species were dominant. Foliose species such as Peltigera venosa and crustose species such as Collema ceraniscum and Ochrolechia frigida were the main components of biological soil crusts. Fruticose lichens, for example, F. nivalis, F. cucullata and C. mitis, occurred rarely. S. alpinum, C. delisei and C. macroceras were the only fruticose species present in all plots (Table 2). Of the above-mentioned species, S. alpinum had the highest percentage cover.

Determination of usnic acid and atranorin contents in lichens

Four lichen species were studied for secondary compounds (Table 3). Stereocaulon alpinum was chosen as the main source of atranorin because of its relatively high occurrence in the study area (Table 2). The mean content of atranorin in thalli of S. alpinum was 12.49 mg g–1 (Table 3). Of the three lichen species containing usnic acid, the highest mean content (34.87 mg g–1) was detected in F. cucullata (Table 3), an intermediate content was detected in F. nivalis (24.23 mg g–1) and the lowest content was found in the thalli of C. mitis (12.75 mg g–1; Table 3).

Table 3  Average content of usnic acid and atranorin (mg g–1), with SD, in lichen samples collected in the study area.
Species n Average SD
Usnic acid
Cladonia mitis 9 12.75 2.86
Flavocetraria cucullata 3 34.87 0.47
Flavocetraria nivalis 3 24.23 0.85
Stereocaulon alpinum 9 12.49 0.405

Detection of usnic acid and atranorin in reindeer faeces

Both lichen secondary metabolites, usnic acid and atranorin, were detected in the majority of the reindeer faeces samples collected (Table 4). Atranorin was detected in 21 (75%) of the samples (n = 28), while usnic acid was detected in 19 samples (68%). Five samples contained neither atranorin nor usnic acid (Table 4). In addition to these latter samples, atranorin was absent from a further five samples and usnic acid was absent from a further two samples. Atranorin content varied between 0.05 and 1.81 mg g–1, and usnic acid varied between 0.04 and 4.17 mg g–1. The mean content of usnic acid (0.74 mg g–1) calculated for 28 samples was almost double that of the mean atranorin levels (0.41 mg g–1).

Table 4  The average content of usnic acid and atranorin (mg g–1), with SD, in reindeer faeces at different sampling sites (see Fig. 1).
Sampling sites N Atranorin Usnic acid
Average SD Average SD
1 3 1.8 0.014 0.112 0.008
2 3 1.22 0.049 0.337 0.02
3 3 1.22 0.062 0.225 0.027
4 3 0.335 0.015 1.25 0.078
5 3 0 0 0.3 0.046
6 3 0.065 0.007 1.15 0.074
7 3 0.55 0.019 0 0
8 3 0.157 0.022 3.8 0.158
9 3 0.08 0.007 1.52 0.391
10 3 0 0 4.02 0.211
11 3 1.07 0.05 2.25 0.205
12 3 0.07 0.009 0.08 0.01
13 3 0.685 0 1.46 0.072
14 3 1.05 0.017 0.077 0
15 3 0 0 0.063 0.02
16 3 0.245 0.008 1.28 0.085
17 3 1.58 0.02 0.109 0.022
18 3 0.334 0.01 0.353 0.039
19 3 0.116 0.005 0.09 0.01
20 3 0 0 0 0
21 3 0 0 0 0
22 3 0 0 0 0
23 3 0 0 0 0
24 3 0 0 0 0
25 3 0.067 0.015 1.98 0.266
26 3 0 0 0.057 0.015
27 3 0.545 0.014 0.073 0.015
28 3 0.269 0.026 0 0


This study demonstrates that both usnic acid and atranorin are excreted in the faeces of free-ranging Svalbard reindeer (Table 4). This is consistent with our hypothesis that the studied lichen substances are not completely degraded in the digestive tract of Svalbard reindeer. Previous studies of usnic acid digestion conducted on Eurasian tundra reindeer in Norway in controlled feeding experiments, in which the animals were fed a pure lichen diet, showed that usnic acid was completely degraded in the rumen, while perlatolic acid was still appearing in their faeces (Sundset et al. 2010). Joo et al. (2014) created a length–heterogeneity database based on potential food sources and faecal samples from free-ranging Svalbard reindeer on summer pasture to investigate their forage preferences. Using length–heterogeneity polymerase chain reaction on faecal samples, they found that lichens (Stereocaulon sp. and Ochrolechia sp.) contributed to 20% of the “peak area” in 2012 and 7% in the 2011 samples, while plants such as Salix polaris and Saxifraga oppositifolia contributed the most. The incomplete degradation of atranorin and usnic acid by Svalbard reindeer shown here demonstrates that Svalbard reindeer are indeed eating lichens, which contain these secondary metabolites, although their intake must be low on account of the scarcity of lichens on their feeding grounds. This is confirmed by our phytosociological survey (Table 2), which shows that lichens were only a small part of plant communities, most likely because of the heavy grazing pressure in the area by reindeer (Wegener et al. 1992; Wegener & Odasz-Albrigtsen 1998; Węgrzyn et al. 2013; Węgrzyn et al. 2016). The results obtained for the pasture coverage of fruticose lichens containing usnic acid and atranorine in tundra communities give incomplete knowledge about the actual amount of lichen consumed by the reindeer. Information on the biomass intake of each plant would be better; however, in the field conditions, when examining free-living animals, the biomass parameter of each of the fractions (lichens, bryophytes and vascular plants) remains to be determined. While data on rumen contents (Bjørkvoll et al. 2009) may offer some insights, it must be noted that these results do not allow a reasonable estimation of biomass intake of plant fractions as plant degradation is not uniform across species.

Our study (Table 3) furthermore demonstrates that usnic acid (24.23 mg g–1) concentration in F. nivalis sampled in the study area is lower than those reported from Kongsfjorden in north-western Spitsbergen. Bjerke et al. (2004) found the average content of usnic acid in the F. nivalis thallus, where it was 60.3 mg g–1. Comparing different areas, Bjerke et al. (2005) also found somewhat variable usnic acid concentrations: 53 mg g–1 in Kangerlussuaq (western Greenland), 52.8 mg g–1 in Tromsø (northern Norway), 52.4 mg g–1 in Punta Arenas (southern Chile) and 51.1 mg g–1 in Ny-Alesund (Svalbard). These results are also high in relation to our results from Bolterdalen, Svalbard. The variability in the concentration of usnic acid in the thallus is correlated with climatic factors (Bjerke 2004), with the coldest regions having the highest levels. Additional, positive correlations with altitude were found in one lichen study (Bjerke et al. 2004), but these were probably related to lower temperatures at higher altitudes. Such an explanation of the differences in the content of usnic acid in other studies agrees with the amounts that have been obtained in the thalli from the Bolterdalen valley, which is located in the warmest region of Spitsbergen.

The lichen diet used in the Sundset et al. study (2010) was dominated by C. stellaris and contained 9.1 mg g–1 in dry matter. The usnic acid values obtained for C. mitis, F. nivalis and F. cucullata in the current study are much higher (Table 3). The concentration of atranorin in Stereocaulon sp. from boreal woodland and tundra in Alaska (Falk et al. 2008) was only around 4.84 mg g–1, which is much lower compared to our Svalbard samples. It is striking that secondary metabolites were recorded in the faeces of our Svalbard reindeer despite the low coverage of lichens in the tundra.

We hypothesize that the low lichen input in Svalbard reindeer creates low exposure of the rumen microflora to these antibiotic secondary compounds, which means less evolutionary pressure for the microbiome to adapt coping mechanisms such as resistance and utilization and detoxification of these dietary antinutrients. This may result in reduced degradation of secondary metabolites by the gut microbes (or endogenous enzymes, if present) and might explain the excretion of undigested or absorbed secondary compounds with the faeces. This mechanism would also account for the lack of secondary metabolites in the faeces of reindeer in mainland Norway fed with a pure lichen diet in the Sundset et al. study (2010).

The absence of atranorin and/or usnic acid in some of the samples (Table 4) may be due to several factors, including lichen avoidance by reindeer and different stages of usnic acid degradation in the rumen of certain reindeer connected with different accessibility to lichen secondary compounds by microbial community or seasonal changes in diet selection. The faecal samples were not collected fresh straight after defecation. However, secondary lichen compounds are only dissolved in aromatic solvents like acetone, toluene and benzene. Rain and snow have not dissolved or washed out these metabolites from the faecal material and have not lowered their concentration in our samples.

Storeheier et al. (2002) reported the medium range of digestibility of different lichen species in ruminal inoculum in vitro to be between 41 and 78%, while Sundset et al. (2010) reported the digestibility of lichens eaten by reindeer to amount to approximately 74%. This indicates that the total digestion of lichens may also influence the digestibility of secondary metabolites inside the lichen thalli. This may be associated with the accessibility of lichen secondary compounds deposited in lichen thalli to degradation by rumen microbiota. In the study conducted by Sundset et al. (2010), a diet of mainly C. stellaris was used to feed the reindeer. This lichen species does not have a typical cortex layer and usnic acid is deposited outside loose medullary fungal hyphae (Smith et al. 2009). The access to the usnic acid for the rumen microbes may consequently be quicker with C. stellaris compared to species from the Flavocetraria genus, in which usnic acid is mainly deposited in a cortex composed of dense conglutinated hyphae (Kärnefelt et al. 1994; Węgrzyn et al. 2013), which might make it less digestible. Previous studies have shown that the rumen microbiome of the Svalbard reindeer is unique and different from that of the Norwegian reindeer (Orpin et al. 1985; Sundset et al. 2007; Pope et al. 2012). The geographical isolation of Svalbard’s reindeer population might explain the loss of symbiotic rumen microorganisms and the reason for not allowing full degradation of usnic acid as observed in the mainland reindeer population. Our results indicate differences in secondary compound degradation between Norwegian (Sundset et al. 2010) and Svalbard reindeer. Finding the explanation to this phenomenon requires further research into their respective microbiomes and digestive enzymes.
