RESEARCH ARTICLE

The surface energy balance of Austre Lovénbreen, Svalbard, during the ablation period in 2014

Xiaowei Zou^1,2, Minghu Ding¹, Weijun Sun², Diyi Yang¹, Weigang Liu³, Baojuan Huai², Shuang Jin⁴ & Cunde Xiao⁵

¹State Key Laboratory of Severe Weather, Chinese Academy of Meteorological Sciences, Beijing, China

²College of Geography and Environment, Shandong Normal University, Jinan, China

³Key Laboratory of Arid Climatic Change and Reducing Disaster of Gansu Province, Key Open Laboratory of Arid Climate Change and Disaster Reduction of China Meteorological Administration, Institute of Arid Meteorology, China Meteorological Administration, Lanzhou, China

⁴State Key Laboratory of Cryospheric Science, Cold and Arid Regions Environmental and Engineering Research Institute, Chinese Academy of Sciences, Lanzhou, China

⁵State Key Laboratory of Earth Surface Processes and Resource Ecology, Beijing Normal University, Beijing, China

Abstract

The ability to simulate the surface energy balance is key to studying land–atmosphere interactions; however, it remains a weakness in Arctic polar sciences. Based on the analysis of meteorological data from 1 June to 30 September 2014 from an automatic weather station on the glacier Austre Lovénbreen, near Ny–Ålesund, Svalbard, we established a surface energy balance model to simulate surface melt. The results reveal that the net shortwave radiation accounts for 87% (39 W m^–2) of the energy sources, and is controlled by cloud cover and surface albedo. The sensible heat equals 6 W m^–2 and is a continuous energy source at the glacier surface. Net longwave radiation and latent heat account for 31% and 5% of heat sinks, respectively. The simulated summer mass balance equals –793 mm w.e., agreeing well with the observation by an ultrasonic ranger.

Keywords
High Arctic; Svalbard; snow/ice–air interaction; glacier, radiative fluxes; turbulent fluxes

Abbreviations AWS: automatic weather station
DOY: day of year
GPS: global positioning system
K: Kelvins
NSE: Nash–Sutcliffe efficiency
PAT: positive accumulated temperature
RMSE: root mean square error
SEB: surface energy balance
SMB: surface mass balance
W m^–2: watt per square metre





Introduction

Affected by polar amplification, the Arctic has experienced greater warming than the global average in the past few decades and is also the region where the largest warming is expected in the future (Screen & Simmonds 2010; Serreze & Barry 2011; Aas et al. 2015; IPCC 2019). One of the consequences is the intensification of glacial mass loss (Hanna et al. 2008). Glaciers, as we know, play a vital role in the global ecological environment, water resource security and sea–level rise (Nuth et al. 2010; Radić & Hock 2014; Conway & Cullen 2016). The retreat and thinning of this cryospheric element are, therefore, the key scientific issues of climate change.

Mass loss of land–terminating glaciers is mainly driven by an imbalance in snow/ice–air interactions (Arnold et al. 2006), which can be described by the SEB (Kuhn 2011; Karner et al. 2013). The SEB at the glacier–atmosphere interface is controlled by meteorological conditions above the glacier and physical properties (especially the albedo) of the glacier surface (Hock 2005). In the Arctic, glacier melting mainly occurs during summer (Kohler et al. 2002; Oerlemans et al. 2011; van den Broeke et al. 2011; Bernard et al. 2018).

As a physically based approach, the SEB model is helpful to understand the impacts of climate change on glaciers, reveal the hydrothermal conditions of glacier development and deepen the understanding of surface–atmosphere interaction processes in the cryosphere (Hock 2005; Ding et al. 2020). A large number of SEB experiments have been carried out on the Tibetan Plateau (Zhang et al. 2013; Yang et al. 2016; Sun et al. 2018), Antarctic Ice Sheet (van den Broeke et al. 2004a; Ding et al. 2019) and numerous mountain glaciers in other parts of the world (Wagnon et al. 2003; Mölg & Hardy 2004; Oerlemans et al. 2009).

The SEB in the Arctic has also been widely studied (Bougamont et al. 2005; van den Broeke et al. 2011; Ohmura 2012; Franco et al. 2013; Cristóbal et al. 2016). Nakamura and Oort (1988) examined the SEB of the regions poleward of 70°N and 70°S and provided valuable assessments of their differences. Subsequently, Serreze et al. (2007) studied the impact of net surface flux on the Arctic atmospheric energy balance and found that seasonal cycle changes in atmospheric energy storage were controlled by the net surface flux. More recently, a series of observations and modelling studies have been carried out in Greenland and Alaska (van den Broeke et al. 2011; Ohmura 2012; Huai et al. 2020).

During the ablation period, net shortwave radiation (S_net) is the dominant energy source (Nakabayashi et al. 1996; Boike et al. 2003; Westermann et al. 2009); however, it is sensitive to local weather conditions. Raschke & Ohmura (2005) suggested that spatial albedo variations are large because of the different surface nature (snow cover, permafrost and tundra), which can significantly affect S_net. Topography (shading and slope) is also found to play a fundamental role in determining the surface radiation budget (Arnold et al. 2006). Sedlar et al. (2011) showed that the presence of clouds will increase the downward longwave radiation (L_in) and lead to decreasing incoming shortwave radiation (S_in). Similarly, Yamanouchi (2018) showed that L_in can be enhanced by moist air intrusion. During polar night, the average S_net is zero, and the sensible heat (H) is the most important and continuous source of energy at the surface (Karner et al. 2013). Snow–ground heat flux (G) has often been neglected in past modelling (Harstveit 1984). However, Boike et al. (2003) suggested that the long duration of the melting period results in a significant loss of heat to the ground.

Svalbard is one of the most glaciated regions in the Arctic, with about 60% of the total area covered by glaciers (Karner et al. 2013; König et al. 2014). A negative mass–balance trend, in recent decades, has been found and linked to atmospheric warming (Østby et al. 2017; van Pelt et al. 2019). The glaciers in western Svalbard, for example, have been retreating over the last few decades, which has been attributed to the concurrent long–term summer warming (Nordli & Kohler 2004; König et al. 2014; Nordli et al. 2014).

In recent decades, the decrease in albedo at the glacier and sea–ice surface was found to play an important role in the SEB process because it increases the absorbed solar radiation (Serreze & Barry 2011; Yang et al. 2011; Zhang et al. 2019). It is known that light–absorbing impurities at the glacier surface can greatly impact the albedo at visible wavelengths (Zhang et al. 2017; Sun et al. 2018). The latest studies by Dou and co–workers (Dou, Du et al. 2019; Dou, Xiao et al. 2019) found that early rain events can also reduce the surface albedo and bring increased latent heat (LE) to snow/ice. However, there are still a lack of systematic observations and research studies in Svalbard, limiting our understanding of the mechanisms of snow/ice–air interactions and our ability to couple processes between the atmosphere and the land surface.

The SEB study reported here examined Austre Lovénbreen, a typical polythermal valley glacier in the Arctic, and aimed at improving our understanding of snow/ice–air interaction and glacier mass balance in the context of climate change. Meteorological observations were carried out as part of the programme of a Chinese National Arctic Research Expedition during the ablation period in 2014. Based on the data, the components of SEB and its characteristics were assessed.

Study region

Austre Lovénbreen is a glacier in the vicinity of Ny–-Ålesund in north–western Svalbard (Fig. 1, 78°52’N, 12°10’E). This area is one of the most rapidly warming regions in the Arctic, warming up by 0.76 ± 0.29 °C per decade from 1975 to 2014 (Ding et al. 2018), and is strongly influenced by the North Atlantic Current, which leads to a typical maritime climate. The annual precipitation is approximately 400 mm in Ny–Ålesund, with a steadily rising trend over the last two decades (Bernard et al. 2018). At this high latitude, the polar day lasts from 19 April to 24 August, and the polar night period is from 23 October to 19 February (Deng et al. 2006). The total glacier extent of Svalbard sums up to approximately 33 750 km² (Köhler et al. 2015), with a large number of small valley glaciers (<1 km²) as well as large areas of contiguous ice fields and ice caps (König et al. 2014). Most glaciers are polythermal (Wang et al. 2019) and are very sensitive to climate change. The retreat of Svalbard glaciers over the past 40 years has contributed approximately 0.026 mm a^–1 to sea–level rise (Nuth et al. 2010).

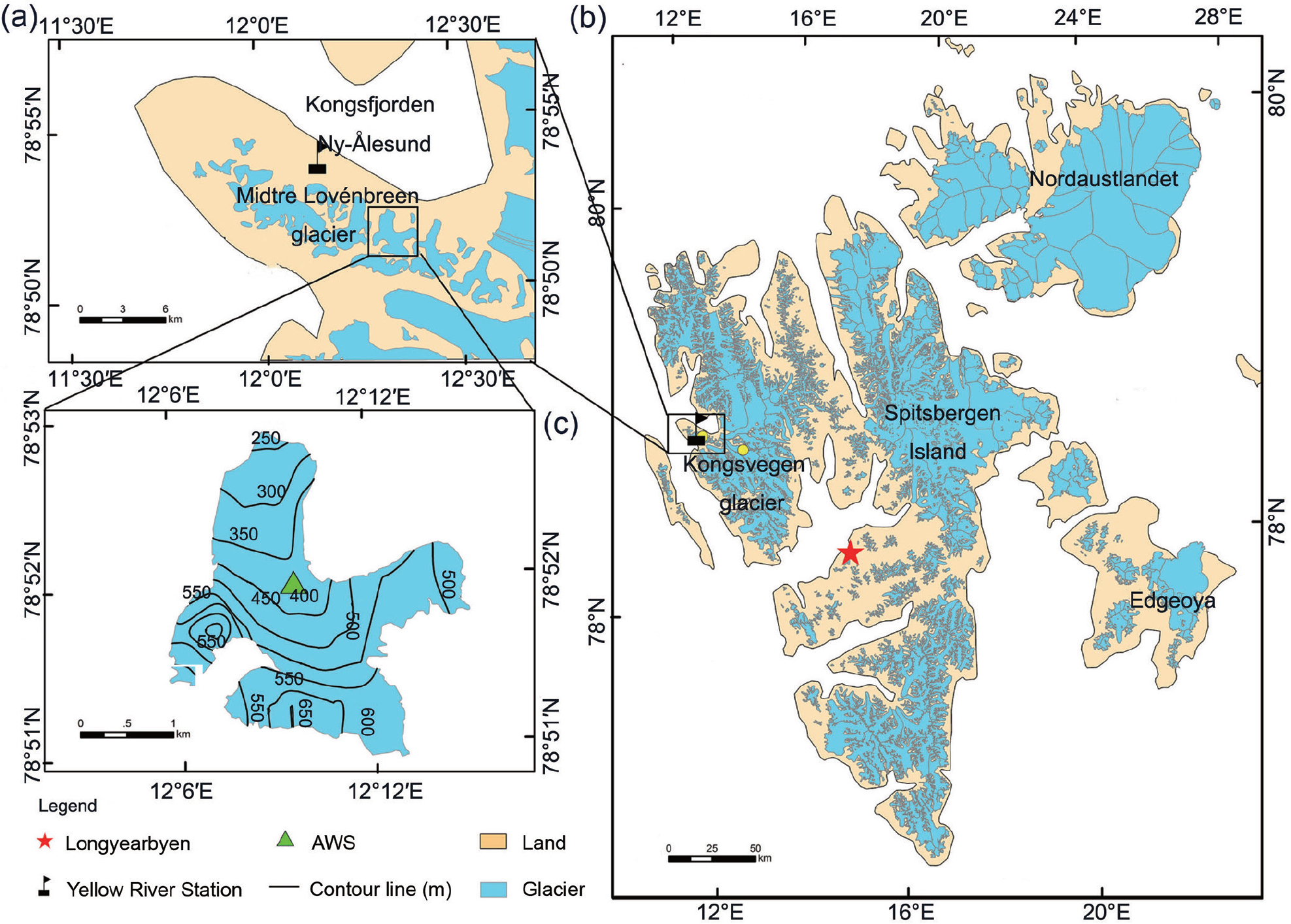

Fig. 1 (a) Location map of Austre Lovénbreen in (b) the archipelago of Svalbard. (c) The extent and contour line distribution of Austre Lovénbreen. The glacier information in the image is from the Randolph Glacier Inventory, downloaded from the World Glacier Monitoring Service.

Austre Lovénbreen is relatively small (4.48 km²), with a maximum elevation of no more than 550 m a.s.l. (Ai et al. 2019). It flows generally northward from the interior of the southern side of the fjord Kongsfjorden onto the coastal plain (König et al. 2014). The average thickness of the Austre Lovénbreen is 76 m, with a maximum thickness of 164 m (Saintenoy et al. 2011). GPS tracking measurements reveal that the glacier’s terminus has been in a state of retreat since 2005 and there are also indications that the glacier has been in retreat since 1948 (Marlin et al. 2017). The retreat rate during 1995–2009 was 5.36 m a^–1 (Midgley et al. 2013), and the average flow velocity during 2005–2018 was 4 m a^–1 (Ai et al. 2019). The rate of surface elevation change ranged from +9.6 to about –106.1 cm a^–1 in the period 2005–2010 (Ai et al. 2012).

Data and processing

Data sources

In order to monitor the meteorology of Austre Lovénbreen, an AWS was placed on a relatively flat surface at 337 m a.s.l. (Fig. 1). Measurements were taken every 10 s, and half–hourly mean values were stored with a CR1000 data logger (Campbell Scientific). Meteorological sensors (Table 1) were installed in strict accordance with the surveying specifications for surface weather. We chose 1 June to 30 September (DOY 152–273) 2014 as the study period. Melt energy and daily melt data from Austre Lovénbreen indicate that the ablation period in 2014 was approximately from 4 June to 16 September.



Table 1 AWS sensor specifications.

Elements	Sensor type	Range	Accuracy
Air temperature	HMP155A	−80−60 °C	±(0.226–0.0028*Ta) °C at −80 to 20 °C
Relative humidity	HMP155A	0–100%	±(1.0+0.008*RHa)% at −20 to 40 °C
Air pressure	CS106	500–1100 hPa	0.3 hPa
Wind speed	Young 05103	0–100 m s–1	±0.3 m s–1
Wind direction	Young 05103	0–360°	±3 °
SWb radiation	CNR4	300–2800 nm	4–10 µV/W m2
LWc radiation	CNR4	300–2800 nm	4–10 µV/W m2
Snow depth	SR50A	0.5–10 m	±1 cm
aRelative humidity. bShortwave. cLongwave.

Data processing

For all meteorological data in this study, monthly average values were calculated from daily average values, which were retrieved using the half–hourly mean values. Missing values were handled depending on their duration: if more than 50% (30 minutes) of data were missing within 1 hour, 21% (ca. 5 hours) of hourly data were missing during one day, or 12 % (ca. 4 days) of daily data were missing within one month, the hourly–daily–monthly data were considered as missing (same method as that of Maturilli et al. 2012). During the observation period, there were gaps in the wind speed data (11/353 day, 3%), for example, 30 May (DOY 121), 9 June (DOY 160), 13–14 -September (DOY 256–257) and 7–9 October (DOY 280–281), and all air–pressure data are missing because of sensor damage. The missing values were supplemented by linear interpolation (air temperature and wind speed) and barometric height formula (air pressure), respectively. The outliers were judged by measurement ranges specified by the manufacturers of the sensors (Table 1). They were eliminated if values were outside the measurement range (Sun et al. 2018). Our temperature radiation shields were ventilated, so that the error resulting from radiative heating of temperature probes during periods with low wind speed is very small. As the barometer was broken during observation, the air pressure of Austre Lovénbreen was obtained using the barometric height formula (see below), on the basis of observations from the Arctic Yellow River Station, in Ny–Ålesund (Fig. 1).

Van den Broeke et al. (2004b) reported that snow cover and riming on top of radiation sensors and a low sun angle affect the measurement of solar radiation. When this happens, it generally leads to under– or overestimation of S_in. When snow occurs, S_in is calculated from the measured reflected shortwave radiation (S_ref) divided by the corrected surface albedo, which is 0.9 for fresh snow (Oerlemans & Klok 2002). The albedo is calculated directly from the S_ref divided by the S_in. Similar to Oerlemans and Klok (2002), we corrected the albedo to 0.9 when it exceeded 0.9 during the day. When the sun angle was less than 0°, S_ref and S_in were corrected to 0. The installation height of the sensor may have caused additional radiation to reach the sensor, resulting in an overestimation of upward longwave radiation (L_out), which may exceed 315 W m^–2; according to the Stefan–Boltzmann law, L_out can never exceed 315 W m^–2 during the glacier melt period (Oerlemans et al. 2009). In this study, such high values were excluded if they occurred.

Methods

Estimating air pressure and cloud cover

In this study, the air–pressure data for Austre Lovénbreen were calculated by the barometric height formula and pressure data from the Arctic Yellow River Station (Wei et al. 2016). Taking the Arctic Yellow River Station as the base level, the atmosphere is approximately regarded as isothermal:

where H_y and H_a are the elevations of the Arctic Yellow River Station and Austre Lovénbreen, respectively. R_d is the specific gas constant of dry air (287.05 J kg ^–1 K^–1). T_a is the air temperature (K). P_y and P_a are the air pressures at the Arctic Yellow River Station and Austre Lovénbreen, respectively.

There are many parameterisation schemes to calculate clouds, using shortwave radiation (Favier et al. 2004), longwave radiation (van den Broeke et al. 2006) or relative humidity (Liston & Elder 2006). Van den Broeke et al. (2006) suggested that longwave radiation was suitable for the calculation of clouds in polar regions and more transferable (Chen et al. 2018). The method (Chen et al. 2018) can be expressed as follows:

where n_c is the cloud fraction, e_a is water vapour pressure (hPa), ε_eff is the actual effective emissivity, and ε_ad and ε_ov are the emissivity for a dry atmosphere (0.22) (Dürr & Philipona 2004) and overcast condition, respectively.

Estimating the SEB

According to Oke (1987), the glacier volume, rather than a thin layer at the glacier surface, was defined as the object of this study. This volume extends from the glacier surface to a depth, where the vertical heat flux is nonsignificant. The full SEB expression of Oke (1987), which ignored horizontal heat fluxes, is expressed as follows (all fluxes are in W m⁻² and towards the surface are defined positive):

where Q_m is the melt energy; when the surface temperature is less than 0 °C, Q_m = 0, whereas when it reaches 0 °C, that is, the melting point (van den Broeke et al. 2004a), melting happens and the melt energy Q_m is derived from Eqn. 3. R_n is the net radiation and can be expressed as R_n = S_ref+S_in+L_out+L_in; H and LE are turbulent fluxes of sensible and latent heat, respectively. G = K_tət/əz is the surface value of the subsurface (conductive) heat flux, which can be estimated using the effective thermal conductivity K_t: 0.4 W m^–1 K^–1 for old snow and 2.2 W m^–1 K^–1 for pure ice (Oke 1987). Sun et al. (2016) observed that there was nearly no temperature variability at the depth of –20 m, which meets the requirement of the non–significant vertical heat transfer as suggested by Oke (1987). We therefore selected the –20 m temperature to derive G. However, the resulting G values calculated according this approach did not properly capture the seasonal pattern of subsurface heat exchange and may have underestimated heat transport during the melt season between the surface and the subsurface. In addition, the radiation penetration was ignored as it has little influence on Q_m in the Arctic (van den Broeke, Smeets, Ettema, van der Veen et al. 2008). Q_p is the heat supplied by rain and was also neglected, as it is non–significant and negligible compared with the other components in the equation (Karner et al. 2013). A study conducted on Kongsvegen (Karner et al. 2013), which is in the vicinity of Austre Lovénbreen, illustrated that Q_p contributed less than 1%, on average, to the Q_m. The SEB was calculated at half–hour intervals.

Turbulent fluxes were calculated using the bulk–aerodynamic method (van den Broeke et al. 2005). H and LE are expressed as follows:

where c_p (1005.7 J kg ^–1 K^–1) is the specific heat capacity of air and ρ_o (1.29 kg m^–3) is the air density at standard atmospheric pressure P_o (1013.25 hPa). u_*, θ_* and q_* are the turbulent scales of vertical velocity, potential temperature and specific humidity, respectively. T_a and u are the air temperature (K) and wind speed (m s ^–1) at height z, respectively; T_s and q_s are the glacier surface temperature (K) and the surface saturated specific humidity (g kg ^–1), respectively; T_s is calculated using the Stephan–Boltzmann formula combined with L_out, and q_s = 0.622e_s/P, where e_s and P are the glacier surface saturation vapour pressure and the air pressure, respectively. L_v is the latent heat of evaporation (2.501 MJ kg ^–1 k^–1) or sublimation (2.834 MJ kg ^–1 k ^–1). C_H and C_E are the heat and water vapour transport coefficients, respectively.

There are many parameterisation schemes to calculate C_H and C_E, including those of Businger et al. (1971), Louis et al. (1982) and Beljaars & Holtslag (1991). Ma et al. (2011) compared the applicability of these schemes with the Antarctic ice–air interaction process, finding that the scheme of Louis et al. (1982) performed best in polar areas. This scheme was also historically implemented to prevent surface–atmosphere decoupling over land in three–dimensional simulations. Therefore, we applied the Louis function, according to which the Richardson number R_ib is used as the stability factor to parameterise C_H and C_E:

For unstable conditions:

For stable conditions:

where z and z_om are the height of observation and the surface roughness length, respectively. When the glacier surface is covered with snow, a constant z_om (0.46 mm) can be used, which is determined from the calculation of the wind velocity profile law under ‘near–neutral’ conditions (van den Broeke et al. 2005). The z_om values of Austre Lovénbreen were consistent with those for the nearby Midtre Lovénbreen glacier: ice: 0.66 mm and snow: 0.22 mm (Arnold & Rees 2003; Arnold et al. 2006). a ² = k ²/[ln(z/z_om)]², where b = 5, c_h = 5 and d = 5. P_r is the ratio of momentum and drag coefficient under neutral conditions, which are 1 and 0.5 for stable and unstable conditions, respectively. When R_ib is positive, the surface layer is stable, and when R_ib is negative, the surface layer is unstable. In this study, we choose the Louis function because it also allowed us to obtain a simple analytical solution. However, the longtail functions produced too much mixing compared with local observations (Chechin et al. 2019).

Glacier SMB is the sum of accumulation and ablation. On Austre Lovénbreen, SMB was obtained by monitoring the change of surface elevation with a sonic ranger and using standard density values for snow and ice: a density of 890 kg m⁻³ for ice and the density of 200 kg m^–3 for fresh snow (snowfall), and 380 kg m^–3 for old snow. The main formula of the simulated SMB (in m w.e.) is given by the following equation (Klok & Oerlemans 2002; Jiang et al. 2010):

where M is the melt rate (m w.e. s^–1) and M_E is the sublimation–deposition–condensation rate (m w.e. s^–1). At half–hourly intervals, the melt rate follows from M = Q_m/(L_fr_w), where L_f = 0.344 MJ kg^–1 K^–1 is the latent heat of fusion and r_w = 1000 kg m^–3 is the water density. The surface sublimation–deposition–condensation rate is derived from the LE using M_E = LE/(L_vr_w), where L_v is the latent heat of condensation (2.501 MJ kg ^–1 K^–1) with a surface temperature of 0 °C) or sublimation/deposition (2.834 MJ kg ^–1 K^–1) with a surface temperature below 0 °C). The sum of sublimation/deposition/condensation and melting is the ablation of the glacier. P_snow is the snowfall (m). For rainfall, we assumed that it directly produces runoff, and the refreezing of melt and rain water in the snowpack was not taken into account. Snowfall represented the accumulation part of glacier SMB. Following van Pelt and Kohler (2015), the threshold temperature for distinguishing rainfall and snowfall in Svalbard was set to 1.5 °C. We found that the total precipitation was dominated by snowfall (65% of total).

In order to evaluate the reliability of the SEB model, we use measured and simulated cumulative mass-balance values in combination with the RMSE and the NSE to evaluate the model. The RMSE is calculated as follows:

where n is the observation time, and y_t and y_t ^* are the measured and simulated accumulated mass-balance values, respectively.

The NSE is generally used in the verification or evaluation of hydrological models (Nash & Sutcliffe 1970):

where t is the observation time, n is the number of samples, and y_t and y_t^* are the measured and simulated accumulated mass–balance values, respectively. y^* is the mean of y_t^*.

Results and discussion

Meteorological conditions

General weather conditions in the Austre Lovénbreen environment can be described by meteorological data from the AWS. Figure 2 shows the variability of meteorological variables for the daily averages on Austre Lovénbreen from 30 April 2014 to 17 April 2015. The average air temperature of Austre Lovénbreen (T_a) was –5.5 °C. The mean daily T_a ranged from –25.1 °C (11 February, DOY 42) to 7.3 °C (24 July, DOY 205), and the variation was obvious, especially in the non–ablation period. The area is often affected by moist air intrusions (Yamanouchi 2018). These warm states coincide with periods (grey shading in Fig. 2) of high T_a, high relative humidity and specific humidity (q), for example, 24–27 October (DOY 297–300), 4–10 January (DOY 4–10), 16–18 February (DOY 47–49) and 4–9 March (DOY 63 to 68). The daily average T_a (0.9 °C) remained above the melting point of ice (0 °C) during the ablation period. It had a daily average of 2.3 g kg^–1 and a peak of 3.5 g kg^–1. During the ablation period, accompanied by the strong melting point, T_a and q showed high values.

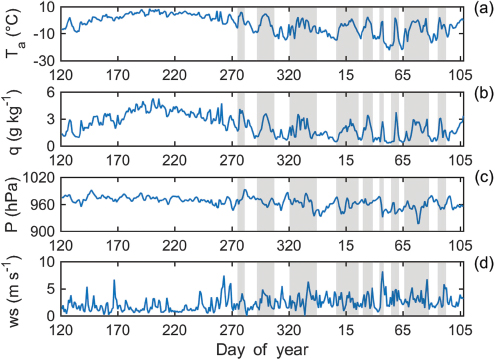

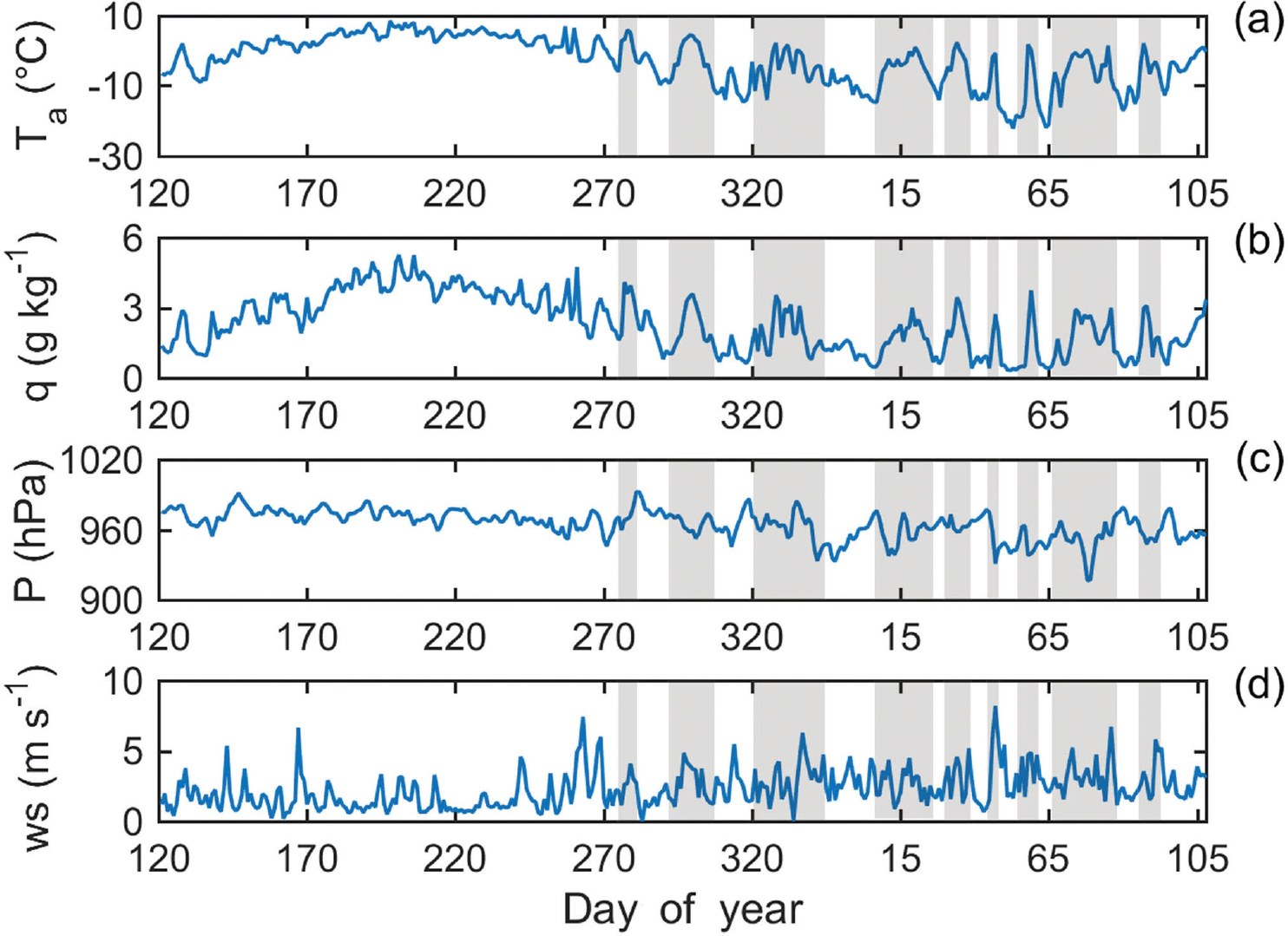

Fig. 2 Daily means of meteorological variables observed at Austre Lovénbreen, Ny–Ålesund, during 30 April 2014–17 April 2015: (a) air temperature (T_a), (b) specific humidity (q), (c) air pressure (P) and (d) wind speed (ws). Grey shading represents the periods of moist air intrusions.

The average air pressure (P) was 964 hPa. The daily mean wind speeds typically ranged from 0 to 8.2 m s^–1 but seldom exceeded 8 m s^–1, with a median of 2 m s^–1 during the ablation period (Fig. 2d), which is much lower than wind speeds observed on the adjacent Kongsvegen glacier (5.7 m s^–1; Pramanik et al. 2019). Compared with the whole ablation period (1.7 m s^–1), the wind speeds in the beginning of the ablation period (4–14 June, DOY 155–165) were relatively low (1.2 m s^–1). During the non-ablation period, the daily wind speeds were high and variable, with the values frequently exceeding 3 m s^–1. Figure 3 presents the typical frequency distribution of wind directions observed at the glacier. The prevalent wind direction was south-east (south–south-east + south-east + east–south-east) and occurred 46% of the time. The wind direction is primarily associated with katabatic forcing and topography. Interestingly, the prevalent wind direction during the ablation period differed in no obvious way from the annual average.

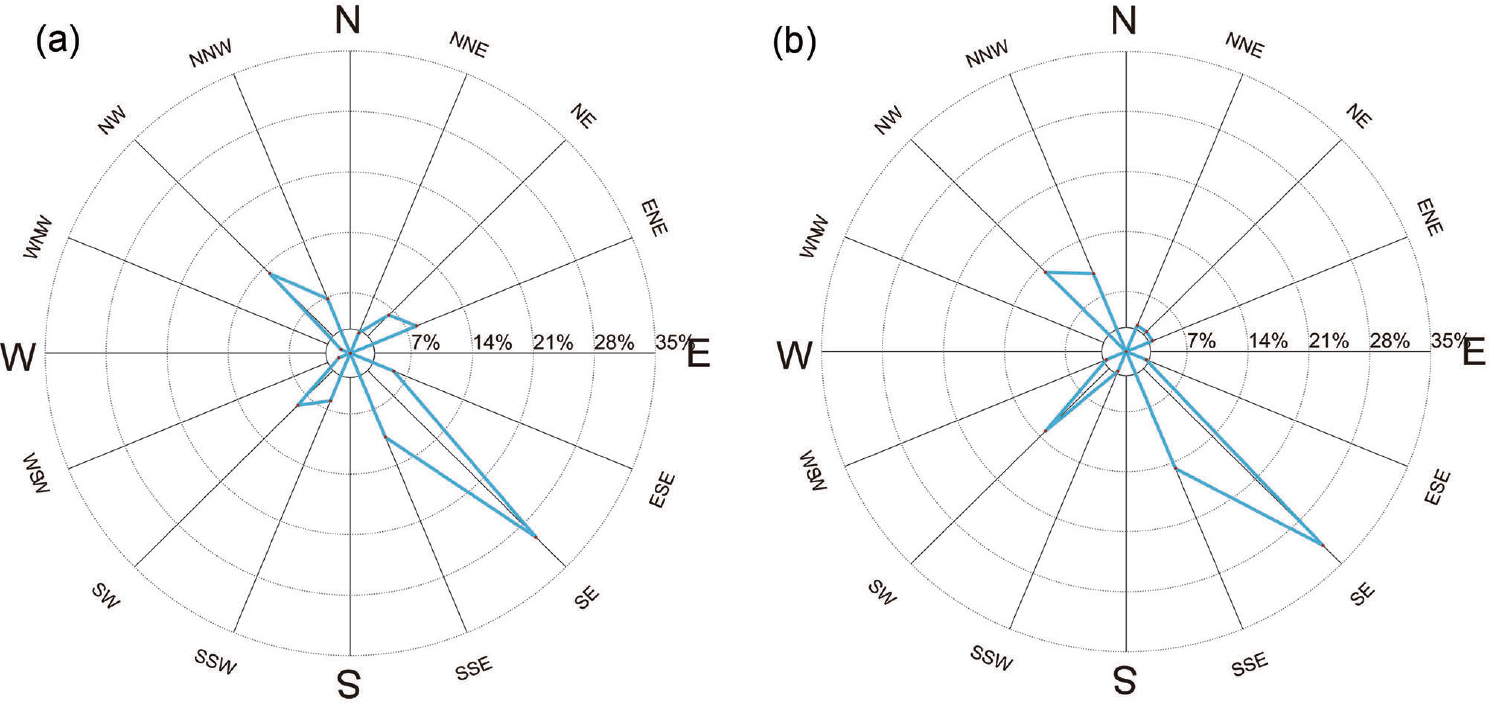

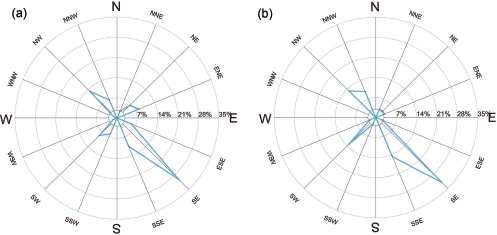

Fig. 3 Wind rose on Austre Lovénbreen during (a) 30 April 2014–17 April 2015 and (b) the ablation period of 1 June–30 September 2014. Katabatic wind from the glacier is the prevalent wind and wind from the Spitsbergen ice cap has less influence during summer.

Radiative fluxes

The daily mean S_in, S_ref, L_in, L_out, R_n, cloud fraction and albedo from 1 June to 30 September of Austre Lovénbreen are shown in Fig. 4. Austre Lovénbreen experiences polar night from October until February and abundant solar insolation during the polar day period, accounting for 82% of the insolation for the whole year (Deng et al. 2006). The average cloud cover of Austre Lovénbreen was 0.73 during the ablation period, which had a significant impact on radiation (Beesley 2000). The daily means of S_in showed high fluctuations due to variable cloudiness, sun angle and the length of day, varying from 14 W m^–2 to 396 W m^–2. Compared with the daily means of S_in (239 W m^–2) and S_ref (193 W m^–2) during the melting period in 2011 (from June to August) of Kongsvegen, measured at an altitude of 668 m a.s.l. (Sauter & Obleitner 2015), the S_in (159 W m^–2) and S_ref (118 W m^–2) of Austre Lovénbreen were small. This difference of S_in can partly be attributed to the cloudiness, which was, on average, 0.73 for Austre Lovénbreen and 0.60 for Kongsvegen (Kupfer et al. 2006; Sauter & Obleitner 2015). Another vital factor is the altitude: 337 m a.s.l. for Austre Lovénbreen and 668 m a.s.l. for Kongsvegen (Sauter & Obleitner 2015). The cloud cover affects S_in by reducing atmospheric transmittance. When the atmospheric transmittance was low under overcast conditions, S_in was small (e.g., 12 July and 2 August, DOY 193 and 214), while S_in was high under clear-sky conditions. L_out is controlled by T_s, and L_in is affected by cloud cover, air temperature and relative humidity (Conway & Cullen 2016). L_in was significantly positively correlated with cloud cover (correlation coefficient [R] = 0.84, number of samples [n] = 122, significance level [p] = 0.01) and air temperature (R = 0.47, n = 122, p = 0.01). The daily mean values of L_in and L_out were 294 and 312 W m^–2, respectively. L_out was less variable than L_in on account of relatively minor T_s variations. Rapid weather pattern changes often led to strong short-term variations of relative humidity, T_a and cloud cover, which, in turn, led to highly variable L_in, especially before and after 6 July (DOY 187), 10 July (DOY 191), 18 July (DOY 199) and 23 July (DOY 204), and L_in frequently exceeded L_out. Therefore, the daily mean values of net longwave radiation (L_net) were positive during these events and made positive contributions to the SEB.

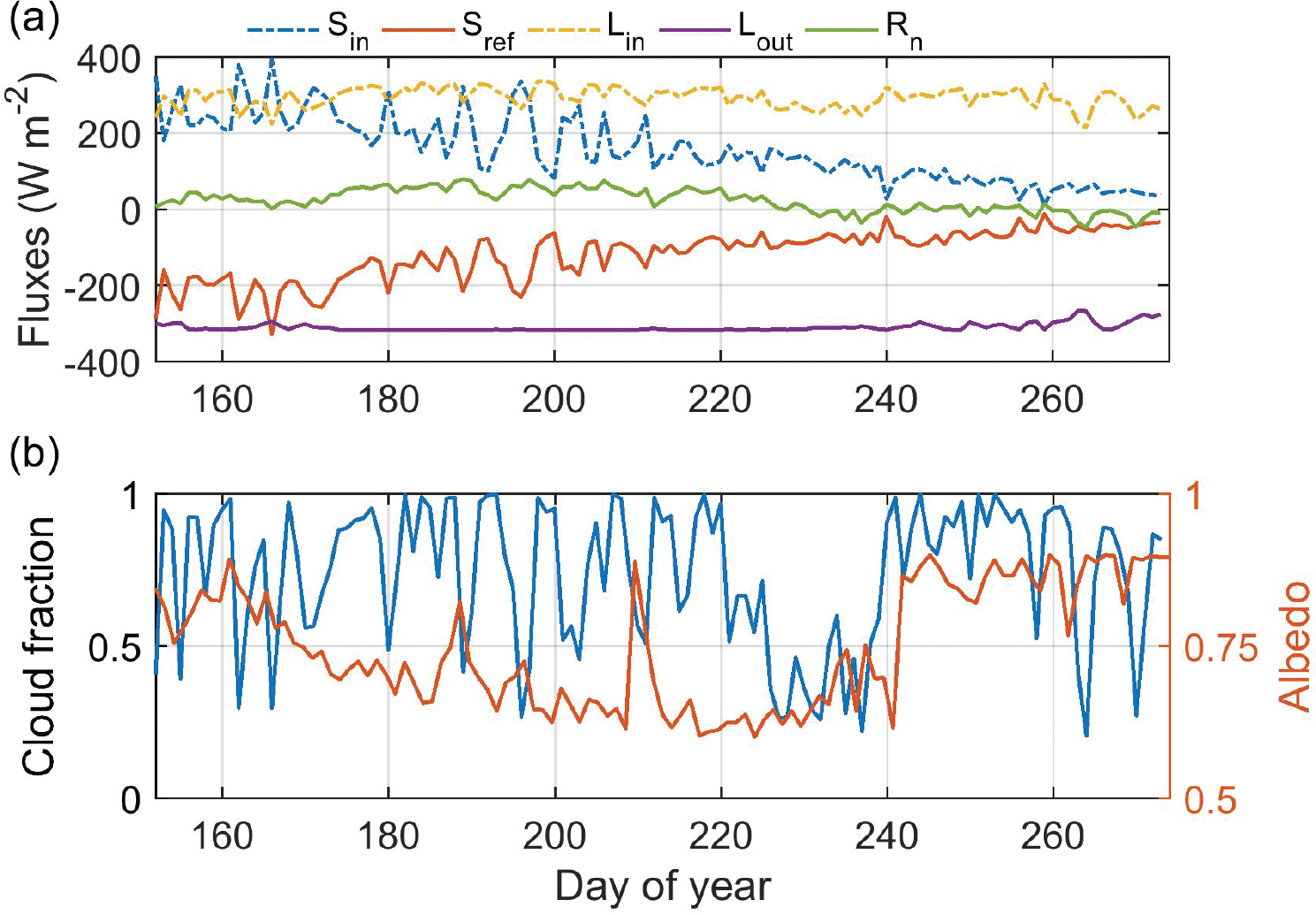

Fig. 4 Daily mean of radiation, cloud and albedo for Austre Lovénbreen, Ny–Ålesund, during 1 June–30 September 2014: (a) incoming (S_in)/reflected (S_ref) shortwave radiation, downward (L_in)/upward (L_out) longwave radiation and net (R_n) radiation; (b) cloud fraction and albedo.

The average R_n was positive (22 W m^–2) because of strong S_net input. Figure 4a shows significant variability in R_n from June to September, ranging from 34 W m^–2 to –4 W m^–2. The albedo of the observation sites on Austre Lovénbreen shows marked variations and the daily mean value was 0.76, which is of the same order of magnitude as the average albedo (from June to August) of a weather station site on Kongsvegen in 2011: 0.80 (Sauter & Obleitner 2015). Figure 4b shows that, on average, the lowest monthly values of albedo (0.67) were reported in August, one month after the maximum intensity of R_n. Frequent snowfall, especially in September, contributed to maintaining high albedo during the ablation period.

Turbulent fluxes

Turbulent energy mainly comes from mechanical and buoyancy work (Sheng 2013). H and LE are dependent on a series of factors, including air–surface temperature, specific humidity and wind speed. The daily mean values of H and LE are illustrated in Fig. 5. The average daily value of H was 6 W m^–2 during the ablation period, with values ranging from –14 to 56 W m^–2. H was mostly positive on a daily scale, indicating that the surface temperature was less than T_a, which led to energy transport from the atmosphere to the glacier surface. H is controlled by wind speed and the temperature difference between the atmosphere and surface and, as such, is strongly weather dependent. For example, on 18 July (DOY 199), the average temperature difference between the air and surface was ca. 6 °C, and the average wind speed was 3.1 m s ^–1; meanwhile, H was 34 W m^–2. Large H values (more than 20 W m^–2) were found on 12, 13 and 16 September (DOY 255, 256 and 259), and rapid day-to-day changes occurred. The main reasons include the following: through the analysis of T_a, q and p, the glacier may be influenced by the frequent passage of relatively warm northward-moving low-pressure systems from the ocean, resulting in a large temperature gradient between the surface and the air, coupled with the strong katabatic wind along the glacier; thus, the glacier surface received extensive heat from the atmosphere. The daily LE is mostly negative, with an average of –2 W ^–2. This result indicates that mass was lost through sublimation and evaporation. Surface sublimation rather than evaporation dominated the moisture exchanges (56% vs. 44%). LE is also susceptible to variable weather; for instance, on 20 July and 16 September (DOY 201 and 259), the glacier may also have been affected by warm advection from the ocean. The increased T_a and humidity, as well as the strong wind, resulted in q exceeding q_s (humidity inversion). Generally, LE was relatively weak in turbulent fluxes (H + LE; Fig. 5).

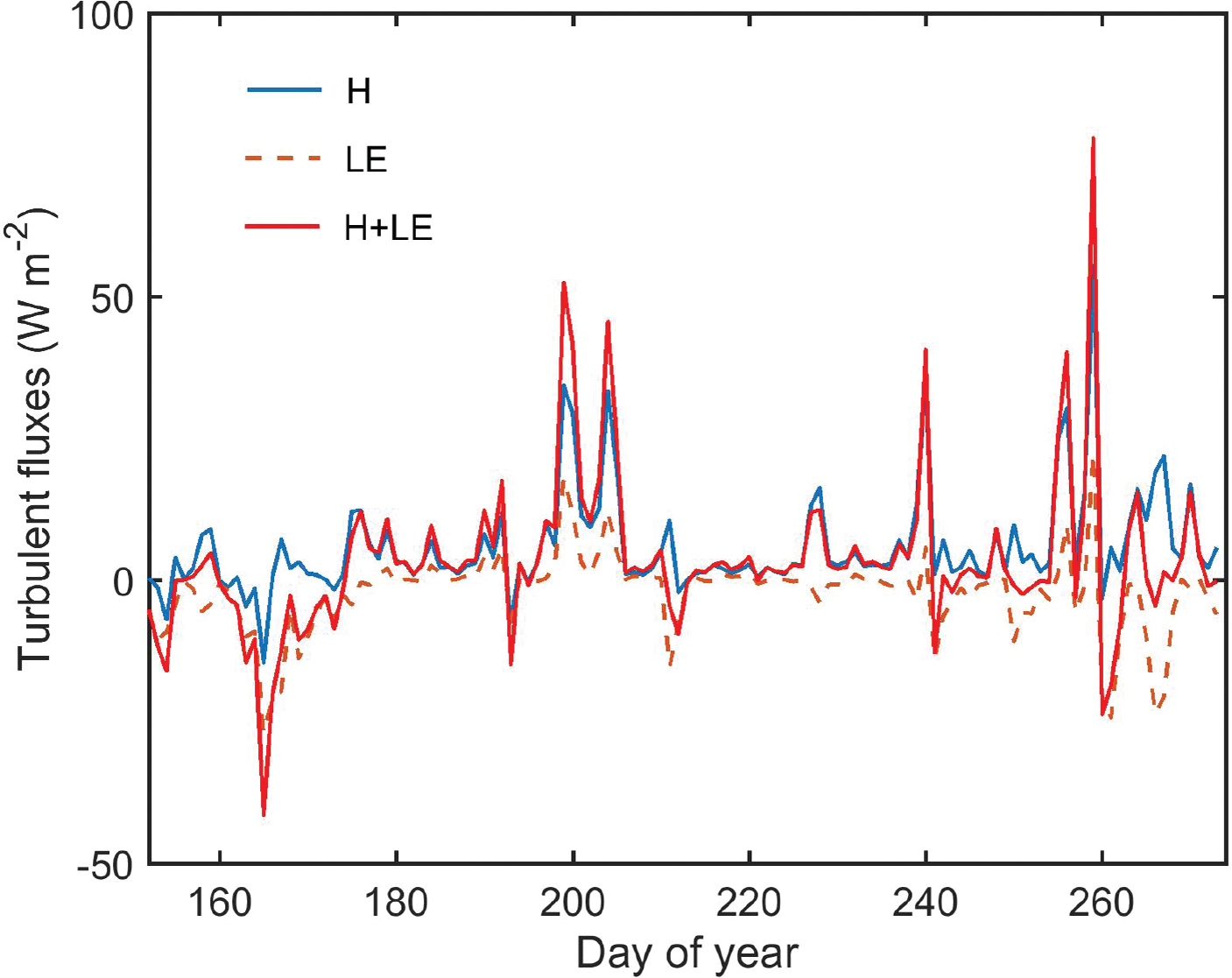

Fig. 5 Daily means of turbulent fluxes for Austre Lovénbreen, Ny–Ålesund, during 1 June–30 September 2014.

Surface energy budget

The surface energy budget over the period from 1 June to 30 September 2014 is provided in Fig. 6. The total of these energy fluxes determines whether melting occurs. The monthly average S_net was 39 W m^–2, higher than L_net (–14 W m^–2). Stimulated by a low albedo, the monthly S_net reached 61 W m^–2 in July. Amongst the inputs of surface energy, S_net was the most important contributor, accounting for 87% of the energy input totals. However, under the influence of low S_in and high albedo, the monthly S_net was only 4 W m^–2 in September. The monthly average H was 6 W m^–2 and accounted for 13% of the total energy input. The magnitude and proportion of H were highest in September. H is the only source of energy during the polar night (Karner et al. 2013; Ding et al. 2019).

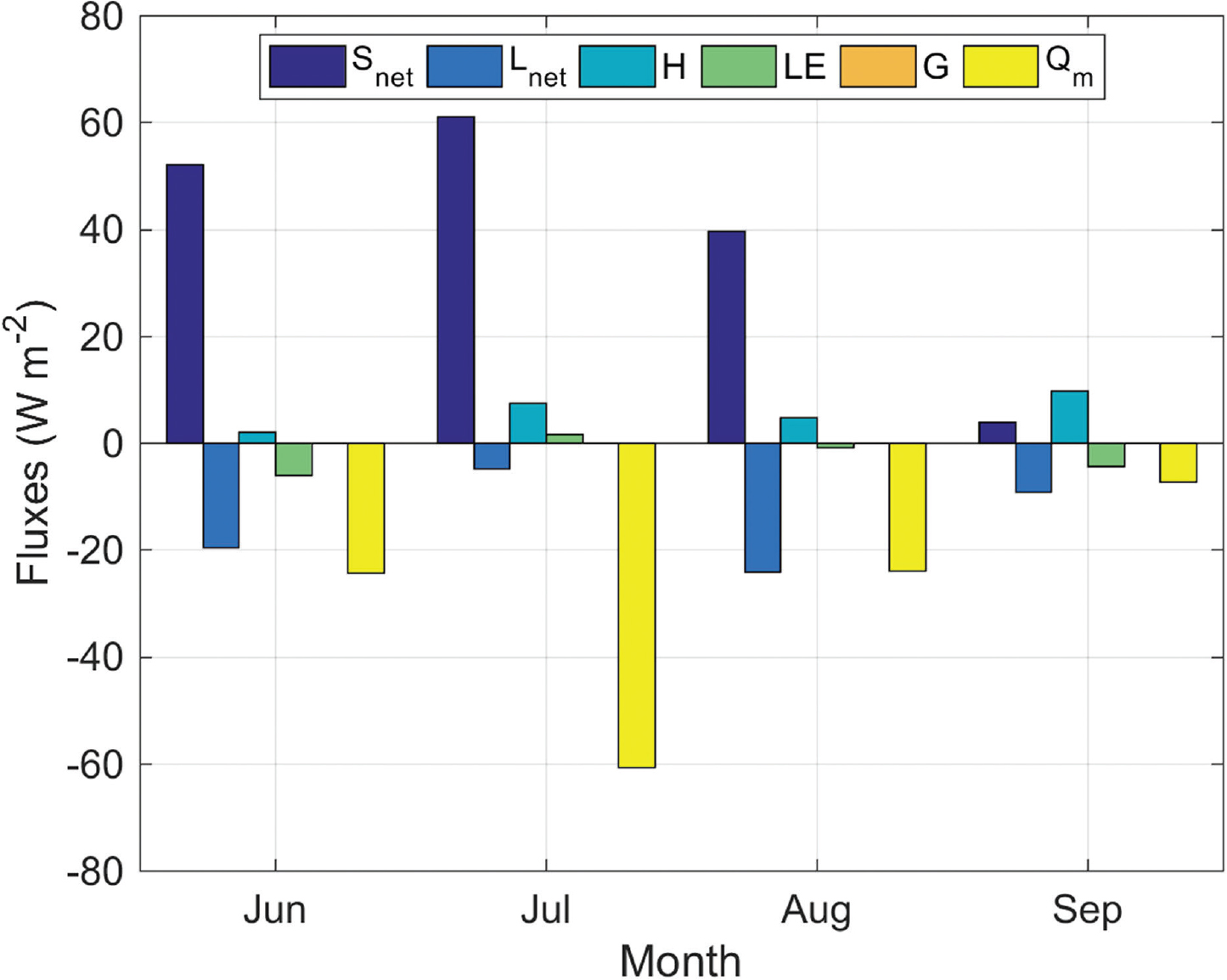

Fig. 6 Surface energy (S_net: net shortwave radiation, L_net: net longwave radiation, H: sensible heat, LE: latent heat, Q_m: melt energy) budget of Austre Lovénbreen during 1 June–30 September 2014.

During the ablation period, a positive radiation budget and turbulent sensible heat provide energy for glacier melting. The monthly mean Q_m was –29 W m^–2, accounting for 63% of the total energy output. Compared with the other months, Q_min September was smallest at –7 W m^–2. The reason for this difference was the high albedo and low PAT, which refers to the temporal integral of near-surface temperatures (T) exceeding the melting point. The calculated Q_m and the SR 50A recording indicated that ablation mainly occurred in July. Generally, glacier melt was dominated by S_net (R = 0.59, n = 122, p = 0.01). There was a significant positive correlation between Q_m and PAT (R = 0.86, n = 122, p = 0.01), as shown in Fig. 7. Variations in albedo also influenced Q_m: high albedo coincided with low Q_m because the high albedo caused by snowfall significantly decreased R_n.

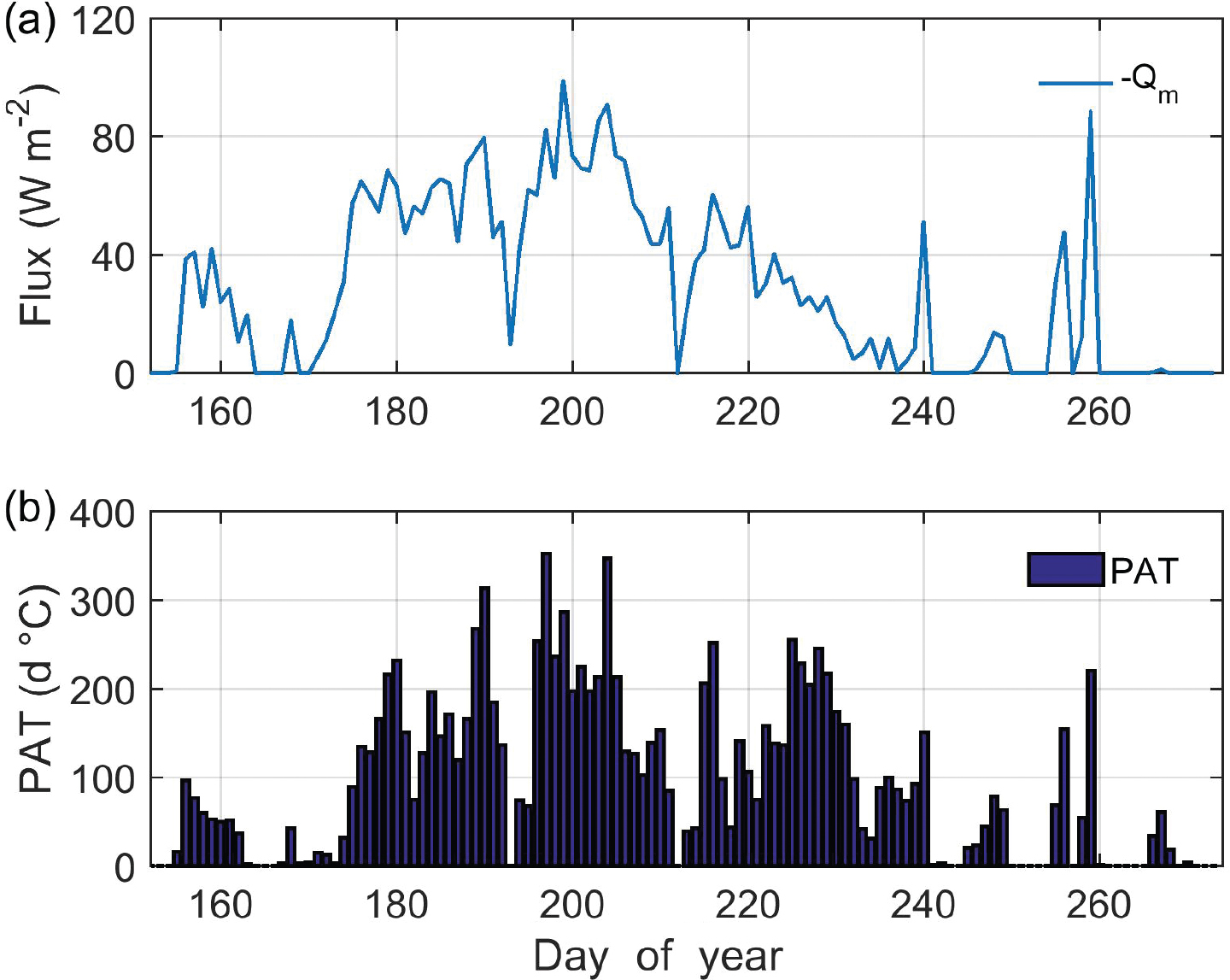

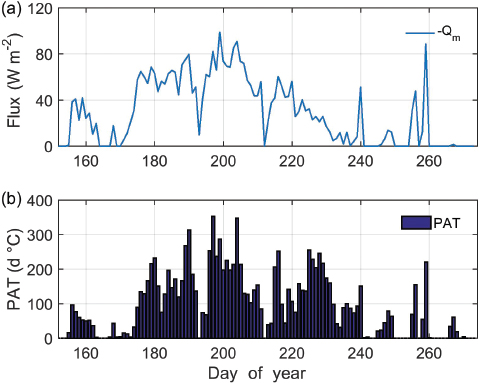

Fig. 7 Daily means of (a) melting energy (Q_m) and (b) PAT for Austre Lovénbreen, Ny–Ålesund, during 1 June–30 September 2014.

In summary, S_net was the major energy input (39 W m^–2), followed by H (6 W m^–2). Q_m was a major energy output (–29 W m^–2), followed by L_net (–14 W m^–2), LE (–2 W m^–2) and G (average absolute value was <1 W m^–2).

Model evaluation

A sonic ranger can generate information about ice melt and snow accumulation by measuring the distance between the sensor and the surface, and the values can verify the simulation of the SMB model.

The daily change in surface snow height, measured and simulated mass balance, daily precipitation, snowfall, melt (calculated) and mass balance are shown in Fig. 8. As shown in Fig. 8c, snowfall is distributed throughout the ablation period, but mainly concentrated in September in response to lower air temperature. There was a significant positive correlation between daily mass balance and albedo (R = 0.7, n = 122, p = 0.01), which implies that daily mass balance was strongly influenced by albedo. A low albedo means more S_net absorption by the glacier, resulting in more energy available for melting. As shown in Fig. 8, July experienced most significant mass loss, following high air temperature, high incoming solar radiation and low albedo.

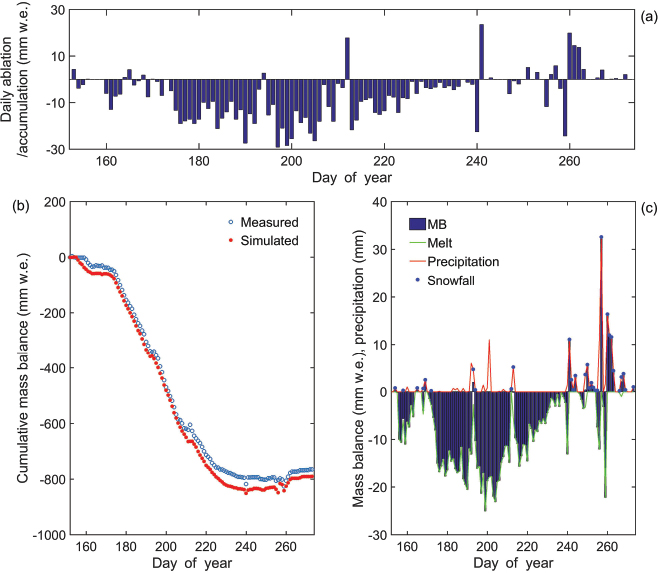

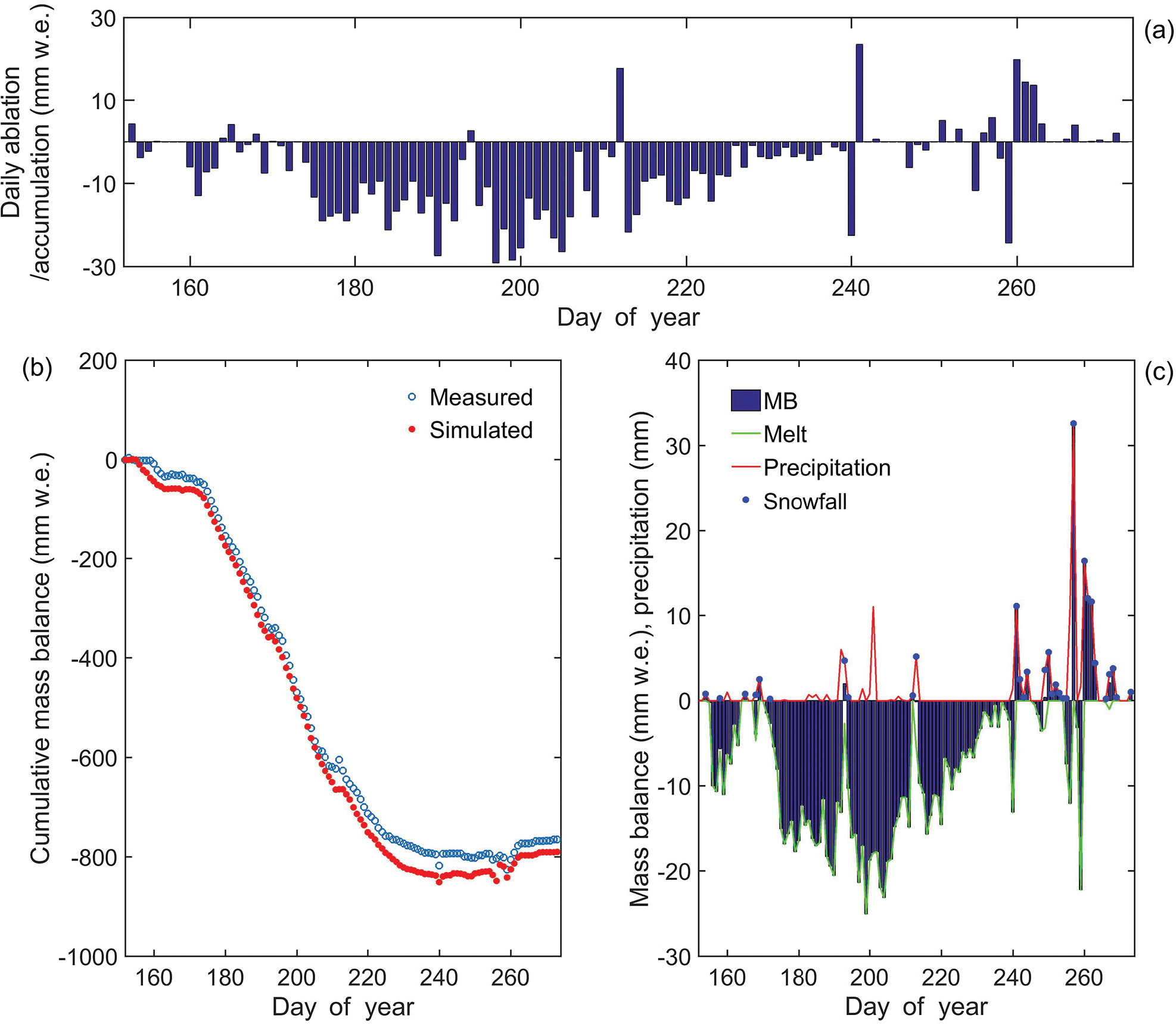

Fig. 8 (a) Daily ablation or accumulation based on the change in surface snow height from sonic ranger. (b) Comparison of measured and simulated SMB. (c) Daily precipitation, snowfall, melt (calculated) and mass balance, respectively.

In order to assess the credibility of the SEB model, the simulated and measured daily cumulative mass balance (Fig. 8b) were compared. The minimum value of the simulated mass balance is –850.6 mm w.e. on 28 August (DOY 240), which is 33.3 mm w.e. lower than the measured value, and the maximum absolute difference between the simulated and measured values equals 59.2 mm w.e., accounting for only 7% of the simulated value. Because of increasing snowfall and decreasing glacier melt after 16 September (DOY 259), the mass loss decreased, and the simulated value was –789.5 mm w.e. on 30 September (DOY 273), which is 24.5 mm w.e. lower than the measured value. In addition, with an RMSE of 31 mm w.e. and an NSE of 0.99, the simulation agreed well with the measurements. Therefore, simulation of the SEB model was demonstrated to be accurate and robust.

Conclusions

In order to better understand the physical process of snow/ice–air interaction in the Arctic, meteorological observations were analysed during the ablation period 2014 on the glacier Austre Lovénbreen, Svalbard. The surface energy budget was examined on the basis of the observational data.

The length of the ablation period was approximately 105 days (4 June to 16 September). Due to a decline in albedo, high insolation and high air temperature, July experienced strongest melting. During the ablation period, S_net was the main energy source, with a mean value of 39 W m^–2, which accounted for 87% of the energy, followed by H (6 W m^–2) at 13%. Q_mwas the primary energy output (–29 W m^–2, 63%), followed by L_net (–14 W m^–2, 31%), LE (–2 W m^–2, 5%) and G (the absolute value was <1 W m^–2, that is, less than 1%).

Even though we were able to assess the full-energy budget of a site on Austre Lovénbreen during one ablation season, the scarcity of long-term available data hinders our ability to perform more detailed analysis. SEB studies with longer AWS data records are needed to better understand energy and mass exchanges between the atmosphere and glacier surfaces.

Acknowledgements

The authors thank the Chinese National Arctic Scientific Expedition (CHINARE) for their fieldwork and the National Arctic and Antarctic Data Center for providing data on the Austre Lovénbreen. They also thank the anonymous reviewers whose comments helped to improve this article.

Data availability statement

The data sets generated for this study are available upon request from the corresponding author.
