RESEARCH ARTICLE

Liverworts frequently form mycothalli on Spitsbergen in the High Arctic

Kevin K. Newsham¹ & William P. Goodall-Copestake^1,2

¹British Antarctic Survey, Natural Environment Research Council, Cambridge, UK;

²Scottish Association for Marine Science, Oban, Argyll, Scotland, UK

Abstract

Mycothalli, symbioses between liverworts and soil fungi, have not previously been recorded in the Arctic. Here, 13 species of leafy liverwort from west Spitsbergen in the High Arctic are examined for the symbiosis using epifluorescence microscopy and sequencing of fungal ribosomal (r)RNA genes amplified from plant tissues. Microscopy showed that intracellular hyphal coils, key indicators of the symbiosis, were frequent (>40% stem length colonized) in nine species of liverwort in the families Anastrophyllaceae, Lophoziaceae, Cephaloziellaceae, Cephaloziaceae and Scapaniaceae, with hyphae occurring frequently (>40% cells occupied) in the rhizoids of 10 species in the same families. Dark septate hyphae, apparently formed by ascomycetes, were frequent on the stems of members of the Anastrophyllaceae, Cephaloziellaceae and Cephaloziaceae, and typically those growing on acidic mine tailings. Sequencing of fungal rRNA genes showed the presence of nine distinct groups (based on a 3% cut-off for ITS sequence divergence) of the basidiomycete Serendipita in the Anastrophyllaceae and Lophoziaceae, with ordinations and correlative analyses showing the presence of the genus to be positively associated with the frequency of hyphal coils, the occurrence of which was positively associated with edaphic factors (soil δ¹⁵N value and concentrations of moisture, nitrogen, carbon and organic matter). We propose that the frequency of mycothalli in leafy liverworts on west Spitsbergen, which is an order of magnitude higher than at lower latitudes, may arise from benefits conferred by mycobionts on their hosts in the harsh environment of the High Arctic.

Keywords
Edaphic factors; Jungermanniidae; leafy liverworts; Serendipita; Svalbard; symbiosis

Abbreviations BLAST: basic local alignment search tool

DS: dark septate

GLM: general linear model

ITS: internal transcribed spacer

MUSCLE: multiple sequence comparison by log-expectation

PCA: principal components analysis

PCR: polymerase chain reaction

SLC: stem length colonized



Introduction

The harsh environmental conditions encountered in polar terrestrial ecosystems exert strong selection pressures on plants and other autotrophs, with low temperatures, aridity and high wind speeds leading to the occurrence of prostrate angiosperms, reduced species diversity and increased abundances of cryptogams (Newsham et al. 2009; Wietrzyk-Pełka et al. 2020). Symbioses occur frequently under these selection pressures, with algae and cyanobacteria entering into mutualisms with fungi to form lichens, which routinely dominate land cover in arid ecosystems at high latitudes (Asplund & Wardle 2017). Angiosperms similarly enter into mutualisms with soil fungi, predominantly not only to enhance the uptake of growth-limiting nutrients into their roots via fungal hyphae but also to benefit from improved antioxidant activity and osmotic balance derived from colonization by symbiotic fungi, which confer cold and freezing tolerance on the host (Acuña-Rodríguez et al. 2020). Accordingly, each of the main fungal symbionts associated with the roots of angiosperms at lower latitudes is present in the Arctic, with ecto-, ericoid, arbuscular, arbutoid and even orchid mycorrhizas having been recorded across the region (Newsham et al. 2009).

Research in temperate, tropical and Antarctic ecosystems indicates that members of all of the major liverwort clades form symbioses with soil fungi (Boullard 1988; Rimington et al. 2020). These symbioses, termed mycothalli, bear structural similarities to mycorrhizas: broadly, as in the arbuscular mycorrhizal mutualism, arbuscules and vesicles form in the tissues of the earlier-diverging complex thalloid and simple thalloid I liverworts, whereas septate intracellular hyphal coils, similar to the pelotons formed in orchid mycorrhizas, develop in the stem cells and rhizoid bases of more recently derived simple thalloid II and leafy liverwort species (Read et al. 2000; Bidartondo & Duckett 2010). Intracellular coils, which are the defining features of the symbiosis in the latter two clades, are usually accompanied by extensive hyphal colonization of rhizoid cells (Read et al. 2000; Pressel et al. 2010). Although complex thalloid and simple thalloid I and II liverwort species are typically infrequent in polar regions, the leafy liverworts have pan-Arctic distributions and can be locally abundant, particularly in mesic habitats (Arnell & Mårtensson 1959; Frisvoll & Elvebakk 1996; Konstantinova 2000; Damsholt 2007, 2013; Hassel et al. 2014). A range of fungi, known as mycobionts, colonize the leafy liverworts, with basidiomycetes (recently transferred from Sebacinales clade B to the Serendipitaceae [Weiß et al. 2016]) forming symbioses with members of families such as the Lophoziaceae, Scapaniaceae and Anastrophyllaceae (Read et al. 2000; Bidartondo & Duckett 2010) and ascomycetes—often the ericoid mycorrhizal symbiont Pezoloma ericae—associating with members of the families Cephaloziaceae and Cephaloziellaceae (Upson et al. 2007; Kowal et al. 2018). In contrast with the mycorrhizas, in which the main role of the symbiosis in soil nutrient acquisition is firmly established (Read 1991), the functions of mycothalli remain relatively obscure (Read et al. 2000; Weiß et al. 2016). However, recent research indicates that as in the ericoid mycorrhizal association, P. ericae enhances the nutrient uptake of Cephalozia bicuspidata, a leafy liverwort species (Kowal et al. 2018).

To the best of our knowledge, there are no reports in the literature of mycothalli from north of the Arctic Circle, with the northernmost record of the symbiosis apparently being in the simple thalloid I liverwort species Fossombronia incurva and F. wondraczekii on western Iceland at 64 °N (Rimington et al. 2019). Here, in order to determine whether or not mycothalli are present in the Arctic, we report a survey for the symbiosis in leafy liverworts on west Spitsbergen. The aims of the survey were to determine, using epifluorescence microscopy, the distribution of mycobionts in the tissues of 13 locally abundant leafy liverwort species and to taxonomically place frequently occurring mycobionts by sequencing fungal ribosomal RNA genes amplified from liverwort tissues. By comparing the frequencies of fungal structures in liverwort tissues with the occurrence of different fungal taxa, we also aimed to evaluate whether specific structures might be formed by distinct taxa of fungi. Furthermore, given the previous observation that symbioses between leafy liverworts and basidiomycetes tend to occur on soils high in organic matter (Duckett et al. 2006; Bidartondo & Duckett 2010), we also determined whether the frequency of intracellular hyphal coils is associated with edaphic factors.

Materials and methods

Site descriptions and sampling

Locally abundant leafy liverworts were sampled from eight sites on Brøggerhalvøya and Blomstrandhalvøya, on the west coast of Spitsbergen in the High-Arctic archipelago of Svalbard (Fig. 1). Details and images of the sampling sites are shown in Supplementary Table S1 and Supplementary Fig. S1, respectively. Mean annual and winter and summer air temperatures on Brøggerhalvøya are –5.7 °C, –12.7 °C and 3.7 °C, respectively, and mean annual precipitation is 409 mm, most of which falls as snow (Hanssen-Bauer et al. 2019). The snow-free season on Brøggerhalvøya lasts for about 90 days, with snow cover accumulating from mid-September, and most having melted by mid-June (Winther et al. 2002; Beck et al. 2005). The sun remains below the sea-level horizon on Brøggerhalvøya between 25 October and 17 February (Winther et al. 2002).

Fig. 1 Maps showing the locations of (a) Spitsbergen in the High-Arctic archipelago of Svalbard and (b) Brøggerhalvøya and Blomstrandhalvøya, with the positions of the eight sampling sites marked. See Supplementary Fig. S1 and Supplementary Table S1 for images and further details of the sampling sites.

In July 2010, August 2011 and July 2012, 140 specimens of 13 leafy liverwort species in the Anastrophyllaceae, Cephaloziaceae, Cephaloziellaceae, Lophoziaceae, Scapaniaceae, Blepharostomataceae and Ptilidiaceae (Table 1) were collected from the eight sites. Using a clean spatula, soil (depth 0–20 mm) was also sampled from directly beneath each liverwort specimen. The specimens, which were air-dried at room temperature within several hours of collection in a clean paper packet, have been deposited in the British Antarctic Survey herbarium (Index Herbariorum code AAS; see https://data.bas.ac.uk/metadata.php?id=GB/NERC/BAS/AEDC/00023).

Table 1 Liverwort taxa sampled from Brøggerhalvøya and Blomstrandhalvøya.

Familya	Speciesa,b
Anastrophyllaceae	Barbilophozia hatcheri (8)
	Gymnocolea inflata (6)
	Pseudolophozia sudetica (7)
	Schljakovianthus quadrilobus (12)
	Sphenolobus minutus (10)
Cephaloziaceae	Cephalozia bicuspidata (4)
Cephaloziellaceae	Cephaloziella variansc (18)
Lophoziaceae	Lophoziopsis excisa (18)
	Lophozia wenzelii (2)
	Trilophozia quinquedentata (33)
Scapaniaceae	Scapania undulata (3)
Blepharostomataceae	Blepharostoma trichophyllum (10)
Ptilidiaceae	Ptilidium ciliare (9)
aTaxonomy follows Söderström et al. (2016). bValues in parentheses indicate the numbers of samples of each species examined by microscopy. cSyn. Cephaloziella arctica (Stotler & Crandall-Stotler 2017).

Edaphic factors

Soil pH value was measured by adding approximately the same volume of deionized water to fresh soils to generate slurries and recording pH after 10 minutes using a glass electrode (pH 21, Hanna Instruments). Moisture concentration was measured by heating ca. 1 g of fresh sub-samples of soils to constant weight at 105 °C. The remaining soils were air-dried prior to further analyses. Organic matter concentration was determined by heating sub-samples of the air-dried soils to 550 °C in a muffle furnace for 4 hours prior to cooling over desiccant and weighing. Air-dried soils (ca. 2.5 mg) were also weighed into tin capsules and analysed for total carbon concentration, δ¹³C value, total nitrogen concentration and δ¹⁵N value using a PDZ Europa ANCA-GSL elemental analyser interfaced to a PDZ Europa 20-20 isotope ratio mass spectrometer (Sercon Ltd.) at the University of California-Davis stable isotope facility.

Distribution of mycobionts

Dried plants were rehydrated in water and cleared in 10% potassium hydroxide for 24 hours at room temperature. All plants were then rinsed thoroughly with water and were bleached in a mixture of 30% hydrogen peroxide and 3% ammonium hydroxide (10:1, v/v) for up to 10 minutes. The plants were then washed thoroughly with water, were acidified in 5% lactic acid for 1 hour and were stained with 0.01% aniline blue in lactic acid for 24 hours. They were then removed from the staining solution, excess stain was drawn off on absorbent paper and the plants were destained for at least 24 hours in 80% lactic acid. Between 10 and 15 healthy stems of each species, and at least 40 of those of Cephaloziella varians and Cephalozia bicuspidata, were then lightly squashed in 80% lactic acid on glass slides prior to observation under epifluorescence at × 400 magnification using a BX51 compound microscope fitted with a UPlanApo × 40 objective lens, a 100-W mercury short arc lamp and an ultraviolet fluorescence filter cube (U-MWU2, consisting of a BP 330–385 excitation filter, a DM 400 dichromatic mirror and an LP 420 emission filter; Olympus Life Science). Between 50 and 135 (mean 102) intersections were scored for stained (and hence fluorescing) intracellular hyphal coils in rhizoid bases and stem epidermal cells, stained septate hyphae on stem surfaces and DS hyphae on stem surfaces, with the percentage of SLC by each of these structures subsequently being calculated (McGonigle et al. 1990). If ≥30 rhizoids were present, then the percentage that were colonized by hyphae was also determined. The data derived from these analyses have been deposited in the UK Polar Data Centre (https://doi.org/10.5285/80DE87F3-9497-4606-8C7D-3293AB05651F).

Taxonomic placement of mycobionts

Fungal DNA was amplified from 26 of the 140 specimens. These consisted of 1–3 specimens of each of the 13 species collected from the eight sampling sites (Supplementary Table S2). Visibly healthy plants were sorted to single species and were cleaned of any debris in water under a binocular microscope at ≥ × 7.5 magnification. Using a modification of the root washing method of Harley & Waid (1955), the plants were then surface sterilized using 30 washes of sterile water (10 ml) in sterile tubes (15 ml capacity) on a vortexer set to maximum speed (50 revolutions per second). Treatment with sodium hypochlorite or other surface sterilants was avoided at this step because the stems of some of the liverwort species studied are only a few cells in thickness. Water was drained from plants on sterile plastic mesh (1 mm) between washes, each of which lasted for 5 minutes. After washing, the tissues were blotted dry on sterile filter paper and were then air-dried for 60 minutes under a sterile hood. They were then rehydrated in sterile water and homogenized with a TissueRuptor (Qiagen).

DNA was extracted from washed liverwort tissues using an Extract’n’Amp kit (Sigma-Aldrich) following the manufacturer’s instructions, again under a sterile hood. A commercially available reagent mix (MyTaqHS, Bioline Reagents Ltd) was used to amplify fungal DNA from liverwort tissues. Reactions, made up to 15 µl with sterile distilled water, contained a 0.25 µM final concentration of each of the primers ITS1F (5’-CTTGGTCATTTAGAGGAGTAA-3’; Gardes & Bruns 1993) and ITS4 (5’-TCCTCCGCTTATTGATATGC-3’; White et al. 1990). The DNA template used in these reactions was a 0.75 µl aliquot of the final Extract’n’Amp mixture, or sterile distilled water as a negative control. PCR thermocycling was carried out using an initial denaturation of 95 °C for 5 minutes, followed by 35 cycles of denaturation at 95 °C for 15 seconds, annealing at 56 °C for 15 seconds, and elongation at 72 °C for 2 minutes, with a final elongation step of 5 minutes. Gel visualization indicated a strong amplification of ITS regions from the extracts from liverwort tissues and no amplicons from negative controls. The ITS region PCR products were cloned using a TOPO TA Cloning Kit (Thermo Fisher Scientific), and the cloned DNA was subsequently amplified using the M13F (5’-GTAAAACGACGGCCAG-3’) and M13R (5’-AACAGCTATGACCATGAT-3’) primer set and was bidirectionally sequenced using these M13 primers at a commercial facility. Forward and reverse chromatograms from each clone were assembled, base calling within the resulting contig was verified and vector and primer sequences were trimmed using Geneious Prime 2019.2.3 (http://www.geneious.com, accessed December 2019). Sequences of <400 base pairs and with relative abundances of <5% were excluded from further analyses, resulting in a total of 284 high-quality sequences, with 10–39 (mean 22) sequences per liverwort species.

The sequences were aligned using the MUSCLE algorithm implemented in Geneious with output grouped according to similarity. Ribosomal RNA-encoding and ITS spacer regions were then defined based on homology to similar fungal sequences identified through the BLAST function in Geneious with the default nr/nt National Center for Biotechnology Information database setting. In order to delineate putative fungal species boundaries between the sequences, Geneious was used iteratively, to define and realign sub-groups of sequences until within-group ITS divergences were <3%, following the rationale of Blaalid et al. (2013). The taxonomic placement of representative sequences from each putative species group was then determined using the massBLASTer function in UNITE version 8.2 (release date February 2020), a curated database of fungal ITS sequences (Nilsson et al. 2015). The closest named match below the kingdom level was selected for each sequence and was used to define taxonomic identifiers that were consistent with the percentage match identity (i.e., matches to species, genus, family, order and class levels of >97%, >90%, >85%, >80% and >75%, respectively).

Statistical analyses

PCA was used to determine associations between the frequencies of fungal structures and taxa in the 26 specimens from which DNA was amplified, and GLMs were used to determine differences between the frequencies of fungal structures in the tissues of specimens in which different fungal taxa were recorded. Pearson’s correlations were also used to determine associations between the frequencies of hyphal coils in members of the Anastrophyllaceae and Lophoziaceae and edaphic factors. Statistical analyses were performed in MINITAB 19 (State College, PA, USA).

Results

Distribution of mycobionts

Stained hyphal coils formed in the rhizoid bases and stem medullary cells of 12 of the 13 leafy liverwort species that were examined (Fig. 2a). The coils were typically formed by tightly convoluted, septate hyphae of ca. 1.5–2.0 µm width (Supplementary Fig. S2a–c). Hyphal coils were frequent (>40% SLC) in the tissues of nine leafy liverwort species (Barbilophozia hatcheri, Pseudolophozia sudetica, Sphenolobus minutus, Cephalozia bicuspidata, Cephaloziella varians, Lophoziopsis excisa, Lophozia wenzelii, Trilophozia quinquedentata and Scapania undulata), with these structures being particularly frequent in all three members of the Lophoziaceae and in those of the Anastrophyllaceae, except for Gymnocolea inflata and Schljakovianthus quadrilobus (Fig. 2a). In contrast, hyphal coils were infrequent (2% SLC) in the tissues of Blepharostoma trichophyllum and were not recorded in those of Ptilidium ciliare (Fig. 2a). Rhizoid colonization followed a similar pattern, with frequent colonization (>40% of rhizoids colonized) in 10 liverwort species, including all members of the Lophoziaceae and all but one member of the Anastrophyllaceae (G. inflata; Fig. 2b), by septate hyphae continuous with hyphal coils in the bases of rhizoid cells (Supplementary Fig. S2d). As for coils, hyphae were relatively infrequent in the rhizoids of B. trichophyllum (32% of cells colonized), and rhizoids were apparently absent from the stems of P. ciliare (Fig. 2b). Stained septate hyphae on stem surfaces were less frequent than hyphal coils and colonized rhizoids, with these hyphae only being frequent (>40% SLC) on the stems of S. minutus (Fig. 2c). DS hyphae, which often occurred on the surfaces of stems colonized by other fungal structures (Supplementary Fig. S2e), varied substantially in abundance, with frequent (>40% SLC) occurrence on individual members of the Anastrophyllaceae, Cephaloziaceae and Cephaloziellaceae (G. inflata, C. bicuspidata and C. varians, respectively; Fig. 2d).

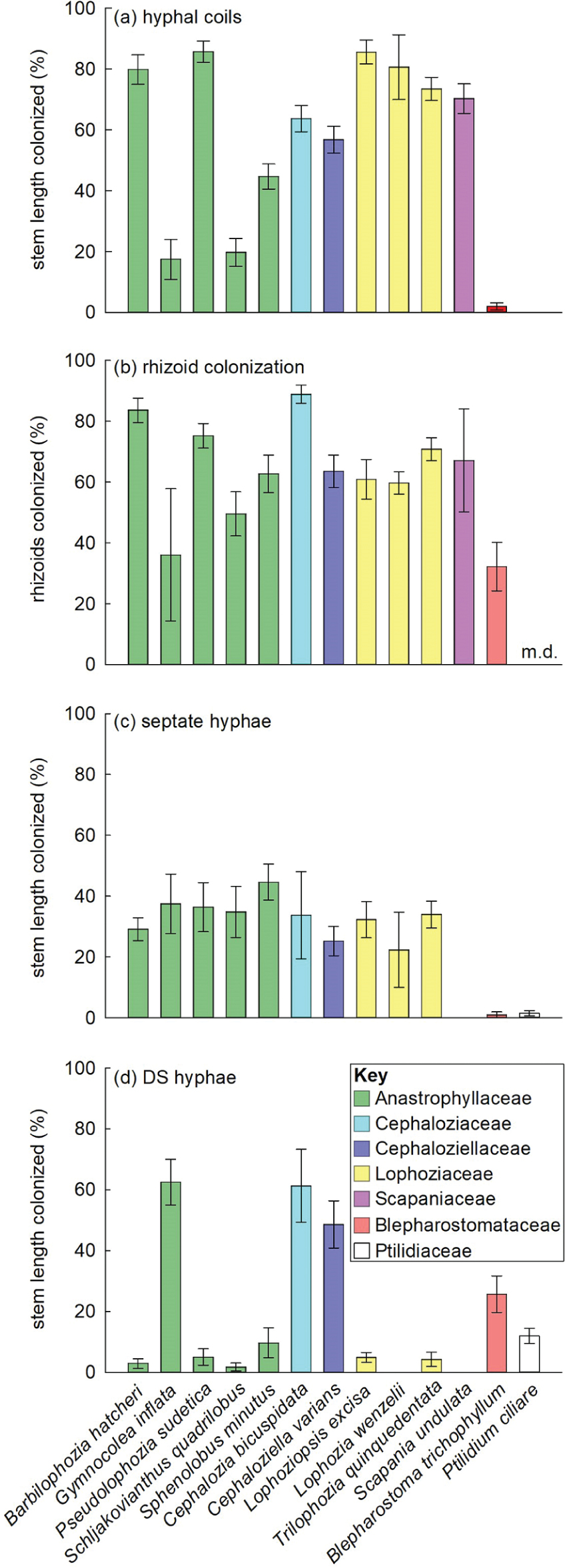

Fig. 2 Percentages of (a) SLC by hyphal coils, (b) rhizoids colonized by hyphae (the abbreviation m.d. indicates that rhizoids were not observed), (c) SLC by septate hyphae and (d) SLC by DS hyphae in leafy liverworts sampled from Brøggerhalvøya and Blomstrandhalvøya. See Table 1 for details of replication. Bars are standard errors of the means.

Taxonomic placement of mycobionts

The DNA of ascomycetes and basidiomycetes was amplified from the 26 specimens of liverworts sampled from Brøggerhalvøya and Blomstrandhalvøya (Table 2). All of the ascomycetes belonged to the subphylum Pezizomycotina and had ITS region sequences that were 89–99% similar to those of fungi previously recorded from roots, soils and ascocarps from North America and Europe (Table 2). Two groups of Cladophialophora, referred to below as Cladophialophora_A and Cladophialophora_B, along with Cheilymenia, Bryochiton and members of the Lecanoromycetes, Leotiomycetes, Dothideomycetes, Chaetothyriales and Helotiales, including Pezoloma ericae, were recorded (Table 2). The most frequent ascomycete, which accounted for 23% of all DNA reads, was a member of the Leotiomycetes. It was recorded in four -liverwort species (C. varians, C. bicuspidata, G. inflata and S. undulata), the latter three of which were exclusively sampled from acidic (pH 4.5) mine tailings (Supplementary Table S1). Three members of the Helotiales were recorded, with Pezoloma ericae being amplified from B. hatcheri, S. quadrilobus and S. minutus (10–24% of reads in each liverwort species), and two other members of the order from T. quinquedentata and P. ciliare (Fig. 3). A representative of the Dothideomycetes was recovered from C. varians, C. bicuspidata and G. inflata, and Cheilymenia was found in L. excisa (Fig. 3). A species of Bryochiton was detected in P. ciliare, with members of the Lecanoromycetes and Chaetothyriales being identified in B. trichophyllum and the latter fungus also being found in S. quadrilobus (Fig. 3). Cladophialophora_A was amplified from B. hatcheri and L. wenzelii and Cladophialophora_B from G. inflata (8–35% of reads; Fig. 3).

Table 2 The taxa of fungi recorded in leafy liverworts sampled from Brøggerhalvøya and Blomstrandhalvøya. Distinct taxa are classified based on a 3% cut-off for ITS sequence divergence.

Fungal taxon	GenBank accession code	Closest named GenBank match (percentage identity, accession code, source and continent)	Closest UNITE species hypothesis	Lineage
Ascomycota
(1) Cladophialophora_A	MW257161	99%, HQ211827, soil, North America	SH1616354.08FU	Pezizomycotina; Eurotiomycetes; Chaetothyriomycetidae; Chaetothyriales; Herpotrichiellaceae
(2) Cladophialophora_B	MW257162	95%, HQ211827, soil, North America	SH1616354.08FU	As for Cladophialophora_A
(3) Lecanoromycetes	MW257163	95%, HQ212081, soil, North America	SH1566020.08FU	Pezizomycotina
(4) Helotiales	MW257164	99%, KC965767, soil, North America	SH1557921.08FU	Pezizomycotina; Leotiomycetes; Leotiomycetidae
(5) Leotiomycetes	MW257165	89%, HQ212060, soil, North America	SH1544362.08FU	Pezizomycotina
(6) Cheilymenia	MW257166	97%, KF617920, soil, North America	m.d.b	Pezizomycotina; Pezizomycetes; Pezizomycetidae; Pezizales; Pyronemataceae
(7) Dothideomycetes	MW257167	93%, EU292643, soil, North America	SH1565780.08FU	Pezizomycotina
(8) Chaetothyriales	MW257168	98%, GU581246, grass root, Europe	SH1565801.08FU	Pezizomycotina; Eurotiomycetes; Chaetothyriomycetidae
(9) Bryochitona	MW257169	93%, MH864237, ascocarp, Europe	SH1571463.08FU	Pezizomycotina; Dothideomycetes; Dothideomycetes i.s.c; Pseudoperisporiaceae
(10) Helotiales	MW257170	92%, GU366730, soil, North America	SH1565558.08FU	Pezizomycotina; Leotiomycetes; Leotiomycetidae
(11) Pezoloma ericae	MW257171	99%, HQ212326, soil, North America	SH1523755.08FU	Pezizomycotina; Leotiomycetes; Leotiomycetidae; Helotiales; Leotiaceae
Basidiomycota
(12) Serendipita_A	MW257173	98%, GQ907084, Barbilophozia lycopodioides, Europe	SH1577252.08FU	Agaricomycotina; Agaricomycetes; Agaricomycetes i.s.c; Sebacinales; Serendipitaceae
(13) Serendipita_B	MW257174	97%, GQ907137, Lophozia crispata, South America	SH1577346.08FU	As for Serendipita_A
(14) Serendipita_C	MW257175	99%, GQ907137, L. crispata, South America	SH1577346.08FU	As for Serendipita_A
(15) Serendipita_D	MW257176	95%, GQ907141, Saccogyna viticulosa, Europe	SH1577377.08FU	As for Serendipita_A
(16) Serendipita_E	MW257177	94%, GQ907108, Lophozia sudetica, Europe	SH1577429.08FU	As for Serendipita_A
(17) Serendipita_F	MW257178	95%, GQ907091, Scapania calcicola, Europe	SH1577319.08FU	As for Serendipita_A
(18) Serendipita_G	MW257179	99%, GQ907107, Lophozia opacifolia, Europe	SH1577320.08FU	As for Serendipita_A
(19) Serendipita_H	MW257180	98%, GQ907111, Scapania irrigua, Europe	SH1577350.08FU	As for Serendipita_A
(20) Serendipita_I	MW257181	93%, GQ907082, Lophozia wenzelii, Europe	SH1577354.08FU	As for Serendipita_A
(21) Sebacinales	MW257182	97%, GQ907149, Trilophozia quinquedentata, Europe	SH1577384.08FU	Agaricomycotina; Agaricomycetes; Agaricomycetes i.s.c
aMH864237, deposited as Bryochiton perpusillus, is named only to genus level, reflecting the uncertainty surrounding the 93% level match. bMissing data. cIncertae sedis.

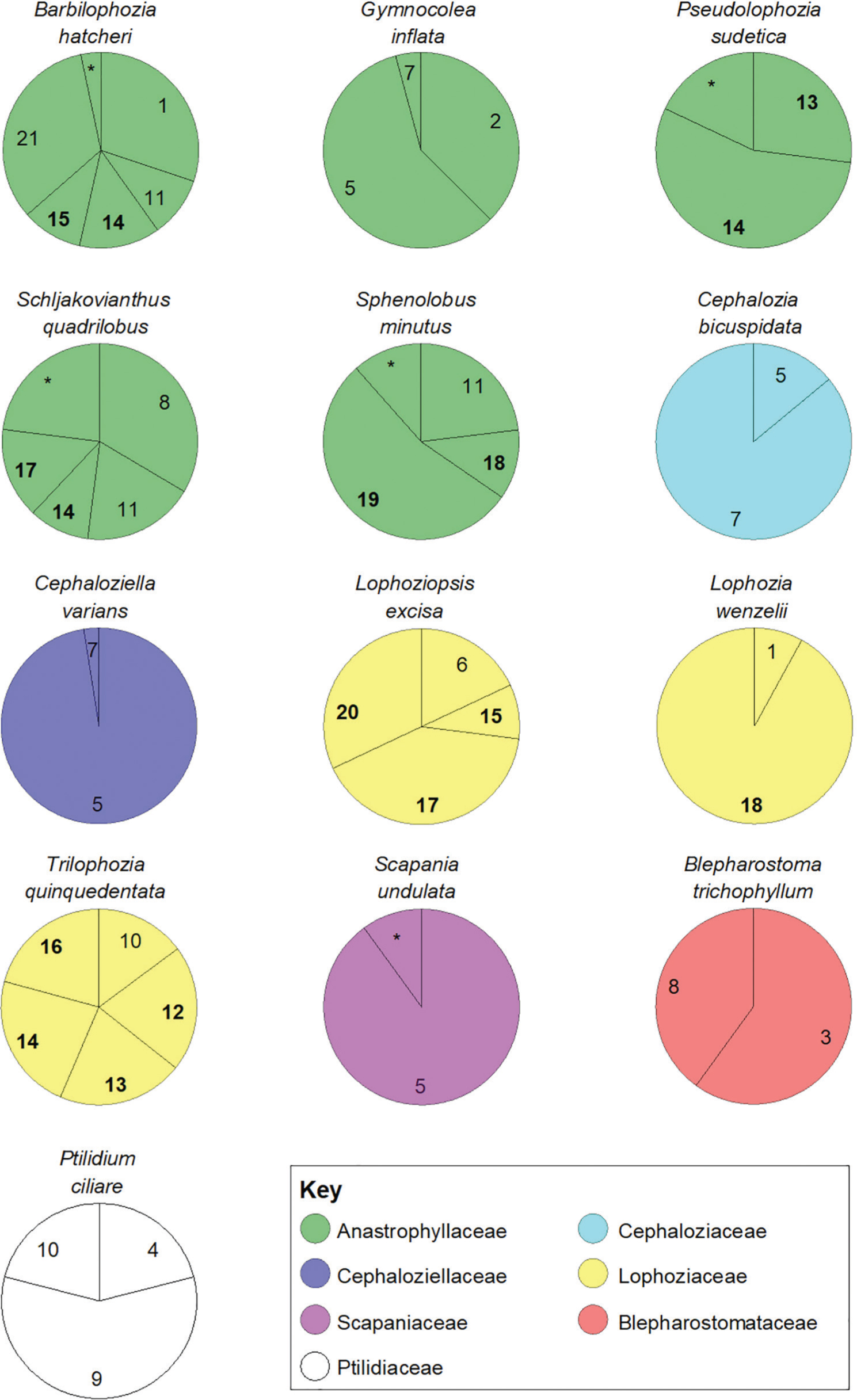

Fig. 3 Pie charts showing the taxa of fungi amplified from leafy liverworts sampled from Brøggerhalvøya and Blomstrandhalvøya. The numbers in each segment correspond to those shown in the first column of Table 2. Segments marked with asterisks indicate fungal taxa present at relative abundances of <5% across the entire data set. Numbers between 12 and 20, in boldface, denote Serendipita_A–I.

The basidiomycetes consisted of nine groups of Serendipita, which accounted for 41% of all DNA reads and are referred to below as Serendipita_A–I, along with a representative of the Sebacinales (Table 2). The ITS regions of each of these fungi bore 93–99% similarities to those of previously reported mycobionts of leafy liverworts from Europe and South America (Table 2). The DNA of Serendipita_A–I and the Sebacinales was only amplified from liverworts belonging to the Anastrophyllaceae and Lophoziaceae and was frequently amplified from B. hatcheri, P. sudetica, S. minutus, L. excisa, L. wenzelii and T. quinquedentata, in which it accounted for 55–92% of reads (Fig. 3). Between one and four distinct groups of Serendipita were recorded in each of these species (Fig. 3). These fungi accounted for fewer DNA reads in S. quadrilobus (Anastrophyllaceae), with Serendipita_C and Serendipita_F collectively accounting for a quarter of reads amplified from the tissues of this species (Fig. 3). The only member of the Anastrophyllaceae or Lophoziaceae from which the DNA of Serendipita or the Sebacinales was not amplified was G. inflata (Fig. 3).

Structures as predictors of mycobiont identity

Analyses using GLMs indicated that hyphal coils (Supplementary Fig. S2a–c) were almost twice as frequent in specimens from which the DNA of Serendipita_A–I was amplified than in those from which the basidiomycete was apparently absent (mean SLC by coils = 65.8% and 37.5%, respectively; F_1,46 = 12.88, p = 0.002). PCA similarly indicated positive associations between the frequencies of hyphal coils and the occurrence of Serendipita in members of the Anastrophyllaceae and Lophoziaceae (Fig. 4). In particular, the presence of Serendipita A–D and Serendipita_I was strongly associated with the formation of hyphal coils in liverwort tissues (Fig. 4), with coils being abundant (mean SLC = 77–95%) in liverwort specimens from which the DNA of these five mycobionts was amplified. GLMs also indicated more frequent hyphal colonization of rhizoids (Supplementary Fig. S2d) in specimens from which the DNA of Serendipita_A–I was amplified compared with those from which the DNA of the genus was not amplified (mean colonization = 70.9% and 51.4%, respectively; F_1,46 = 4.83, p = 0.033). PCA similarly showed positive associations between rhizoid colonization and the frequencies of Serendipita (Fig. 4), with 79–94% of rhizoid cells being colonized by hyphae when the DNA of Serendipita_B–D and Serendipita_I was amplified from specimens. PCA also suggested that the frequency of septate hyphae on stem surfaces was positively associated with the presence of Serendipita (Fig. 4), with 45–60% of stem length occupied by these hyphae when the DNA of Serendipita A–C and Serendipita_F was amplified from liverwort specimens. However, there was only a marginally significant difference between the frequency of septate hyphae on stem surfaces of specimens from which the DNA of Serendipita_A–I was amplified and specimens apparently not colonized by these fungi (F_1,46 = 3.55, p = 0.066).

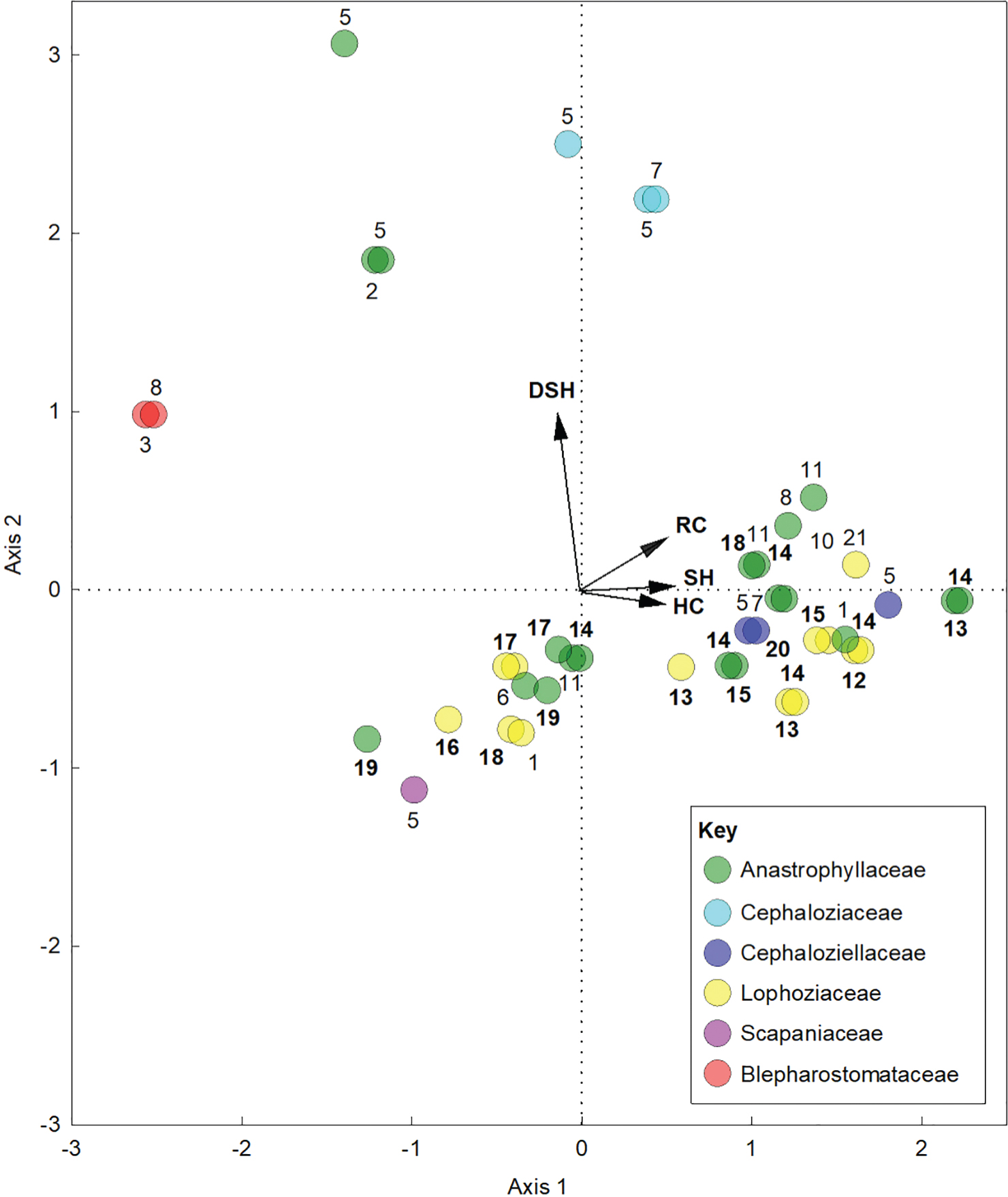

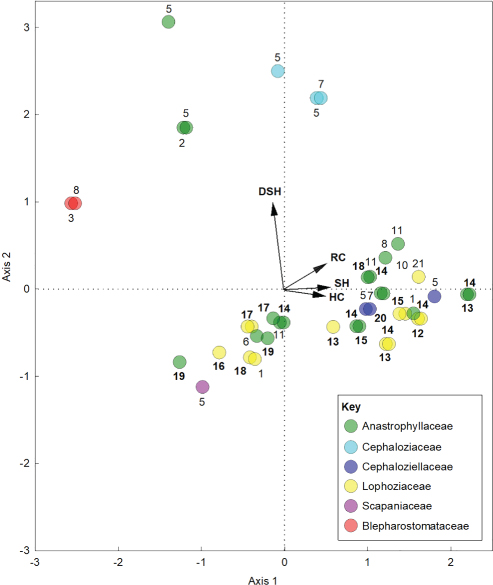

Fig. 4 PCA biplot showing associations between fungal structures and the identities of mycobionts colonizing leafy liverworts. Fungal taxa are denoted by numbers, corresponding to those in the first column of Table 2. Numbers between 12 and 20, in boldface, denote Serendipita_A–I. Arrows denote vectors: dark septate hyphae (DSH); rhizoid colonization (RC); septate hyphae (SH); hyphal coils (HC). Note that axes 1 and 2 collectively explained 83.5% of variation, and that the lack of rhizoids on the stems of Ptilidium ciliare precluded its inclusion in the PCA.

GLMs showed less frequent colonization by DS hyphae in specimens from which the DNA of Serendipita_A–I was amplified, compared with specimens in which these fungi were not detected (mean SLC by DS hyphae = 2.0% and 20.6%, respectively; F_1,46 = 8.21, p = 0.006). PCA similarly indicated negative associations between the frequencies of DS hyphae and those of Serendipita (Fig. 4), with these hyphae being absent from specimens from which the DNA of Serendipita_D, Serendipita_E or Serendipita_I was amplified, and DS hyphae occupying 2–5% of stem length when the other six groups of Serendipita were recorded in specimens. In contrast, PCA showed positive associations between the frequencies of DS hyphae and those of Cladophialophora_B and the Leotiomycetes member in G. inflata, the latter fungus and the Dothideomycetes representative in C. bicuspidata, and the members of the Chaetothyriales and Lecanoromycetes in B. trichophyllum (Fig. 4), with DS hyphae occupying 34–55% of stem length when the DNA of these five groups of fungi was amplified from specimens. All but one of the specimens from which the DNA of these fungi was amplified had been sampled from soils with pH values of 3.7–4.5.

Edaphic factors as predictors of hyphal coil frequency

Correlative analyses indicated that edaphic factors significantly predicted the frequency of hyphal coils in members of the Anastrophyllaceae and Lophoziaceae. When the observations for both families were combined, hyphal coil frequency was found to be positively correlated with the concentrations of soil moisture (r = 0.633, p < 0.001), total nitrogen (r = 0.392, p < 0.001) and organic matter (r = 0.347, p = 0.001), as well as with soil δ¹⁵N value (r = 0.444, p < 0.001; Fig. 5a–d). Hyphal coil frequency across members of both families was also associated with soil total carbon concentration (r = 0.272, p = 0.007; data not shown).

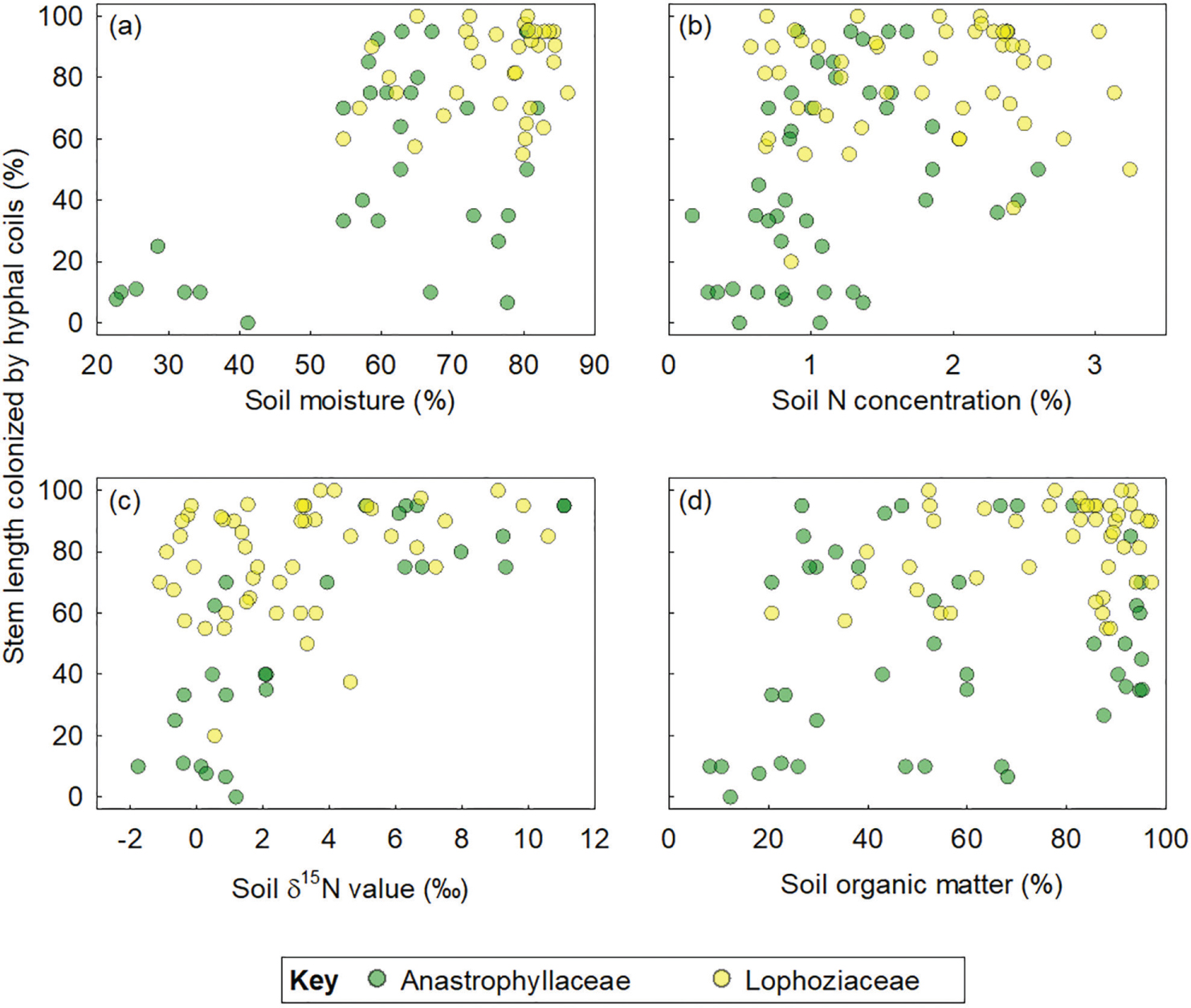

Fig. 5 Percentages of SLC by hyphal coils in members of the Anastrophyllaceae and Lophoziaceae as a function of (a) soil moisture concentration, (b) soil N concentration, (c) soil δ¹⁵N value and (d) soil organic matter concentration. Note that y axes are all scaled identically.

Discussion

The survey reported here shows for the first time that mycothalli occur north of the Arctic Circle and are apparently frequent on west Spitsbergen. Of the 13 leafy liverwort species that are abundant on Brøggerhalvøya and Blomstrandhalvøya (Arnell & Mårtensson 1959), the rhizoids of 10 species were often colonized by hyphae, and the stems of nine species were frequently colonized by intracellular hyphal coils, a defining feature of the symbiosis (Boullard 1988; Read et al. 2000). The patterns of colonization observed in the tissues of these leafy liverwort species, which were each members of the Anastrophyllaceae, Cephaloziaceae, Cephaloziellaceae, Lophoziaceae or Scapaniaceae, were thus similar to those observed in members of these five families sampled from lower latitudes, such as species of Barbilophozia, Lophozia, Cephalozia, Cephaloziella, Diplophyllum and Scapania in temperate, tropical and Antarctic habitats (Duckett & Read 1995; Upson et al. 2007; Bidartondo & Duckett 2010; Newsham & Bridge 2010; Kowal et al. 2018). In contrast, members of the Ptilidiaceae and Blepharostomataceae (Ptilidium ciliare and Blepharostoma trichophyllum, respectively) did not exhibit these patterns of colonization. Colonization by hyphal coils was absent from the stems of P. ciliare, from which rhizoids were apparently absent, corroborating the view that fungal symbionts enter liverwort tissues via the tips of rhizoid cells (Pressel et al. 2010). Despite the presence of colonized rhizoids on the stems of B. trichophyllum, hyphal coils only occasionally formed at the base of rhizoid cells in this species and did not proliferate further along the stem. This pattern of colonization is similar to that previously recorded for Calypogeia, in which cell wall ingrowths halt the growth of fungal hyphae beyond rhizoid bases (Němec 1904).

The data reported here, in addition to adding further weight to the argument that the Serendipitaceae has a global distribution (Newsham & Bridge 2010; Weiß et al. 2011, 2016), indicate that Serendipita mycobionts are frequent in the Anastrophyllaceae and Lophoziaceae, later-diverging hepatic families assigned to clade B of leafy clade II by Forrest et al. (2006). Previous studies using electron microscopy have shown the presence of heterobasidiomycetes with dolipore septa and imperforate parenthosomes—which were most probably members of Serendipita—forming tightly convoluted, intracellular hyphal coils in the tissues of liverworts in these families and in those of the Arnelliaceae, Jungermanniaceae, Geocalycaceae and Scapaniaceae (Read et al. 2000; Bidartondo & Duckett 2010). The study here, based on epifluorescence microscopy and PCR amplification of fungal ribosomal RNA genes, closely corroborates these observations, with the frequency of Serendipita being positively associated with the abundance of intracellular hyphal coils, identical to those previously recorded in European and Antarctic Diplophyllum albicans, Schistochilopsis incisa, Barbilophozia hatcheri, Trilophozia quinquedentata and Lophoziopsis excisa (Bidartondo & Duckett 2010; Newsham & Bridge 2010; Newsham et al. 2014). The analyses here also indicate that Serendipita most probably does not form DS hyphae, with melanized hyphae being absent from, or present at very low levels in, specimens from which the DNA of the basidiomycete was amplified. Positive associations between the frequencies of Serendipita and hyphal colonization of rhizoid cells were also recorded. However, rhizoid colonization is most probably a poor predictor for the presence of the basidiomycete, as resynthesis experiments have shown other fungal taxa, such as Pezoloma ericae, to colonize rhizoids (Upson et al. 2007; Kowal et al. 2018).

Previous studies have noted that mycothalli formed between leafy liverworts and Serendipita tend to occur on well-drained soils that are rich in humus (Duckett et al. 2006; Bidartondo & Duckett 2010), raising the possibility that underlying soil chemistry influences the formation of the symbiosis. The correlative analyses here confirm that intracellular hyphal coils are more frequent in the tissues of the Anastrophyllaceae and Lophoziaceae on soils with higher concentrations of moisture, organic matter, carbon and nitrogen. In addition, hyphal coils also frequently formed in the tissues of members of these families sampled from soils with δ¹⁵N values of up to 11‰, associated with the input of marine-derived nitrogen from seabirds below bird cliffs (Zwolicki et al. 2016). Thus, as well as influencing the taxa of leafy liverworts that occur on the Brøggerhalvøya, such as the positive associations found between the occurrence of B. hatcheri and soil carbon and nitrogen concentrations (Wietrzyk-Pełka et al. 2020), edaphic factors also apparently determine the formation of mycothalli, as they do in mycorrhizal symbioses (Read 1991; Wubet et al. 2012). Although soil pH was not associated with the formation of hyphal coils, the analyses here suggest that pH value influences the occurrence of Serendipita in leafy liverwort tissues, with Gymnocolea inflata (Anastrophyllaceae) and Scapania undulata (Scapaniaceae), members of families colonized by the basidiomycete at lower latitudes (Rimington et al. 2020), apparently not associating with the mycobiont. Both species were sampled from mine tailings with a mean pH value of 4.5, suggesting that Serendipita cannot tolerate strongly acidic conditions. This view is supported by a study showing that four out of six isolates of S. vermifera from orchid mycorrhizas grew less well at pH 4 than at pH 5–8 (Warcup 1988). The absence of ectomycorrhizas formed by the Sebacinaceae from strongly acidic (pH 3.0–3.4) soils in northern Europe, compared with up to 13 ectomycorrhizas formed by the family in less acidic (pH ≤6.4) soils (Wubet et al. 2012), further suggests that fungi allied with Serendipita are unable to tolerate soils of high acidity.

Ascomycetes were frequently recorded in liverwort tissues from west Spitsbergen, where, in agreement with previous studies on Pezoloma ericae (Upson et al. 2007), they were apparently responsible for the formation of DS hyphae on stem surfaces. Despite previous studies showing that P. ericae associates with leafy liverworts, and notably members of the Cephaloziaceae and Cephaloziellaceae (Upson et al. 2007; Kowal et al. 2018), the fungus was not recorded in C. bicuspidata and C. varians, the members of these families sampled in our study. These liverwort species were instead colonized by members of the Dothideomycetes and Leotiomycetes, typically on acidic (pH 4.5) mine tailings, with the best match for the latter mycobiont being a fungus present in Alaskan soils of pH value 4.4–4.7 (Deslippe et al. 2012). Nevertheless, P. ericae was recorded in Schljakovianthus quadrilobus, Sphenolobus minutus and B. hatcheri, raising the possibility that the fungus might form symbioses with members of the Anastrophyllaceae, such as the report of ascomycetes colonizing Barbilophozia barbata (Kottke et al. 2003). Whilst it is not possible to discount the possibility that the other ascomycetes recorded here are commensals with no symbiotic status, it is notable that two groups of Cladophialophora were recorded in Lophozia wenzelii, B. hatcheri and G. inflata. Cladophialophora has similarly been found to associate with species of Lophozia and Barbilophozia in North America and Antarctica (Davis & Shaw 2008; Newsham & Bridge 2010), suggesting that the genus may form symbioses with leafy liverworts, and particularly those in cold environments (Newsham et al. 2014). Given the culturability of Cladophialophora (Davey & Currah 2007), we advocate that resynthesis experiments are conducted to determine the effects of the fungus on its liverwort hosts.

A recent literature survey estimated that 29% of 591 liverwort species in temperate and tropical habitats engage in symbioses with soil fungi (Rimington et al. 2020). Of the leafy liverworts, some 20% of species are colonized by ascomycetes, with just 5% being colonized by basidiomycetes (Rimington et al. 2020). The data reported here for the ascomycetes fit well with these estimates, with three out of 13 (23%) of liverwort species sampled from west Spitsbergen apparently associating with P. ericae, a known symbiont of leafy liverworts (Upson et al. 2007; Kowal et al. 2018). However, leafy liverwort-associated basidiomycetes of known symbiotic status—that is, predominantly Serendipita (Weiß et al. 2016)—were recorded in the tissues of 54% of the liverwort species studied here. The reason for this apparent order of magnitude increase in the frequency of leafy liverwort taxa associating with Serendipita on Spitsbergen is unclear. It is possible that the local environment, which is characterized by frequent subzero air temperatures, coupled with nine months of snow cover and the absence of direct sunlight for almost four months each year, selects for liverwort taxa that form mycothalli with these fungi. This seems plausible, given that the Lophoziaceae and Anastrophyllaceae account for 38–48% of leafy liverwort communities in the Canadian Arctic and north-west Greenland (Damsholt 2007; Hassel et al. 2014). However, another, and not mutually exclusive, explanation for the abundance of mycothalli formed by Serendipita on Spitsbergen is that these mycobionts may confer benefits on their liverwort hosts in harsh environments, for example, by synthesizing osmolytes in planta that stabilize plasma membranes at low temperatures and confer freezing tolerance on the host (Acuña-Rodríguez et al. 2020). It is also possible that mycobionts may assist leafy liverworts in the acquisition of nutrients (Kowal et al. 2018), and, in particular, organic forms of nitrogen, which accumulate in Arctic soils (Boddy et al. 2008). Forthcoming studies will address this possibility.

Conclusion

We conclude that mycothalli are present north of the Arctic Circle, and that the symbiosis is apparently more frequent in locally abundant leafy liverworts on west Spitsbergen than it is at lower latitudes. Given the abundance in the Arctic of liverwort families that form the symbiosis (Konstantinova 2000; Damsholt 2007, 2013; Hassel et al. 2014) and the potential influence of mycobionts on the physiology of leafy liverworts, we advocate that further surveys should be made to ascertain the frequency of the symbiosis across the region.
