RESEARCH ARTICLE

The radiolarian fauna during the Younger Dryas–Holocene transition in Andfjorden, northern Norway

Kjell R. Bjørklund¹, Svetlana B. Kruglikova² & Øyvind Hammer¹

¹Natural History Museum, University of Oslo, Oslo, Norway;

²P.P. Shirshov Institute of Oceanology, Russian Academy of Sciences, Moscow, Russia

Abstract

We report on the changing radiolarian faunas from the Younger Dryas (ca.12.9 calibrated thousands of years BP [cal. Ky BP]) and into the Holocene (ca. 10.3 cal. Ky BP) in the core JM99-1200 from Andfjorden, northern Norway. Temperature reconstructions using both the Q-mode factor analysis and modern analogue technique methods show stable, cold temperatures below ca. 410 cm core depth, followed by abrupt warming into a relatively stable Holocene temperature regime. Age-depth modelling with three different methods gives an age of ca. 11.9–12.0 cal. Ky BP at this core depth, clearly older than the Younger Dryas–Holocene transition at ca. 11.65 cal. Ky BP according to ice core chronology. Considering that the age models may be insufficiently informed in an interval without radiometric dates, it is possible that the base of the Holocene is indeed at 410 cm, as indicated by the radiolarian and other core data. Such a change in the chronology would have implications for previously published work on the JM99-1200 core. Alternatively, the abrupt warming in Andfjorden predated the Younger Dryas–Holocene transition by a few hundred years. A distinct cold pulse at ca. 315–335 cm, or 11.4–11.5 cal. Ky BP is interpreted as the Preboreal Oscillation. The Preboreal Oscillation has not previously been detected in temperature curves based on planktic foraminifera in the same core, indicating that Radiolaria may be a more sensitive temperature indicator in this region.

Keywords
Palaeoclimate; biostratigraphy; age models; Preboreal Oscillation; transfer functions

Abbreviations BoA: Boreal assemblage; AMS: accelerator mass spectrometry; ¹⁴C yr BP: uncalibrated years before 1950; CA: correspondence analysis; CABFAC: Calgary and Brown (Q-mode) factor analysis; cal. Ky BP: calibrated thousands of years before 1950; cal. yr BP: calibrated years before 1950; CCA: canonical correspondence analysis; GICC05: Greenland Ice Core Chronology 2005; LPA: Late Preboreal assemblage; MAT: modern analogue technique; PBO: Preboreal Oscillation; PCOA: Preboreal Climatic Optimum assemblage; POA: Preboreal Oscillation assemblage; RMSEP: root mean square error of prediction; SST: sea-surface temperature(s); UPGMA: unpaired group moving average clustering method; YDA: Younger Dryas assemblage; WA-PLS: weighted average partial least squares method

Introduction

The Nordic seas is an area of great importance for better understanding of the global climatic development. This is a key area for the maintenance of the North Atlantic thermohaline circulation and thus for the “Great Conveyor” of the World Ocean (e.g., Broecker 1997).

The time interval of interest, which is covered by the sediment column studied, represents two extreme ecological situations: the colder conditions that were dominant during the Younger Dryas, and the interglacial conditions dominant during the Preboreal (Eldevik et al. 2014). The Younger Dryas was terminated by a rapid climatic turnover event that took place over just a couple of decades (e.g., Mayewski et al. 1993), leading into the present Holocene interglacial, a period that, generally speaking, has had fairly stable climatic conditions.

The configuration of the Arctic Ocean and the Nordic seas differed significantly from the Last Glacial Maximum to the present-day situation. At present, the bathymetry of the continental shelf directs currents across small glacial highs and troughs, resulting in a well-oxygenated water column (Hald & Vorren 1984). In the deep troughs, crossing the continental shelf, topographically controlled upwelling causes profound vertical mixing of the nutrient-rich water masses (Slagstad et al. 1999), causing high organic productivity in the surface waters, with reported values of up to 75 g C m^-2y^-1 (Wassmann et al. 1999). Primary production has changed significantly from fully glacial conditions with low primary production to the warm and fairly stable Holocene conditions with high primary production. This is shown in the appearance of, for example, the specific sea-ice diatom proxy IP25 at ca. 12.9 cal. Ky BP in the sedimentary record in core JM99-1200, defining the onset of the Younger Dryas stadial (Cabedo-Sanz et al. 2013). The presence of IP25 gives a qualitative measure of the presence of seasonal sea ice.

The first occurrence of radiolarians in Norwegian Sea sediments after the Last Glacial Maximum was reported by Jansen & Bjørklund (1985) to represent the Allerød according to their age model. On the basis of their mapping of coldwater radiolarian species (Cycladophora davisiana davisiana and Amphimelissa setosa), Jansen & Bjørklund placed the maximum occurrence of these radiolarians in the Younger Dryas. Radiolarians and diatoms occurred at the same time, indicating that these siliceous microfossils were introduced by the increasing volume of intruding warmer North Atlantic water.

Radiolarians are ideal for recording abrupt environmental changes in water masses. An example will illustrate this (Bjørklund et al. 2012). In March 2009, a warm water pulse was recorded west of Spitsbergen, the largest island of the Svalbard Archipelago, with water temperature at 100 m depth measured to 7.5 °C. Subsequently, in August 2010, 145 radiolarian taxa were extracted from plankton sampled north of Spitsbergen and the island of Kvitøya. Of these 145 taxa, 98 were typical warm water species, some even with tropical–subtropical affinity. This indicates the potential of radiolarians to give an early and direct signal of environmental changes. Growth stages of some of these exotic species indicated that despite coming from much warmer conditions further south, they can still live and reproduce in these harsh conditions. However, such warm pulses do not last long enough to give these intruders a chance to accommodate to the new environments, and they will sooner or later perish.

The JM99-1200 core studied here is located in a climatically sensitive area, on the continental shelf on the west coast of northern Norway (Fig. 1). Normally, shelf sediments are barren of radiolarians or have a low amount of biogenic silica. However, in this core opal is relatively common, and diatoms and radiolarians are found together, indicating very high primary production. Under such conditions, biogenic opal is well preserved.

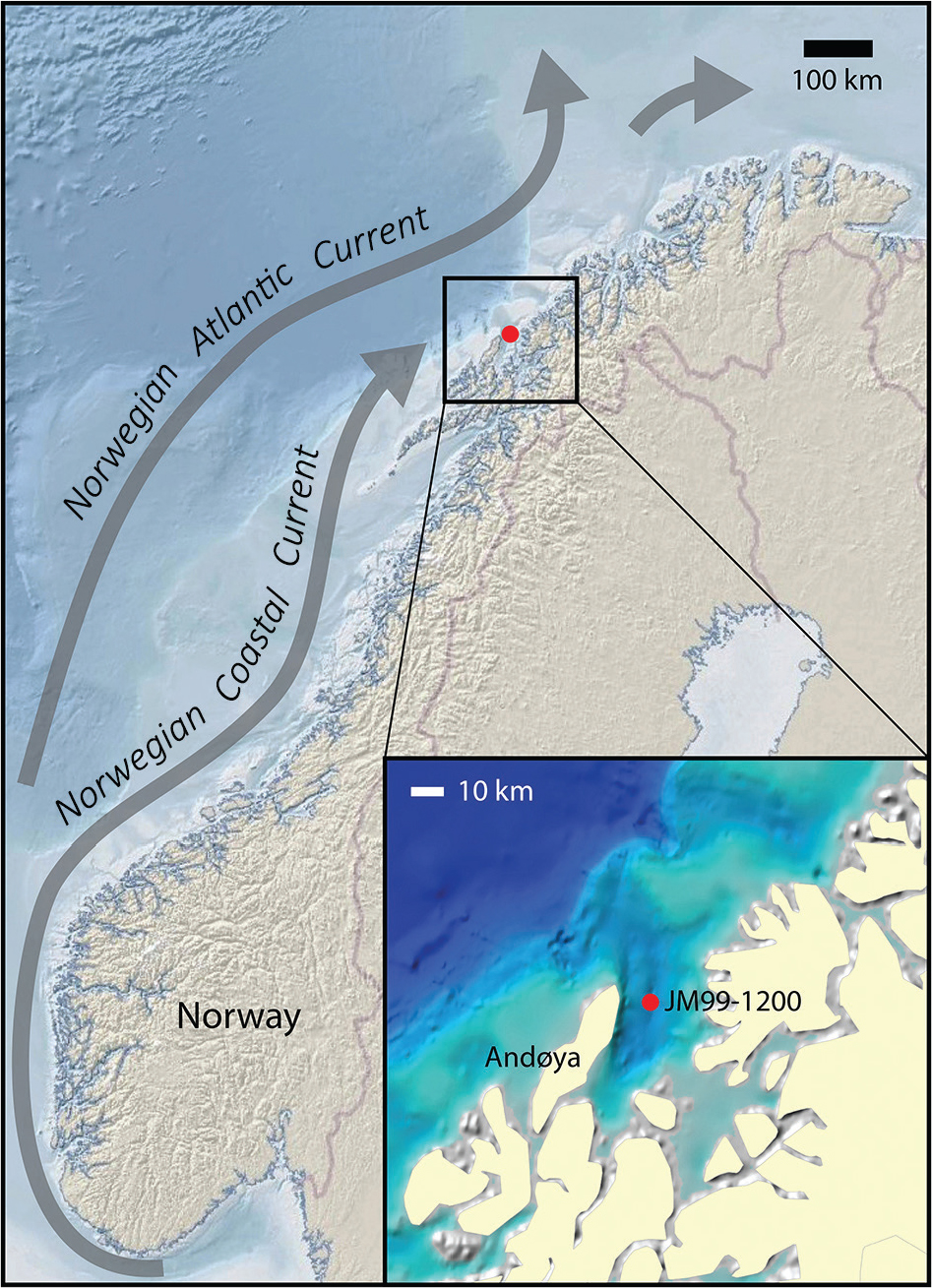

Fig. 1  The coring location of core JM99-1200 in Andfjorden, northern Norway, along with the major ocean currents. Based on the General Bathymetric Chart of the Oceans maps, licenced by CCBY 4.0, with our own annotations.

The radiolarian fauna in JM99-1200 has been subjected to a detailed taxonomical study and a statistical evaluation carried out in an attempt to recognize specific groups indicating different ecological conditions from the Younger Dryas and into the Holocene. Our aim is to get a better understanding of the development of the radiolarian faunas in these high northern latitudes and how they can improve our understanding of past oceanographic development. In particular, we wanted to compare the temperature signal derived from the radiolarian faunas with other temperature proxies, to refine previously described environmental interpretation of this important core (Knies et al. 2003; Ebbesen & Hald 2004; Knies 2005; Cabedo-Sanz et al. 2013).

Material and methods

Study site

Piston core JM99-1200 was recovered from Andfjorden, northern Norway (69.16˚N, 16.25˚E; water depth 475 m; core length 1115 cm), on board the RV Jan Mayen in November 1999. Andfjorden is at present under the influence of two current systems: the warm and saline Norwegian Current (the continuation of the North Atlantic Current, also called the Gulf Current) and the overlaying shallow (50–100 m) Norwegian Coastal Current (Fig. 1). The latter originates from the brackish Baltic Sea and is nourished by low salinity water from the fjords and river discharge as it moves northward along the coast. According to Hald & Vorren (1984), SSTs in Andfjorden vary in August between 9 and 12 °C and in February between 2 and 6 °C, which is in great contrast to the Arctic and icy conditions during the Younger Dryas stadial, when the Norwegian Coastal Current had not yet developed. The coring site is situated in a glacial trough at the mouth of an open sound, relatively close to shore but not in a restricted fjord setting.

Taxonomy and sample preparation

The radiolarian faunas in the Nordic seas have been analysed by several researchers, most studies dealing essentially with their taxonomy (Cleve 1899, 1900; Jørgensen 1900, 1905; Schröder 1909, 1914). Petrushevskaya & Bjørklund (1974) reported on 74 radiolarian species in their study of the Norwegian and Labrador seas, while Bjørklund et al. (1998) reported on 75 taxa from the Nordic seas. In recent years, the radiolarian taxonomy in the type collection of Cleve (stored in the Swedish Museum of National History, Stockholm) was examined by Bjørklund et al. (2014) and the collection by Jørgensen (stored at the Natural History Museum, University of Oslo) was studied by Dolven et al. (2014), with an updated taxonomic discussion and illustration of all recognized types. In general terms, we can say that the average number of species typical for the Nordic seas is about 75 taxa.

The 55 samples were prepared for radiolarian studies according to the method outlined in Goll & Bjørklund (1974). Samples were boiled in H₂O₂, sieved on a 45 μm screen, residue treated with HCl and rinsed in distilled water. Two faunal slides, embedded in Canada Balsam, were made from each sample (Figs. 2, 3). A total of 91 radiolarian taxa was identified and counted to determine their relative abundance. A higher number of radiolarian taxa is observed in our Preboreal section than the average number of recent Norwegian Sea taxa (ca. 75). This is probably a result of the examination of many samples related to the warm Preboreal covering a time span of about 1000 years and therefore picking up a higher number of exotic and rare taxa than at present. An average of 481 specimens were counted (maximum 1023, minimum 70), including two groups of unidentified spumellarians and nassellarians, to calculate the taxa relative abundance values (Fig. 4).

Fig. 2  Selected Radiolaria (Nassellaria) from core JM99-1200, with each species illustrated by two specimens, each at two focal planes: (a) Lithomelissa setosa, 335–336 cm and 330–331 core depth; (b) Lithomelissa hystrix, 280–281 and 335–336 cm; (c) Amphimelissa setosa, 330–331 and 280–281 cm; (d) Stichocorys seriata, 280–281 cm; (e) Phormacantha hystrix, 495–496 cm; (f) Pseudodictyophimus gracilipes clevei, 495–496 cm; (g) Cycladophora davisiana davisiana, 495–496 cm; (h) Sethoconus tabulatus, 495–496 cm; and (i) Plectacantha oikiskos, 335–336 cm.

Fig. 3  Selected Radiolaria (Spumellaria) from core JM99-1200: (a) Phorticium clevei, 335–336 and 280–281 cm; (b) Cleveiplegma (Rhizoplegma) boreale, 330–331 cm; (c) Hexacontium gigantheum, 280–281 cm; (d) Stylodictya validispina/tenuispina, 280–281 cm; (e) Lithelius minor, 335–336 and 280–281 cm; and (f) diatom Isthmia nervosa, 335–336 cm.

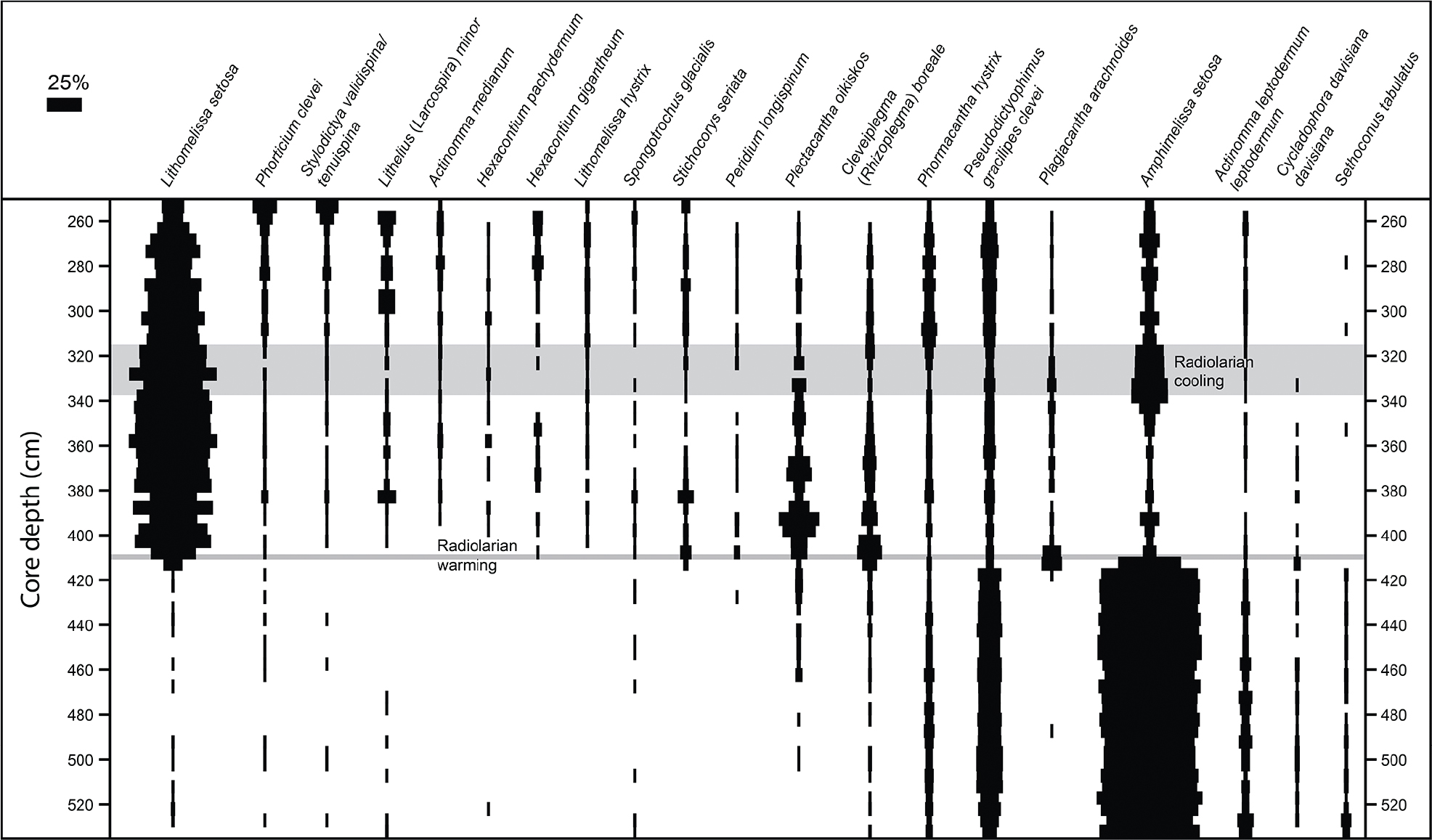

Fig. 4  Range chart of 20 selected radiolarian taxa in core JM99-1200.

Statistical analyses

A quantitative partitioning of the studied interval according to radiolarian assemblages was performed using stratigraphically constrained UPGMA clustering with Bray-Curtis similarity, as implemented in Past, version 3.25 (Hammer et al. 2001). Species richness and diversity were also calculated with Past. Raw species richness is highly sensitive to counted sample size, which varies strongly in our data set. We, therefore, standardized the sample size to n = 60 using the rarefaction method (Krebs 1989). Simpson’s D (dominance) is here reported in its complementary form 1-D.

Temperature reconstructions were based on the core-top abundances of 34 selected radiolarian taxa from the North Atlantic (Kruglikova et al. 2010). Kruglikova et al. found that the cleanest signal was achieved when correlating the faunas with the present-day temperatures at 200 m water depth (also confirmed by Matul & Mohan 2017). We used April–June temperatures from the World Ocean Atlas 2001 (Boyer et al. 2004) as this is the season of maximal radiolarian productivity. Kruglikova et al. (2010) noted that temperature reconstructions based on radiolarians in the North Atlantic seemed almost unaffected when performing the analysis on family-level rather than species-level taxa, resulting in considerably simpler and faster counting. However, we used the species-level data in this study. Three methods were used, all implemented in Past version 3.25 (Hammer et al. 2001). The transfer function approach used CABFAC with quadratic regression on temperature (Imbrie & Kipp 1971), following Kruglikova et al. (2010). MAT used the same North Atlantic calibration data set, with n = 6 neighbour averaging, inverse distance weighting and no distance thresholding. Finally, WA-PLS was based on the standard algorithm described by Ter Braak & Juggins (1993).

CA of the radiolarian faunas was computed with Past, giving an ordination biplot with samples and taxa plotting in the same diagram. CA is a powerful tool for finding gradients, trends and groupings in multivariate count data (Legendre & Legendre 1998). Rare taxa that were never represented by more than two specimens in any sample were left out of this analysis, in order to produce a more readable biplot showing the most important taxa (n = 54).

CCA (Legendre & Legendre 1998) for the radiolarian faunas included a number of geochemical and sedimentological variables collected from the literature on the JM99-1200 core: the brassicasterol and IP25 biomarkers (Cabedo-Sanz et al. 2013); total organic carbon, CaCO₃ and δ¹³C_org (Knies et al. 2003); δ¹³C and δ¹⁸O from planktonic foraminifera and ice-rafted debris > 2 mm (Ebbesen & Hald 2004). Linear interpolation was used where sample depths did not correspond exactly between these variables and the radiolarian samples.

Age model

An age model for core JM99-1200 was first constructed by Knies et al. (2003) based on seven AMS ¹⁴C dates. Ebbesen & Hald (2004) used additional AMS ¹⁴C dates and the Vedde Ash tephra horizon, a time marker at 436.5 cm depth in the core. Cabedo-Sanz et al. (2013, their Table 1) finalized the age model by recalibrating the above-mentioned AMS ¹⁴C dates using Calib version 6 (Stuiver et al. 2005) and the marine calibration curve Marine09 as outlined in Hughen et al. (2004) and Reimer et al. (2009). See Cabedo-Sanz et al. (2013) for more details about the marine reservoir age.

Table 1 Dates used for the age model.

Core depth(cm)	C14 age(BP)	Cal. yr BP (Cabedo-Sanz et al. 2013)	Cal. yr BP range (95.4%) and mean (this study)
59	5965 ± 60	6323	6180–6466 (6323)
281.8	10 130 ± 50	10 873	10 690–11 104 (10 897)
300.5	10 510 ± 85	11 429	11 122–11 780 (11 451)
436.5 (Vedde Ash)		11 980	12 121 ± 114 (2σ)
457.5	11 165 ± 90	12 590	12 124–12 686 (12 405)
511	11 460 ± 85	12 880	12 674–13 088 (12 881)
655.5	11 830 ± 85	13 256	13 056–13 436 (13 246)
723.5	12 160 ± 80	13 553	13 355–13 766 (13 561)

In this article, we have made some small adjustments to the age calibrations (Table 1), with the Marine13 calibration curve and using the delta R values of Cabedo-Sanz et al. (2013). The calibration was carried out with OxCal version 4.3 (Bronk Ramsey 2009). The Vedde Ash has been moved from 11.980 to 12.121 cal. Ky BP according to GICC05 (Rasmussen et al. 2006), with a two-sigma error bar approximated by the total maximum counting error in GICC05 (Andersen et al. 2006). Relatively large error bars in the calibrated ages at 300.5 and 457.5 cm are due to plateaus in the Intcal13 calibration curve at ca. 11.5 and 12.3 ka BP (Reimer et al. 2013).

Cabedo-Sanz et al. (2013) constructed their age–depth model by linear interpolation between the calibrated ages and did not take error bars into account. We have used two different techniques that weigh the data points according to their errors, allow the age model to not pass exactly between the data points and produce confidence intervals. The smoothing spline interpolation follows the approach used for the radiometric age models in the International Geologic Time Scale 2012 (Agterberg et al. 2012) and was computed with Past, version 3.25 (Hammer et al. 2001). The “smoothing value,” which controls how much the age–depth curve is allowed to depart from the given ages, is optimized by cross-validation. The confidence interval is constructed by Monte Carlo sampling from the given age distributions. The Bayesian age model was constructed with the Bayesian Poisson-process deposition modelling in OxCal (Bronk Ramsey 2008). The value of the parameter k, which controls the degree of allowed variation in sedimentation rate, was allowed to vary from 0.01 to 100 events per cm (Bronk Ramsey & Lee 2013). All calibrated ages reported in the results are taken from the OxCal age model and given in calendar years BP (i.e., before 1950), unless otherwise noted.

Results

Radiolarian faunal assemblages

Our section of the core investigated for radiolarians spans the time interval from the Younger Dryas through parts of the Boreal. The radiolarian fauna can be grouped into five definite assemblages (Fig. 5): (1) the Younger Dryas assemblage (YDA), (2) the Preboreal Climatic Optimum assemblage (PCOA), (3) the Preboreal Oscillation assemblage (POA), (4) the Late Preboreal assemblage (LPA) and (5) the Boreal assemblage (BoA).

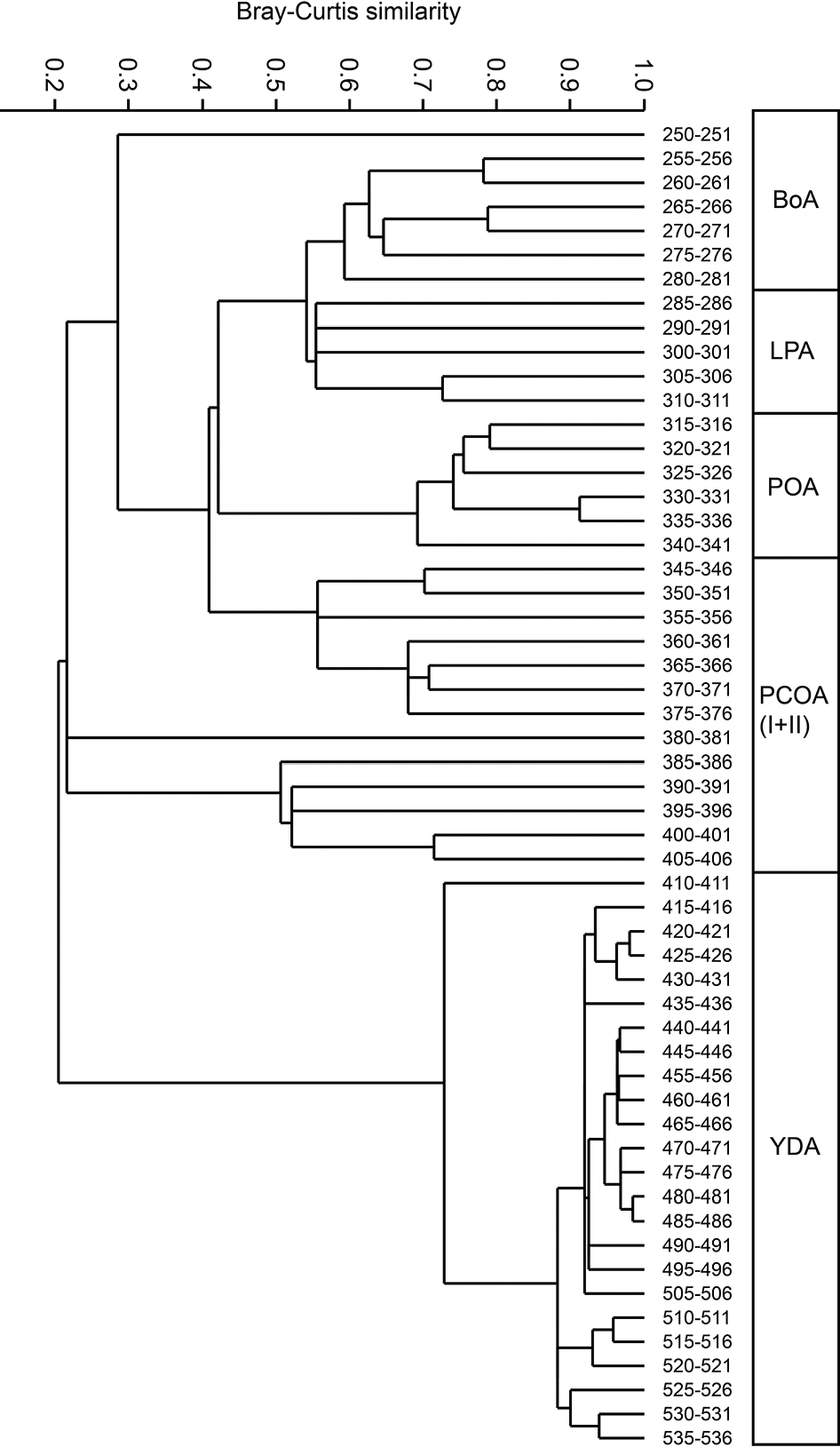

Fig. 5  Stratigraphically constrained cluster analysis of the radiolarian faunas (percentages), based on the Bray-Curtis distance.

Radiolarian diversity and palaeotemperature reconstructions

Parameters computed from the radiolarian data are shown in Fig. 6. The different species richness and diversity indices correlate strongly, with low values in the lower part of the studied core interval (535–415 cm, YDA) followed by a sharp increase at 410 cm (YDA–PCOA). After a small dip in species richness around 325 cm (within the POA), diversity shows an increasing trend up to the top of the studied interval (250 cm).

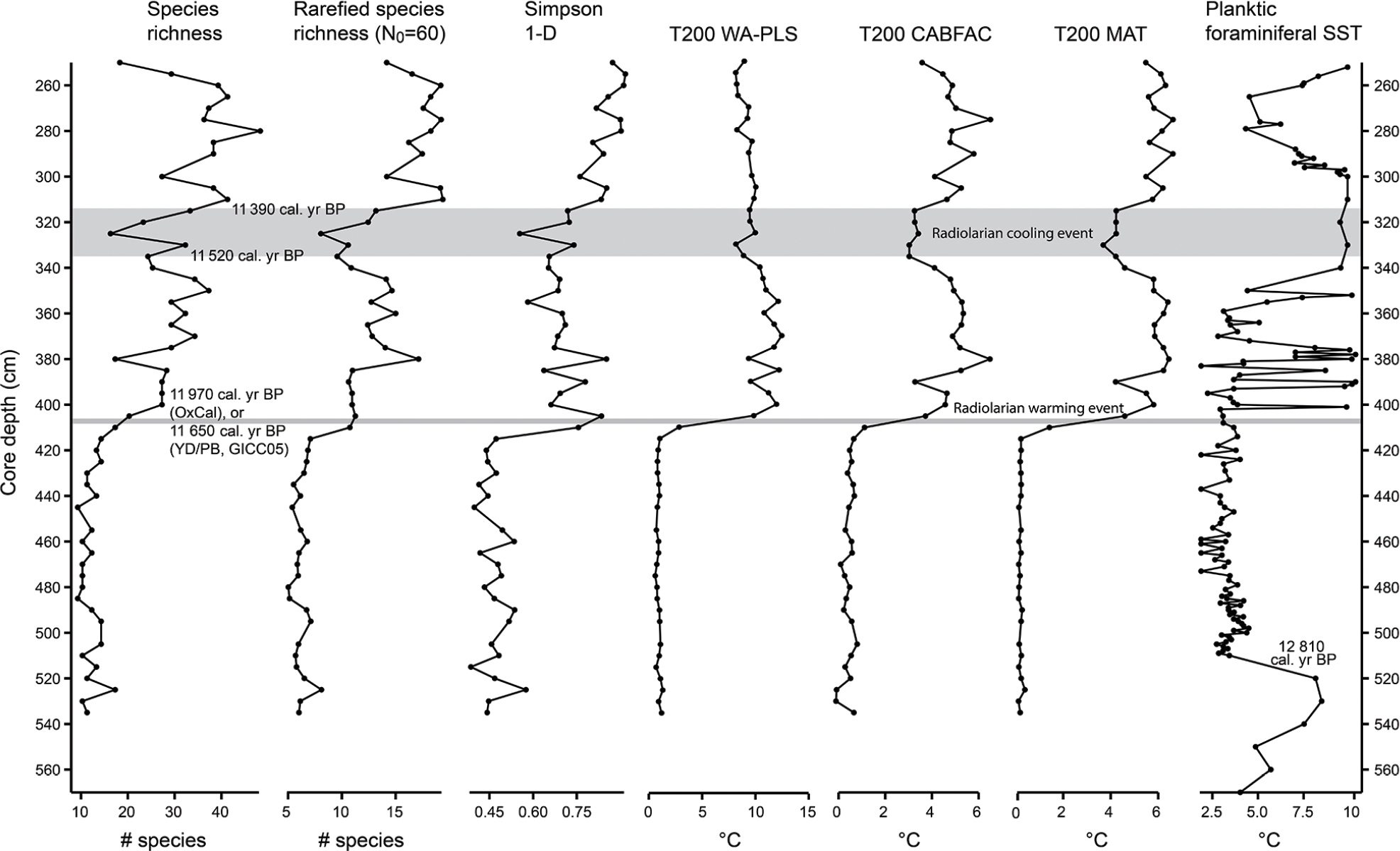

Fig. 6  Parameters derived from the radiolarian faunas in the JM99-1200 core. Species richness is the observed number of species. Rarefied species richness is standardized to a small sample size N₀ = 60. The Simpson index D is a measure of numerical dominance of a few species, and conversely, 1-D is a measure of evenness. The reconstructed palaeotemperatures at 200 m water depth are shown for the WA-PLS, CABFAC and MAT methods. The reconstructed SST based on planktic foraminifera (Ebbesen & Hald 2004) is included for comparison. Abbreviations: YD, Younger Dryas; PB, Preboreal.

Cross-validation of the reconstructed temperatures at 200 m water depth for the core-top data set gives an RMSEP of 1.01 °C using the CABFAC method, while the MAT method gives an RMSEP of 0.74 °C. The WA-PLS method gives the lowest RMSEP of 0.81 °C when three partial least squares method components are included in the model. Reconstruction of SST resulted in RMSEP values of 1.65 °C (CABFAC), 1.06 °C (MAT) and 1.29 °C (WA-PLS), that is, somewhat poorer than at 200 m, as also found by Kruglikova et al. (2010).

The radiolarian temperature reconstructions for 200 m water depth with CABFAC and MAT are similar, indicating very low water temperatures (0–1 °C) up to ca. 410 cm, then relatively stable temperatures of around 3–6 °C in the upper part, again with a dip around 325 cm core depth. Again at 200 m water depth, WA-PLS shows similar cold temperatures (below 1 °C) as the other two methods below 410 cm in the core, but in the upper part the WA-PLS temperatures are considerably warmer. In particular, the Preboreal Climatic Optimum samples from 345 to 405 cm yield temperatures 3–6 °C higher with the WA-PLS method than the other methods, reaching 12 °C. The SST curve estimated from planktic foraminiferal faunas by Ebbesen & Hald (2004) is shown for comparison, with temperatures around 10 °C above 400 cm in the core.

The radiolarian temperature reconstructions for 0 m water depth (i.e., SST) have very similar trends as at 200 m, but generally from 1 to 2.5 °C warmer for the CABFAC and MAT methods, and up to 5 °C warmer with WA-PLS, reaching 17 °C in some of the PCOA samples.

Correspondence analysis

The result of the CA is shown in Fig. 7. Axis 1 (CA 1) contains 48% of total data chi-squared, while Axis 2 (CA 2) contains 20%. These two axes, therefore, give a good representation of the data structure (total 68%).

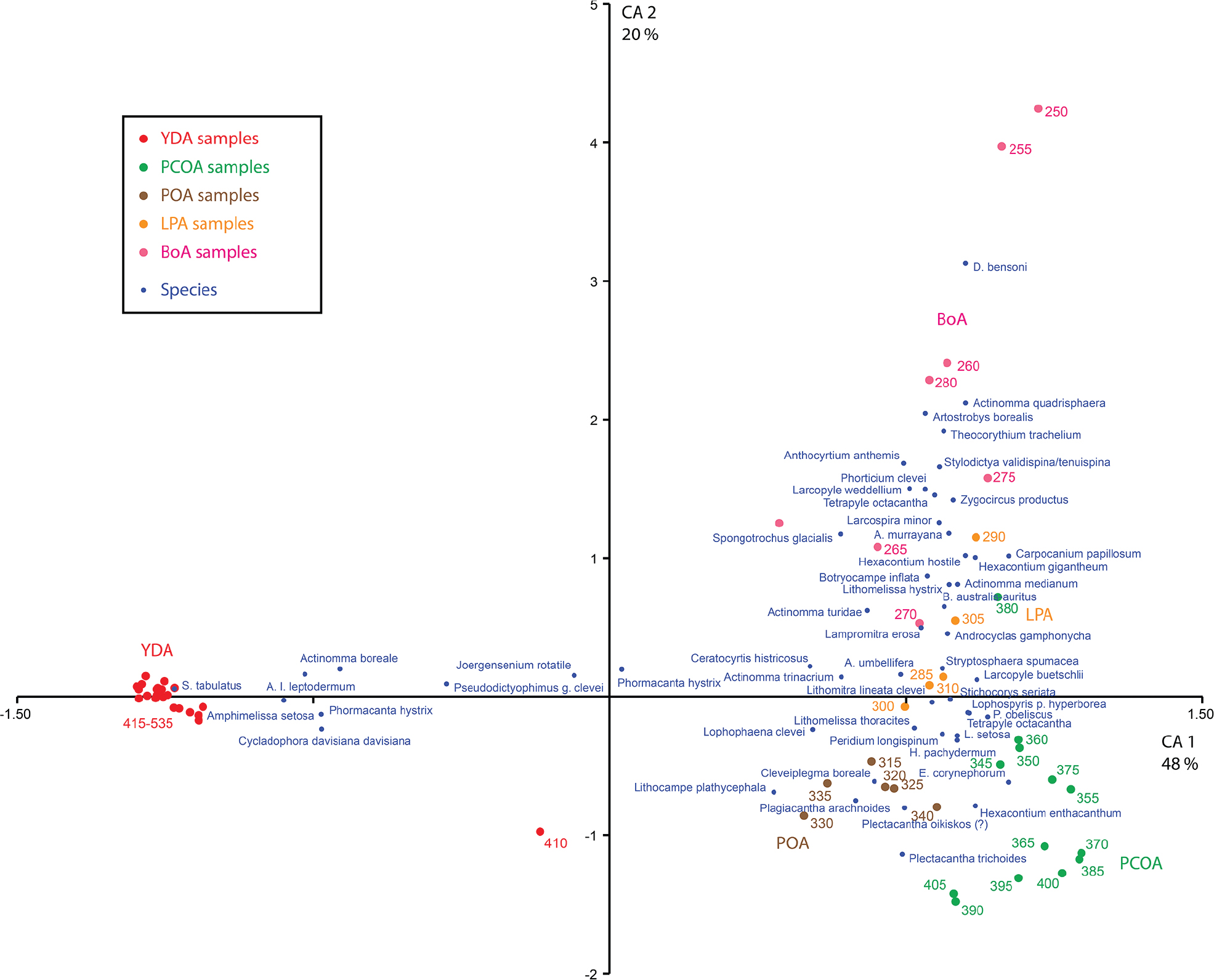

Fig. 7  CA of radiolarian faunas in core JM99-1200.

All the YDA samples (535–415 cm) cluster tightly at the left end of the plot (negative CA 1), while the younger samples are found at the right (positive CA 1). The 410–411 cm sample is transitional between these two groups. Taxa associated with the YDA samples in the plot include A. setosa, Sethoconus tabulatus, C. davisiana davisiana, Actinomma leptodermum leptodermum, Phormacanta hystrix and A. boreale. It may also be noted that among the younger samples with positive CA 1, the POA samples (335–315 cm) have the smallest scores. Comparing with the temperature analysis described above, it is natural to interpret CA 1 as loosely reflecting water temperature.

CA 2 discriminates mainly the post-YDA samples. There is a relatively clear trend from the oldest PCOA samples (405–385 cm) having the most negative CA 2 scores, to the youngest BoA samples (260–250 cm) with the most positive scores. The CA 2 scores do not correlate with inferred palaeotemperature but may reflect another environmental parameter.

Canonical correspondence analysis

CCA (Fig. 8) gives similar ordinated positions of samples and species as CA, but with opposite directions of the first two CCA axes (these directions are arbitrary). The first axis contains 73% of variation, while the second axis contains 19% of variation. Permutation tests give high significance (p < 0.01) for both these axes.

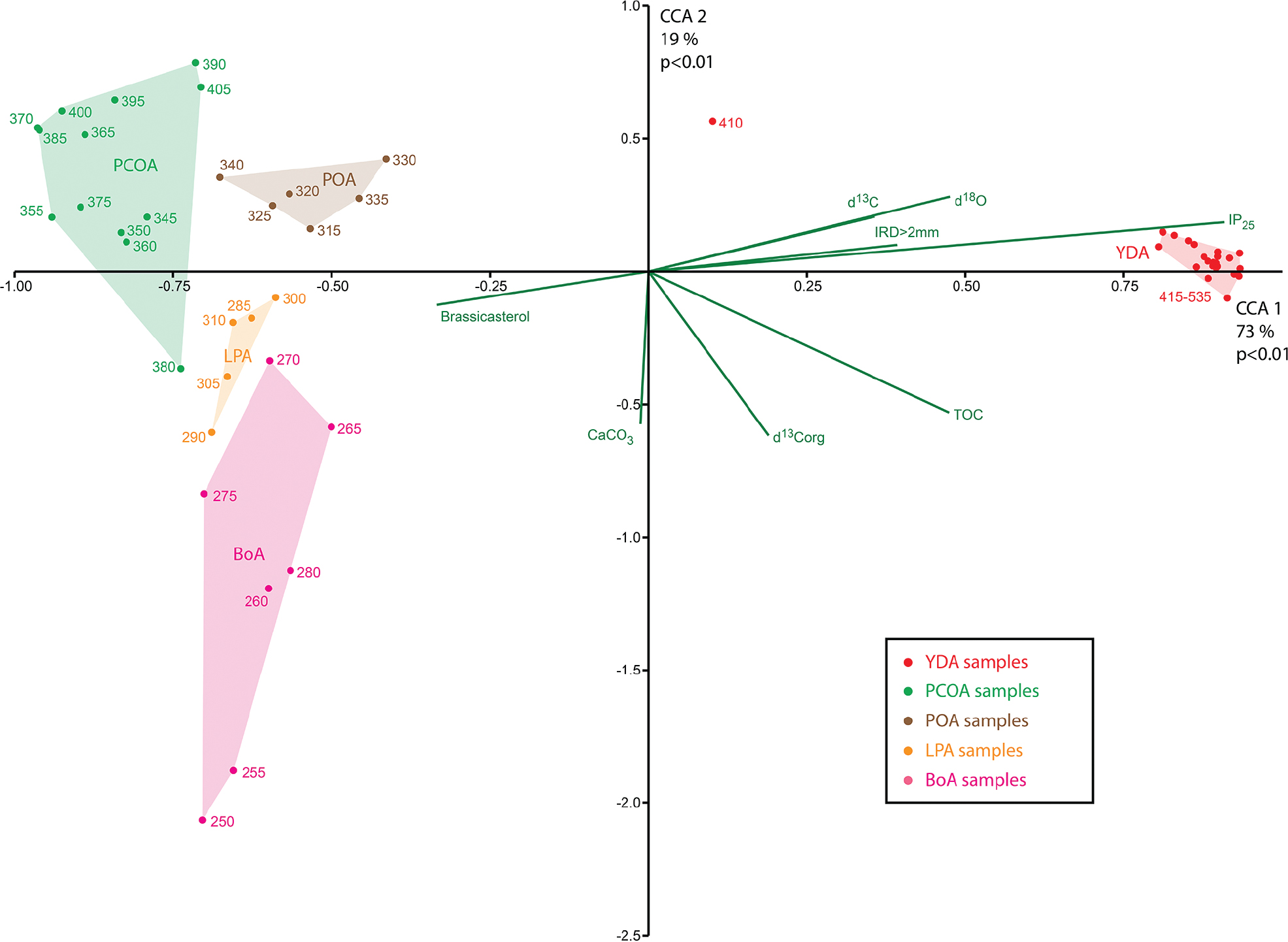

Fig. 8  CCA of radiolarian faunas in core JM99-1200.

Diatoms

Diatoms have not been studied in detail, but a prominent change in the diatom assemblage occurs at ca. 295 cm core depth, within the upper part of the LPA interval (see Supplementary material). Below this depth, the assemblage is dominated by simple centric forms, while the upper part of the core contains large numbers of Isthmia nervosa (Fig. 3f). This species is an epiphyte on seaweeds such as Fucus and Laminaria, and has presumably been transported from littoral environments around the fjord.

Age model

As shown in Table 1, most of our newly calibrated ages differ by fewer than 25 years from those of Cabedo-Sanz et al. (2013), except the Vedde Ash, which is now 141 years older, and the 457.5 cm radiocarbon date, which is now 185 years older. The reason for the latter, large discrepancy is unknown. In any case, due to plateaus in the calibration curve, the error bars are large in this interval (Table 1).

The Bayesian age model is shown in Fig. 9. The maximum in the posterior distribution for k was at k = 0.019. This low value produces an age model that is similar to a linear interpolation through the individually calibrated dates, and with a relatively narrow confidence interval. The spline age model (Fig. 10) is similar to the Bayesian model, with a small optimized smoothing factor of 0.325 producing a tight fit to the points. The main difference between the two models is found around ca. 11.8 cal. Ky BP, where the spline model produces a marked sigmoidal curve as opposed to the straight line in the Bayesian model.

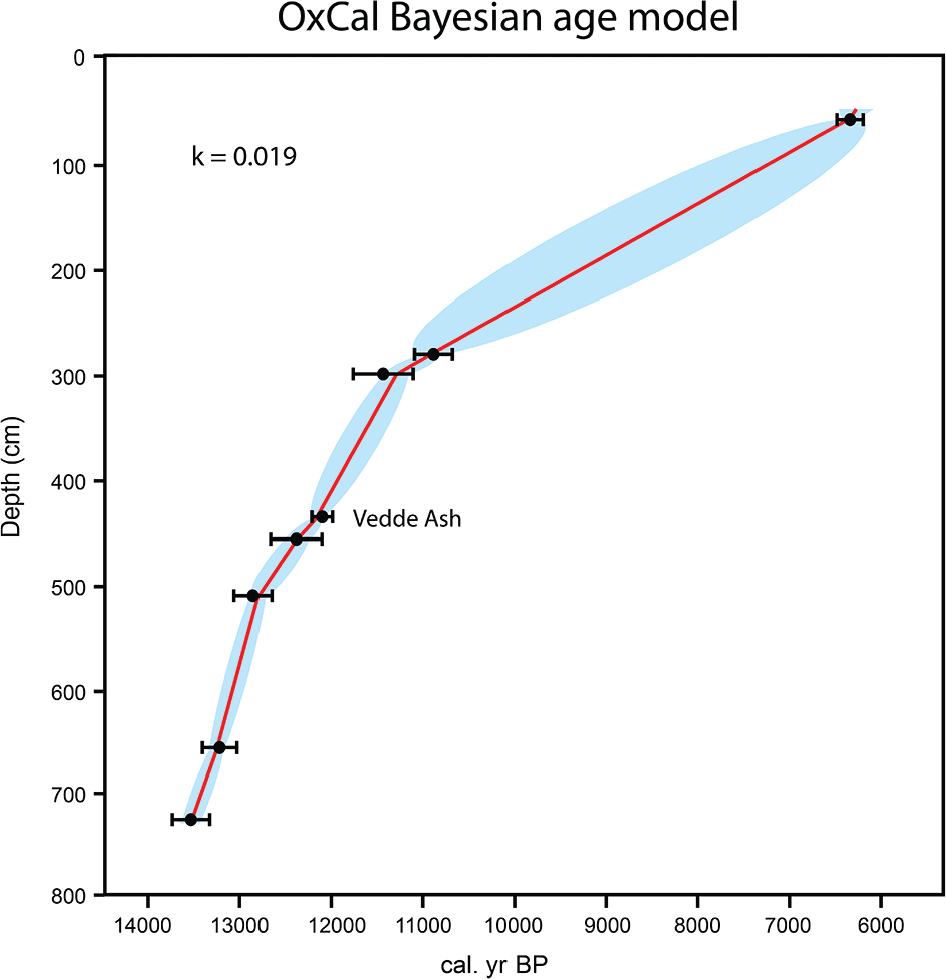

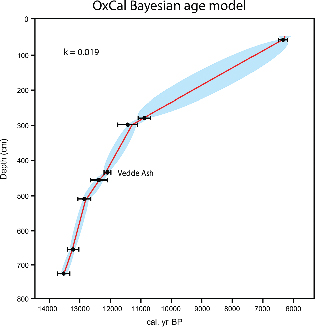

Fig. 9  Bayesian age model for JM99-1200 constructed with OxCal 4.3. Confidence intervals are 2-sigma (95%).

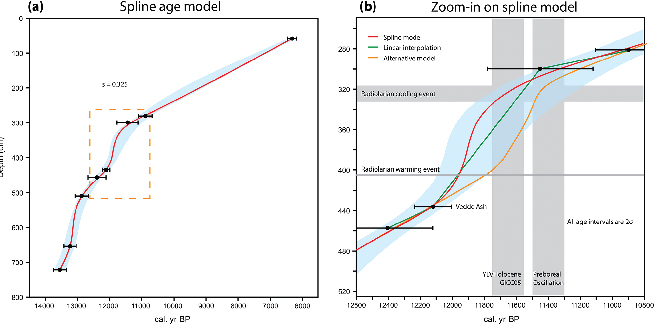

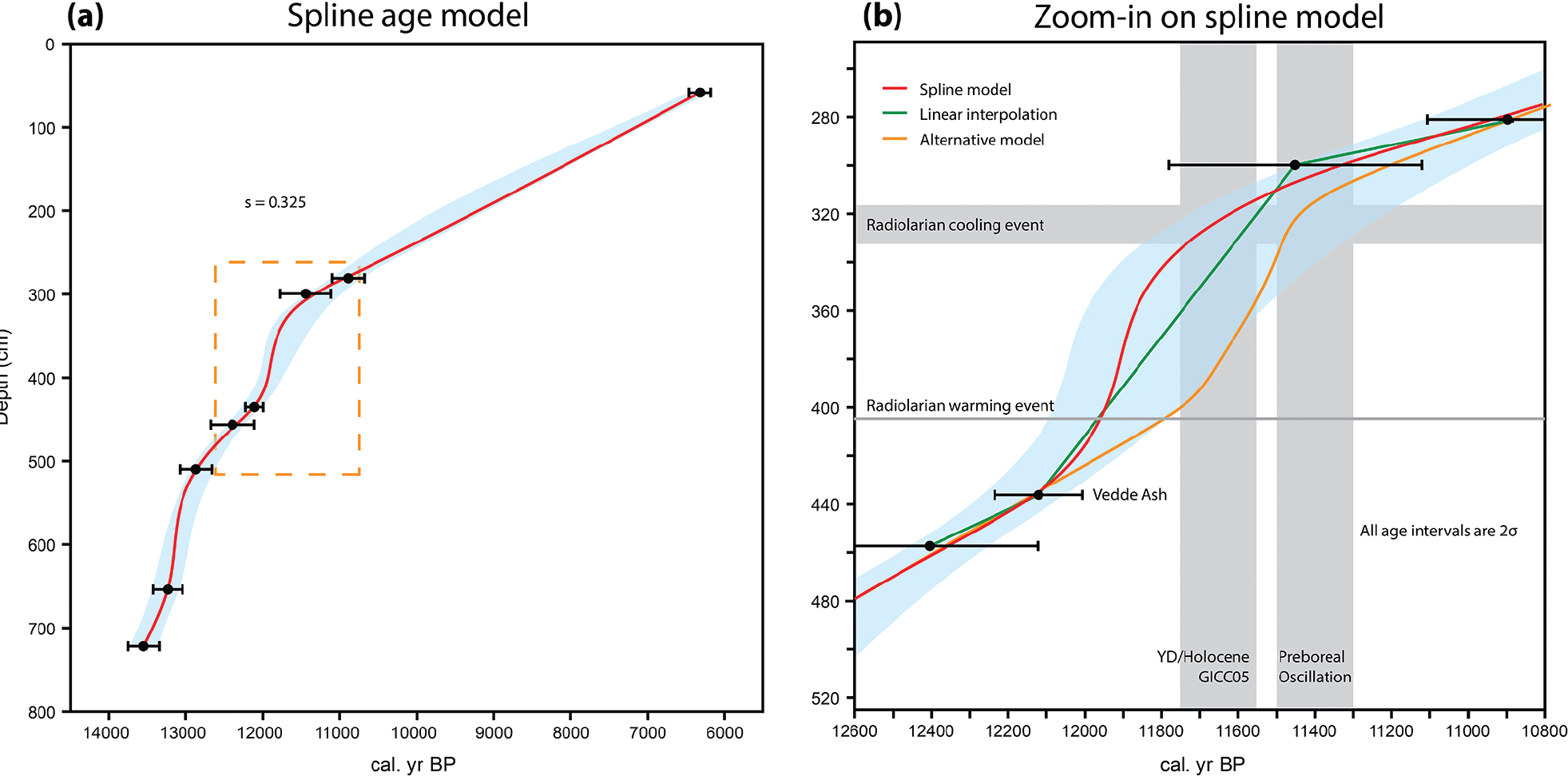

Fig. 10  (a) Age model for JM99-1200 constructed with the smoothing spline module in Past 3.25. (b) Zoom-in on part of (a), emphasizing the Younger Dryas–Holocene transition.

Discussion

Radiolarian faunal assemblages

The YDA (535–536 to 410–411 cm, see Fig. 5) is dominated by a cold-water assemblage with A. setosa (41–77%) as the dominant species. Jansen & Bjørklund (1985) recorded this species in the filtered surface waters (3 m depth, ship’s seawater inlet) on the Iceland Plateau, with a total dominance of up to 90%. The temperature of the sampled surface water was about +2 °C, indicating a cold-water affinity for this species. Other common species are Pseudodictyophimus gracilipes clevei (9–17%) and A. leptodermum leptodermum (1–8%). Pseudodictyophimus gracilipes clevei is common in the present-day surface sediments in the Norwegian Sea, as well as in the Arctic Ocean, but other closely related forms are also present. These forms seem to be mostly associated with the warm water conditions in the Holocene. The assumed cold- and deep-water species C. davisiana davisiana (0.2–3%) is never abundant in this assemblage but is found consistently in most samples. However, this species is reported to be a deep-water species, preferring depths of 1000 m or deeper. In the younger assemblages, C. davisiana davisiana is rare or absent. Finally, S. tabulatus (0.2–6%) is consistently a characteristic member of the YDA and is only sporadically found in the other assemblages.

The PCOA (405–406 to 345–346 cm; Fig. 5) is dominated by Lithomelissa setosa (29–52%), followed by a significant increase in Cleveiplegma (Rhizoplegma) boreale (15.6% at 405–406 cm) and Plectacantha oikiskos? (10% at 405–406 cm, reaching 27% at 390–391 cm, being most abundant in the lower part of PCOA). Cleveiplegma boreale is of special interest as Dolven & Bjørklund (2001) reported on an early Holocene peak (9880 ¹⁴C yr BP) in two cores HM79-6.2 (9.2%) and HM97-6 (7.7%) in the eastern Norwegian Sea, which most likely corresponds to the Preboreal occurrence herein and is therefore traceable along the west coast of Norway. On account of the high sedimentation rate in this core, the C. boreale peak has a larger vertical range than elsewhere.

The Younger Dryas–Preboreal transition is clearly marked by the sudden drop in A. setosa from 41 (410–411 cm) to 8% (405–406 cm). At the same transition there is a peak occurrence of Plagiacantha arachnoides with 11.9 and 10.8% in the 410–411 and 405–406 cm samples. Sethoconus tabulatus is only occasionally found in the Holocene, while it is present throughout the Younger Dryas sequence. Similarly, Stichocorys seriata is not observed in the Younger Dryas but is frequently found in the early Preboreal (maximum value 8.6%).

The POA (335–336 to 315–316 cm) is dominated by L. setosa (38–57%), but A. setosa (15–24%) is also an important faunal component. The latter species usually has a high number of symbionts within its protoplasm, indicating its near-surface habitat. Its sudden increase in abundance in this zone clearly indicates its sensitivity to ecological change, in this case a cooling event lasting for ca. 130 years (see age modelling below).

The LPA (310–311 to 285–286 cm) is only marked by the reduction in A. setosa, indicating a warming very similar to the late PCOA.

The BoA (280–281 to 250–251 cm) is a radiolarian assemblage that is not very different from the LPA. The two assemblages are only weakly separated by cluster analysis and are distinguished here mainly because of a major change in the diatom composition. This assemblage is identified by a dominance of I. nervosa.

Canonical correspondence analysis

The inclusion of proxy variables in CCA allows palaeoenvironmental interpretation of the ordination axes. Especiallly IP25 (ice-cover proxy) and also ice-rafted debris correlate very strongly with the cold Younger Dryas radiolarian assemblage. The open marine phytoplankton biomarker brassicasterol points in the opposite direction and can, therefore, be understood as a warm water signal.

The second CCA axis correlates strongly negatively with marine palaeoproductivity proxies (CaCO₃, total organic carbon and δ¹³C_org), although these signals are also controlled by sedimentation rates (Knies et al. 2003). We, therefore, interpret this axis as reflecting increased productivity from the Preboreal and into the Boreal radiolarian assemblages, with progressively negative axis scores.

Palaeotemperature reconstructions: sensitivity to method

The CABFAC and MAT methods give similar palaeotemperature reconstructions throughout the studied interval, and all three methods agree on the abrupt warming around 405–410 cm core depth. However, the WA-PLS method gives considerably warmer temperatures (up to 12 °C) in the Holocene, especially in the PCOA samples. The reason for this discrepancy is mainly that the radiolarian faunas in the JM99-1200 core extend further in the direction of high temperatures than any of the samples in the training set from the North Atlantic. The highest measured temperature in the training set is 7.58 °C, and only two of the 160 measurements are above 6 °C. On the other hand, the important warm-water radiolarian species L. setosa never exceeds 19% in the training set, but reaches 88% in the core samples, for example.

MAT is basically an interpolation method and can never produce temperatures higher than those in the training set. The CABFAC method with second-order fitting, as recommended by Imbrie & Kipp (1971), will produce transfer functions that can flatten off towards the ends of the temperature ranges in the training set, also limiting the possible range of reconstructed temperatures. This contrasts with the WA-PLS method, which is capable of extrapolation. Whether this is a strength or a weakness of the WA-PLS method is debatable, but it is certainly possible that the extreme concentration of warm-loving radiolarian species in the Preboreal of Andfjorden indicates higher temperatures than in any of the modern sampling stations in the North Atlantic.

Younger Dryas and the Younger Dryas–Preboreal transition

Our temperature curves based on radiolarian faunas (Fig. 6) show very cold, stable temperatures (just above 0 °C) below 410 cm core depth, in the Younger Dryas. The reconstructed temperatures based on planktic foraminifera (Ebbesen & Hald 2004) are a few degrees warmer. This is partly because the radiolarian curves are calibrated to water temperatures at 200 m depth, while the foraminiferan curve is calibrated to surface temperatures. The radiolarian data then indicate a robust, clean and dramatic temperature increase around 405–410 cm, followed by relatively stable temperatures around 3–6 °C in the upper part (CABFAC and MAT).

However, the position in the core of the radiolarian response to the Younger Dryas–Preboreal transition presents a difficulty. According to GICC05, the age of the Younger Dryas–Preboreal boundary is 11 653 ± 99 cal. yr BP (Rasmussen et al. 2006). The OxCal age model predicts this age at ca. 355 cm core depth, which is indeed close to the level of decreasing δ¹⁸O values in the planktic foraminifer Neogloboquadrina pachyderma (Fig. 11) as well as a level where the planktic foraminiferan temperature curve stabilizes at high values after fluctuating strongly in the 400–350 cm interval (Ebbesen & Hald 2004). On the basis of these observations, Ebbesen & Hald (2004) and later authors (Cabedo-Sanz et al. 2013) placed the Younger Dryas–Preboreal boundary at ca. 330 cm depth in JM99-1200.

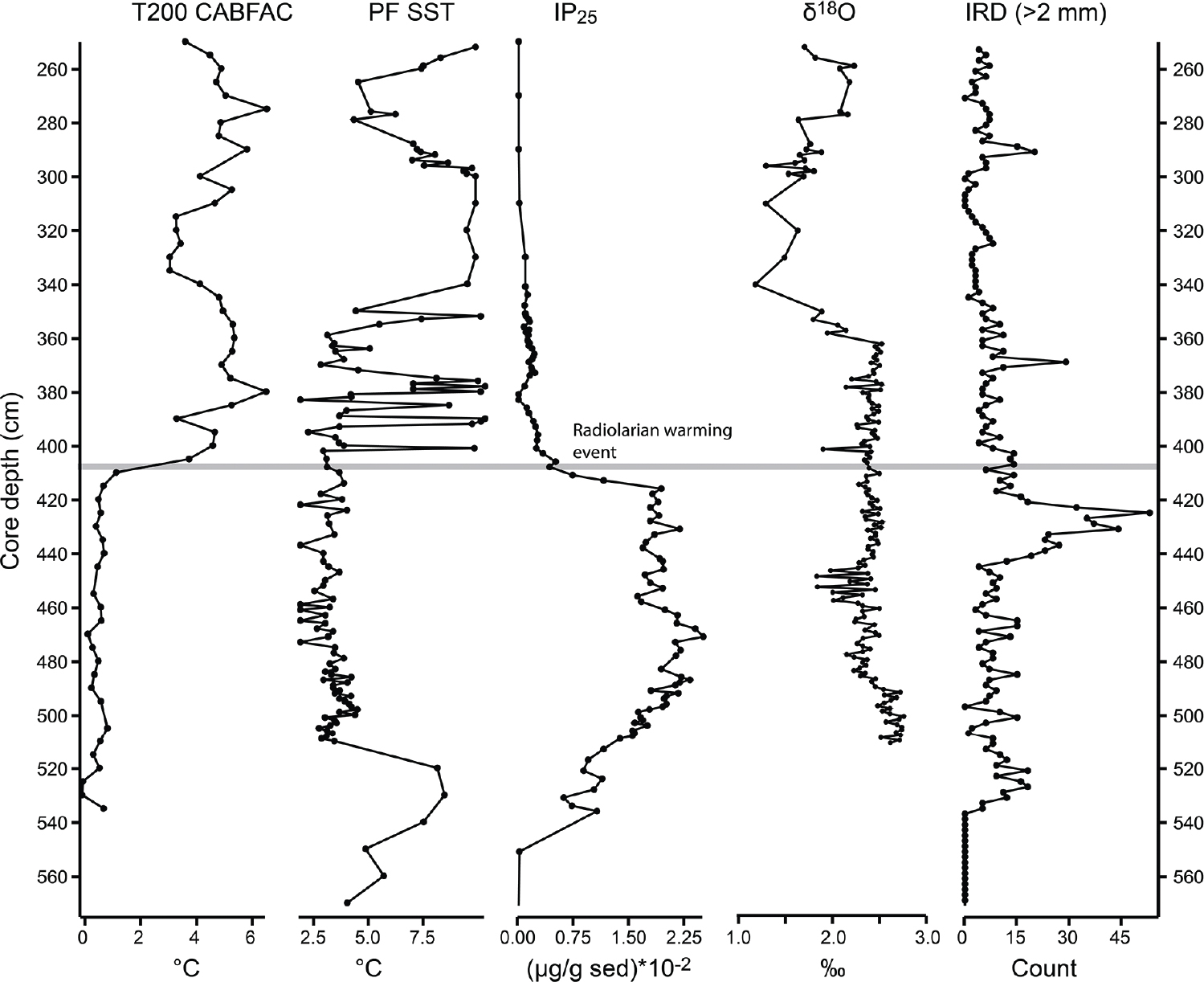

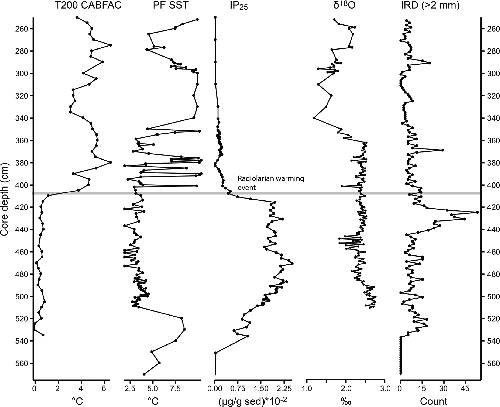

Fig. 11  Water temperature reconstructions compared with other logging parameters in core JM99-1200. Planktic foraminiferal faunal temperature curve (PF SST), foraminiferan oxygen isotopes (δ¹⁸O) and ice-rafted debris (IRD) curves from Ebbesen & Hald (2004). IP25 ice-cover proxy curve from Cabedo-Sanz et al. (2013).

In contrast, the radiolarian data indicate a very sharp and clear temperature increase around 405–410 cm, at an OxCal model age of ca. 11.9–12.0 cal. Ky BP. It is natural to interpret this event as the Younger Dryas–Preboreal transition. This is also supported by the ice-cover proxy IP25, which indicates sudden loss of seasonal ice cover at ca. 410 cm core depth (Cabedo-Sanz et al. 2013), precisely at the radiolarian warming event (Fig. 11), and finally by the sudden increase in radiolarian species richness and diversity (Fig. 6). The problem with this interpretation seems to be the excessive age. We suggest that this problem is caused by weak constraints on the age model (Telford et al. 2004) in this interval, with no radiometric dates between 436.5 and 300.5 cm core depth. It is important to keep in mind that the variation in sedimentation rate between radiometric dates is fundamentally unknown and can never be accurately estimated by any statistical method. The purpose of an age–depth model based on radiometric dates is therefore to provide a most parsimonious (i.e., simplest possible) hypothesis, which is to be preferred over other hypotheses when no other information is available. An implication of this philosophy of parsimony is to assume a constant, or slowly varying, sedimentation rate between dates. As shown in Figs. 9 and 10, this approach, whether using the Bayesian, spline or linear interpolation procedure, leads to an age for the radiolarian warming event at 405–410 cm which is too old (i.e., displaced to the left) with respect to the accepted age for the Younger Dryas–Preboreal transition. However, there is no particular reason, except for the principle of parsimony, not to hypothesize an age–depth curve more similar to the “alternative model” shown in Fig. 10. We suggest that the very clear evidence for warming at 405–410 cm provides additional information which may be sufficient to adjust the age model in this way. There is little circularity in this argument, as rapid warming is almost the definition of the Younger Dryas–Preboreal transition. Indeed, a constant sedimentation rate through more than 1600 years, across the Younger Dryas–Preboreal transition, as implied both by the Bayesian and linear interpolation models, is not a likely scenario. In contrast, the alternative age model, as informed by the temperature data, implies a shorter episode of high sedimentation rate immediately after the termination of the Younger Dryas. This would be during the most rapid deglaciation phase, exactly where we would expect dramatically increased terrigenous sediment input. Figure 12 shows our radiolarian temperature curve, plotted against the OxCal age model and our suggested adjusted age model.

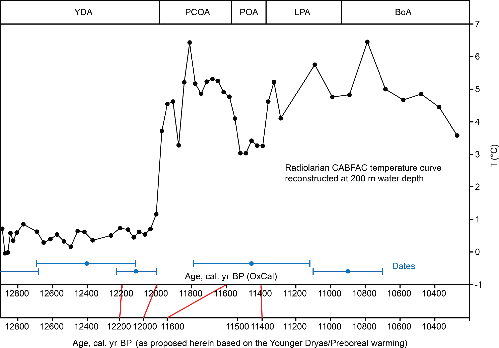

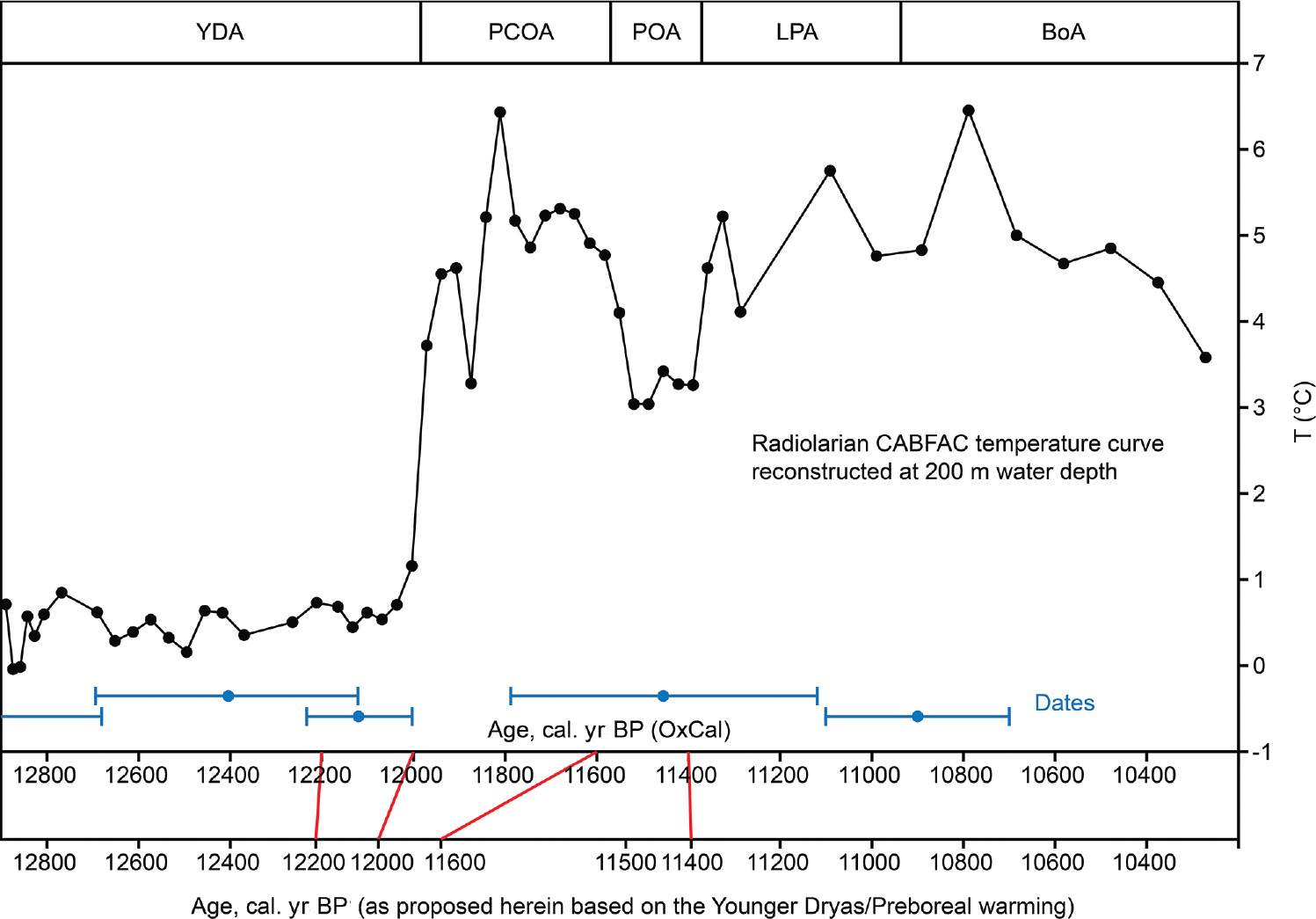

Fig. 12  Reconstructed temperature at 200 m water depth, based on radiolarian faunas, plotted against the OxCal age model and with our proposed ages. The POA is represented by a temperature drop of ca. 2 °C in five samples. Radiolarian faunal assemblages are explained in the text.

Ebbesen & Hald (2004) used the fluctuation in foraminiferal temperature in the 400–350 cm interval to suggest an unstable Younger Dryas climate in the north-east North Atlantic. However, if the Younger Dryas–Preboreal transition is situated at 405–410 cm in the core, as we suggest, the 400–350 cm interval is in fact completely Holocene in age, not Younger Dryas. Moreover, a rapid temperature fluctuation in this interval is not supported by the radiolarian data, nor by the δ¹⁸O curve, which remains fairly stable until the rapid decrease at ca. 350 cm (Fig. 11). Regarding the δ¹⁸O values, Ebbesen & Hald (2004) comment that the δ¹⁸O was taken from N. pachyderma (sinistral) only, which is a cold-water species that reflects the cold end-member of the water mass. Therefore, the recovered δ¹⁸O values could reflect mainly temperatures from short-term cold pulses or local cold-water pockets rather than regional and temporal averages. Also, salinity, which influences oxygen isotopes, may have varied substantially during the Younger Dryas–Holocene transition. The salinity curve of Ebbesen & Hald (2004) is calculated based on δ¹⁸O and the SST from the foraminiferal transfer function and is therefore subject to noise in the reconstructed SST.

In addition, if (as we suggest) the sedimentation rate was very high in this interval, the age difference between the Younger Dryas–Preboreal transition according to Ebbesen & Hald (2004) and the radiolarian data presented here is in fact very small. Our suggested date for the Younger Dryas–Preboreal transition, based on the radiolarian temperature increase at 410 cm, is 11 653 ± 99 cal. yr BP, taken from GICC05. Ebbesen & Hald (2004) have their Younger Dryas–Preboreal transition at ca. 350 cm core depth, or ca. 11.5 ka BP. Given that the disputed time interval could, therefore, be less than 150 years, the differences in the interpreted position of the Younger Dryas–Preboreal transition could be due to short delays in temperature response between the radiolarian and foraminiferal systems during the anomalous environmental conditions immediately after the transition. One consideration here is that the radiolarian record probably reflects temperatures mainly in deeper water masses (say below 150 m) while the foraminiferan record is a shallower-water signal.

The alternative hypothesis—that the age of the warming at 405–410 cm core depth is indeed 11.9–12.0 cal. Ky BP—does not require the somewhat ad hoc adjustment of the age model. This remains a possibility and would imply that the warming in Andfjorden took place a few hundred years earlier than the Younger Dryas–Preboreal transition recorded in the Greenland ice cores.

The Preboreal Oscillation

Our CABFAC and MAT temperature curves (Fig. 6) show a clear reduction in mean temperature from 5.0 °C in the 375–340 cm interval to 3.2 °C in the 335–315 cm interval. The WA-PLS reconstruction shows a less marked temperature drop. The temperature then returns to previous values above this interval. The reduced temperature is consistent in five consecutive samples. The OxCal age model predicts an age of 11.39–11.52 cal. Ky BP for this interval, which is fairly well constrained by the radiometric dates at 281.8 (10.90 cal. Ky BP) and 300.5 cm (11.45 cal. Ky BP). This age fits well with the PBO (e.g., Björck et al. 1997), which is placed at 11.4–11.5 cal. Ky BP in GICC05 (Rasmussen et al. 2007). As seen in Fig. 6, a corresponding temperature minimum is not visible in the temperature curve based on planktic foraminifera (Ebbesen & Hald 2004). If the minimum indeed represents the Preboreal Oscillation, then the Radiolaria seem to give a more sensitive temperature indicator than planktic foraminifera in this core. Knies et al. (2003) tentatively connected a small dip in marine organic carbon at ca. 11.0 cal. Ky BP (as adjusted to the age calibrations used here) in JM99-1200 to the PBO. This does not, however, seem to fit well with the new age for the PBO in GICC05. A dramatic temperature drop of almost 5 °C indicated by the planktic foraminifera in several samples around 280 cm core depth (Fig. 6) has a well-constrained age of ca. 10.9 cal. Ky BP, which is too young to represent the PBO and is not supported by the radiolaria. This is another feature of the planktic foraminiferan temperature curve which is difficult to reconcile with information from other localities.

A radiolarian-based temperature minimum that can be linked to the PBO was also reported by Matul & Yushina (1999). In their core MK-340 from the Reykjanes Ridge, they found a robust, early Holocene temperature drop in the interval 10.7–10.1 cal. Ky BP (their calibration), but this age was constrained only by the two closest radiocarbon ages at 8.78 and 14.36 cal. Ky BP, so an age corresponding to the PBO (11.4–11.5 cal. Ky BP) is still reasonable, as it would be within the error bars. Dolven et al. (2002) also observed a Preboreal temperature drop at 10.9–10.6 cal. Ky BP (their calibration) based on radiolaria in core MD95-2011 from the northern Norwegian Sea. This drop is confirmed by a reduction in abundance of the planktic foraminifer N. pachyderma (sinistral) in the same core (Risebrobakken et al. 2003). Haflidason et al. (1995) noted a minor temperature drop at ca. 11.2 cal. Ky BP in the core Troll 8903 in the northern North Sea, on the basis of N. pachyderma (s.) and linked this to the PBO.

The Preboreal–Boreal transition

The Preboreal–Boreal transition is not clearly identified by the radiolarian assemblages, although our cluster analysis (Fig. 5) indicates a possible radiolarian zone above the 280–281 cm level. We have, on the other hand, diatom information that indicates changing environments at this level in the core. Above this depth, the benthic and epiphytic diatom I. nervosa is the dominant species in the size fraction we have studied. Below this depth-centric diatoms are the dominant part of the flora, but I. nervosa is still present. The great amount of this shallow water (or littoral) diatom suggests a change in wind and wave erosion, making it possible to transport its valves to the deep core site.

Conclusions

The radiolarian data from core JM99-1200, from Andfjorden in northern Norway, indicate dramatic warming at 405–410 cm core depth, consistent with some other data, including the IP25 ice-cover proxy. We suggest that this event coincides with the Younger Dryas–Preboral transition. This hypothesis requires an adjustment of the age model, which we have argued can be defended on theoretical grounds. If this adjustment is accepted, it will imply re-interpretation of some previously published results. We have also identified a minor cooling event at 11.4–11.5 cal. Ky BP, which we interpret as the PBO.

Acknowledgements

The authors thank Dr Matthias Forwick, Department of Geosciences, UiT—The Arctic University of Norway, Tromsø, for making the core available to them. They also thank Giuseppe Cortese and Hans Petter Sejrup for useful comments on an early version of the article and to an anonymous reviewer for constructive suggestions.
